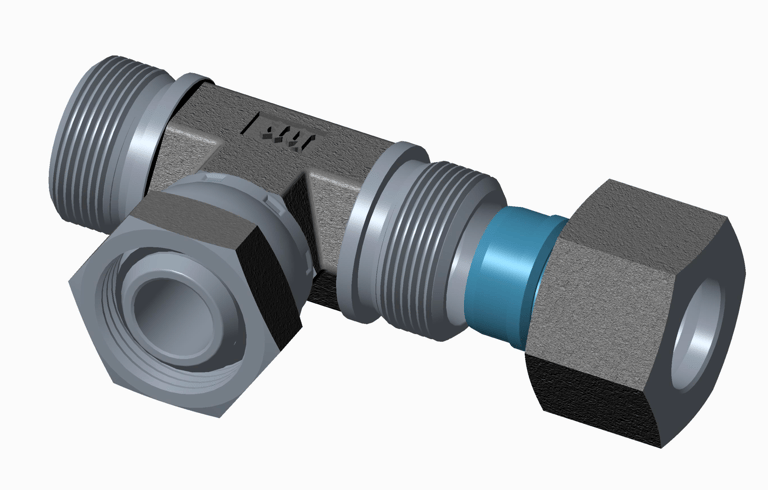

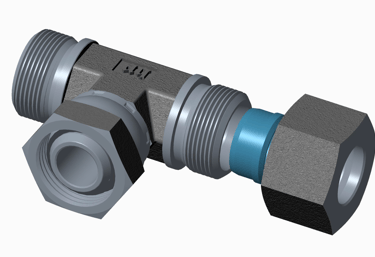

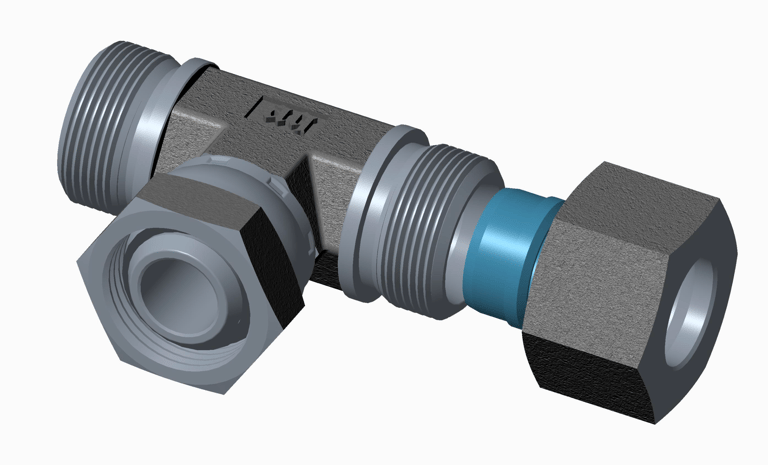

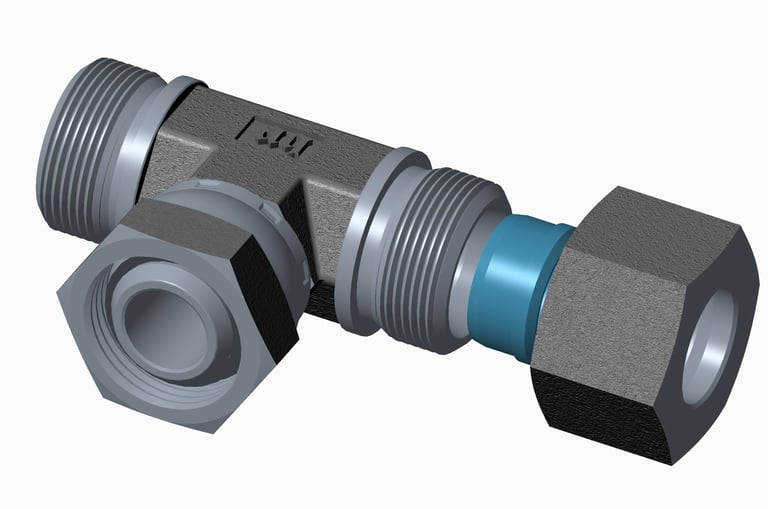

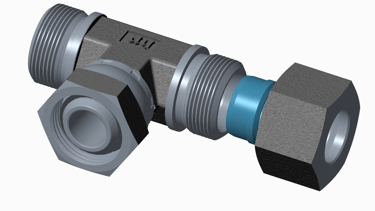

Swivel Tee

6 OD - [ M12 x 1.5 ]

6 OD - [ M12 x 1.5 ] - Female Thread

8 OD - [ M14 x 1.5 ]

8 OD - [ M14 x 1.5 ] - Female Thread

10 OD - [ M16 x 1.5 ]

10 OD - [ M16 x1.5 ] - Female Thread

12 OD - [ M18 x 1.5 ]

12 OD - [ M18 x 1.5 ] - Female Thread

15 OD - [ M22 x 1.5 ]

15 OD - [ M22 x 1.5 ] - Female Thread

18 OD - [ M26 x 1.5 ]

18 OD - [ M26 x 1.5 ] - Female Thread

22 OD - [ M30 x 2.0 ]

22 OD - [ M30 x 2.0 ] - Female Thread

28 OD - [ M36 x 2.0 ]

28 OD - [ M36 x 2.0 ] - Female Thread

35 OD - [ M45 x 2.0 ]

35 OD - [ M45 x 2.0 ] - Female Thread

42 OD - [ M52 x 2.0 ]

42 OD - [ M52 x 2.0 ] - Female Thread

6 OD - [ M14 x 1.5 ]

6 OD - [ M14 x 1.5 ] - Female Thread

8 OD - [ M16 x 1.5 ]

8 OD - [ M16 x 1.5 ] - Female Thread

10 OD - [ M18 x 1.5 ]

10 OD - [ M18 x 1.5 ] - Female Thread

12 OD - [ M20 x 1.5 ]

12 OS - [ M20 x 1.5 ] - Female Thread

14 OD - [ M22 x 1.5 ]

14 OD - [ M22 x 1.5 ] - Female Thread

16 OD - [ M24 x 1.5 ]

16 OD - [ M24 x 1.5 ] - Female Thread

20 OD - [ M30 x 2.0 ]

20 OD - [ M30 x 2.0 ] - Female Thread

25 OD - [ M36 x 2.0 ]

25 OD - [ M36 x 2.0 ] - Female Thread

30 OD - [ M42 x 2.0 ]

30 OD - [ M42 x 2.0 ] - Female Thread

38 OD - [ M52 x 2.0 ]

38 OD - [ M52 x 2.0 ] - Female Thread

All the Elbow connectors can be customised according to the consumer needs, also can be customised as Metric x BSP / BPST

Please contact us before using any seals or washers on our connectors to avoid leakage.

Note that Taper threads like NPT / BSPT doesn't require any seals or washers.

Accessories and Spares

Metric Nuts

From 6 OD - L Till 38 OD - S

Tube Ferrules

From 6 OD - L Till 38 OD - S

Weld Nipples

From 6 OD - L Till 38 OD - S

Lock Nuts

From 6 OD - L Till 38 OD - S

Elastomeric Seal

From 1/4" BSP Till 1 1/2" BSP

Bonded Seal

From 1/4" BSP Till 2" BSP

Copper Washers

From 1/4" BSP Till 2" BSP

O - Rings

From 1/4" BSP Till 2" BSP

Seamless Tube

From 4 OD Till 42 OD 1.5mm - 5mm Thickness

In Stainless Steel 304 / 316 and Mild Steel [ MS ]
