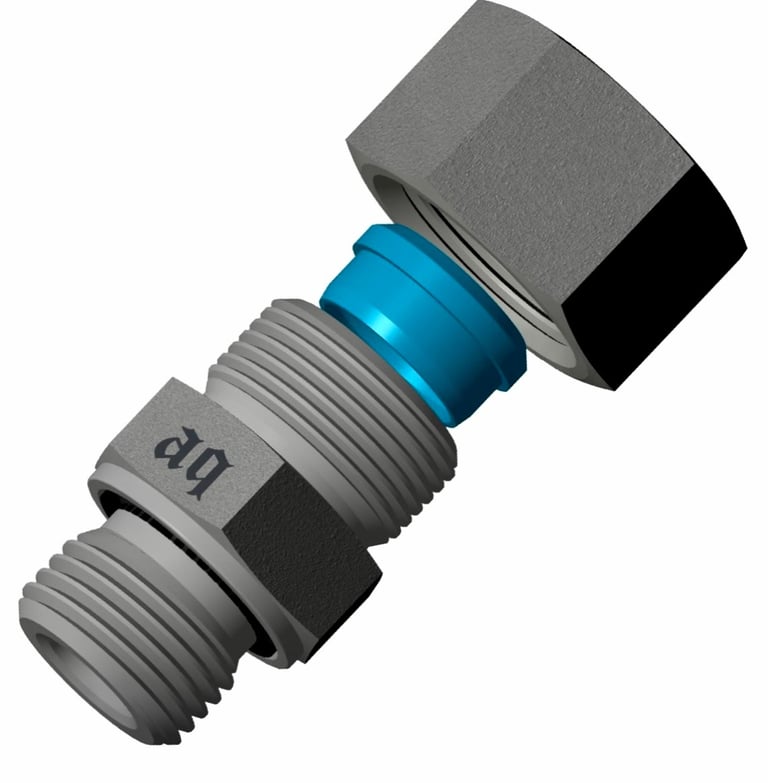

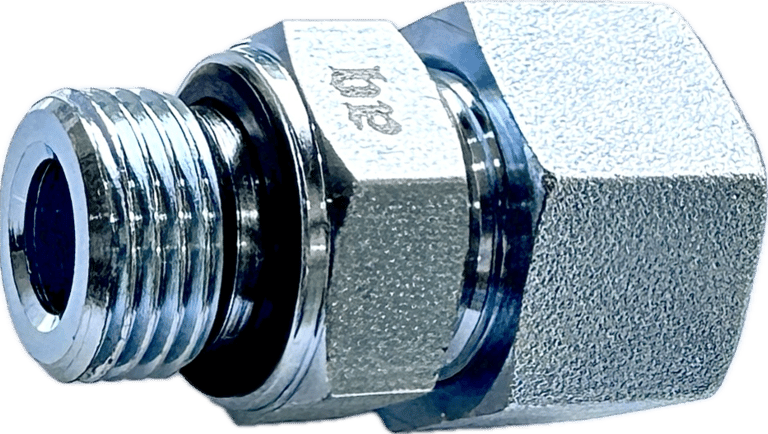

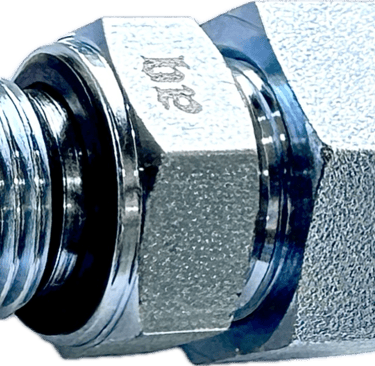

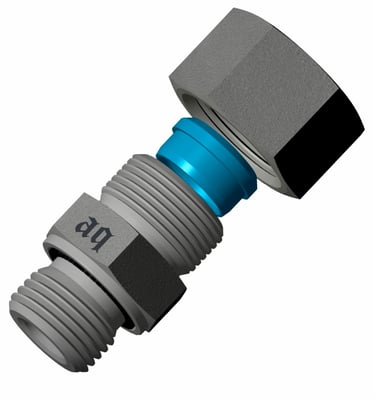

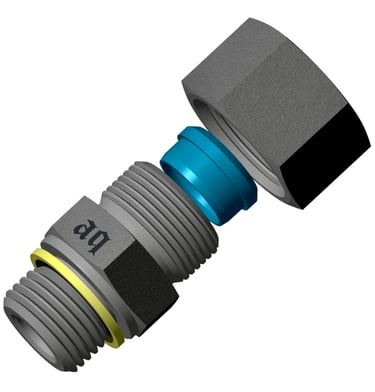

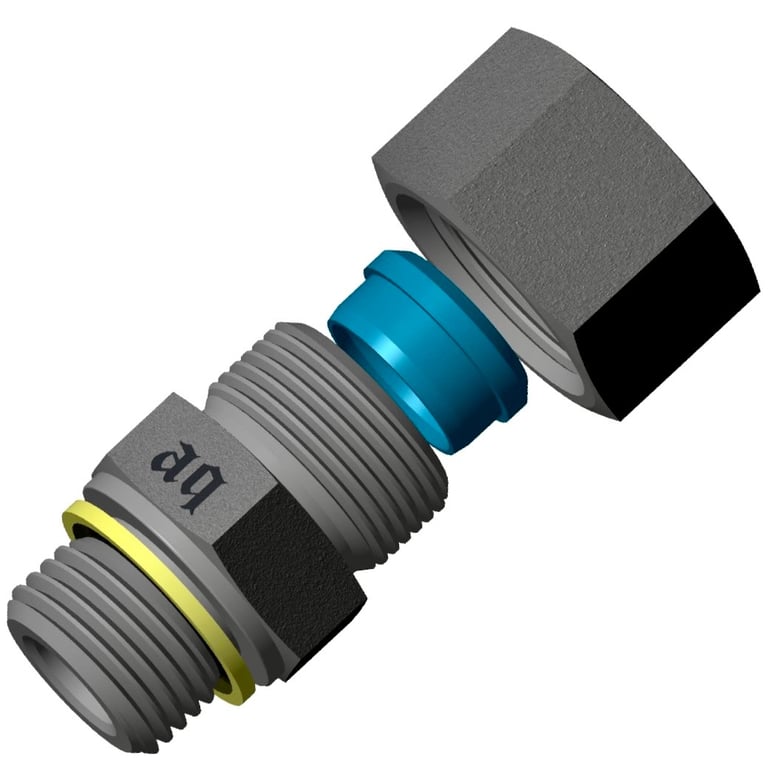

Male Stud Coupling

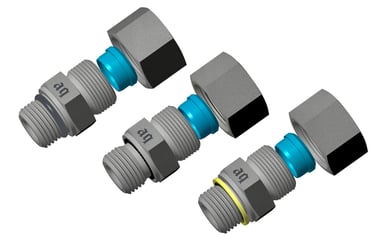

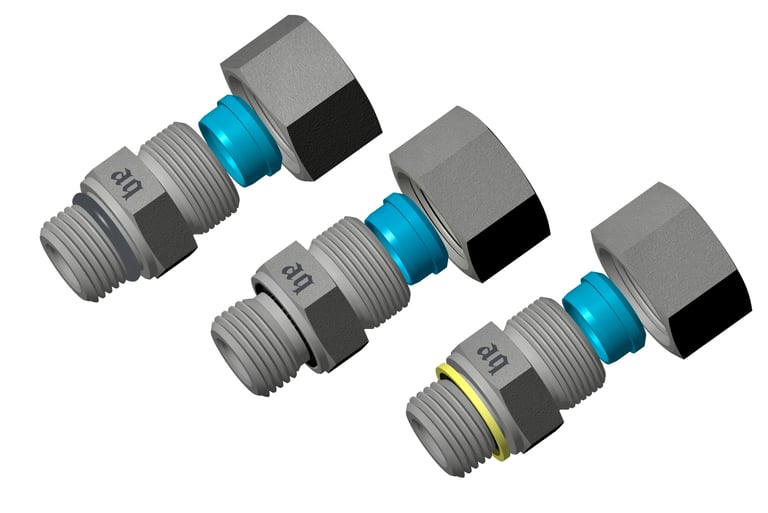

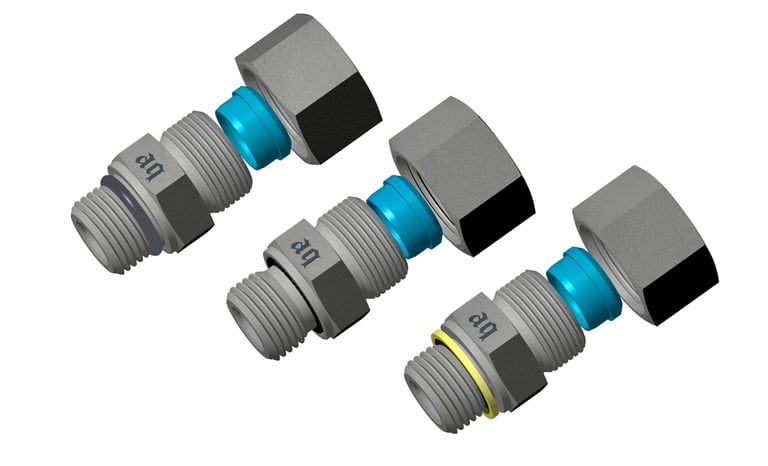

Can be used in Multiple forms like Bonded Seals, Elastomeric Seals, O-rings and copper Washers
Our tube fittings have been carefully manufactured to ensure they fit perfectly under all seals and washers, allowing them to withstand high pressure levels. We understand the importance of a secure and leak-proof connection when dealing with pressurized systems, which is why our fittings are designed with precision and attention to detail. By providing a tight seal, our fittings effectively prevent any leakage or loss of pressure, ensuring the smooth and efficient operation of your equipment. With our reliable and durable tube fittings, you can have peace of mind knowing that your system is capable of handling even the most demanding applications.
6 OD - [ M12 x 1.5 ]
1/8" , 1/4" , 3/8" [ BSP / NPT / BSPT ]
8 OD - [ M14 x 1.5 ]
1/4" , 3/8" [ BSP / NPT / BSPT ]
10 OD - [ M16 x 1.5 ]
1/4" , 3/8" , 1/2" [ BSP / NPT / BSPT ]
12 OD - [ M18 x 1.5 ]
1/4" , 3/8" , 1/2" [ BSP / NPT / BSPT ]
15 OD - [ M22 x 1.5 ]
3/8" , 1/2" [ BSP / NPT / BSPT ]
18 OD - [ M26 x 1.5 ]
3/8" , 1/2" [ BSP / NPT / BSPT ]
22 OD - [ M30 x 2.0 ]
1/2" , 3/4" [ BSP / NPT / BSPT ]
28 OD - [ M36 x 2.0 ]
3/4" , 1" [ BSP / NPT / BSPT ]
35 OD - [ M45 x 2.0 ]
1" , 1 1/4" [ BSP / NPT / BSPT ]
42 OD - [ M52 x 2.0 ]
1 1/2" [ BSP / NPT / BSPT ]
6 OD - [ M14 x 1.5 ]
1/8" , 1/4" , 3/8" [ BSP / NPT / BSPT ]
8 OD - [ M16 x 1.5 ]
1/4" , 3/8" [ BSP / NPT / BSPT ]
10 OD - [ M18 x 1.5 ]
1/4" , 3/8" , 1/2" [ BSP / NPT / BSPT ]
12 OD - [ M20 x 1.5 ]
1/4" , 3/8" , 1/2" [ BSP / NPT / BSPT ]
14 OD - [ M22 x 1.5 ]
3/8" , 1/2" [ BSP / NPT / BSPT ]
16 OD - [ M24 x 1.5 ]
1/2" , 3/4" [ BSP / NPT / BSPT ]
20 OD - [ M30 x 2.0 ]
1/2" , 3/4" , 1" [ BSP / NPT / BSPT ]
25 OD - [ M36 x 2.0 ]
3/4" , 1" [ BSP / NPT / BSPT ]
30 OD - [ M42 x 2.0 ]
1" , 1 1/4" [ BSP / NPT / BSPT ]
38 OD - [ M52 x 2.0 ]
1 1/2" [ BSP / NPT / BSPT ]

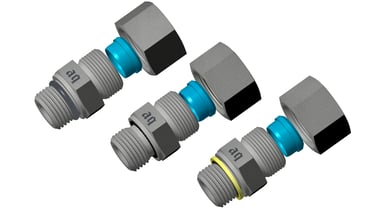

All the BSP connectors are compatible with Bonded Seals copper Washers, O-rings and Elastomeric Seals.
Please contact us before using any seals or washers on our connectors to avoid leakage.
Note that Taper threads like NPT / BSPT doesn't require any seals or washers.
Provide us your design and we will help you to create it.
We have been customising designs with our customers from a long period of time. our RND and technology will help you create the best product which is suitable to your product
Customise with us.
Accessories and Spares
Metric Nuts
From 6 OD - L Till 38 OD - S
Tube Ferrules
From 6 OD - L Till 38 OD - S
Weld Nipples
From 6 OD - L Till 38 OD - S
Lock Nuts
From 6 OD - L Till 38 OD - S
Elastomeric Seal
From 1/4" BSP Till 1 1/2" BSP
Bonded Seal
From 1/4" BSP Till 2" BSP
Copper Washers
From 1/4" BSP Till 2" BSP
O - Rings
From 1/4" BSP Till 2" BSP
Seamless Tube
From 4 OD Till 42 OD 1.5mm - 5mm Thickness
In Stainless Steel 304 / 316 and Mild Steel [ MS ]
