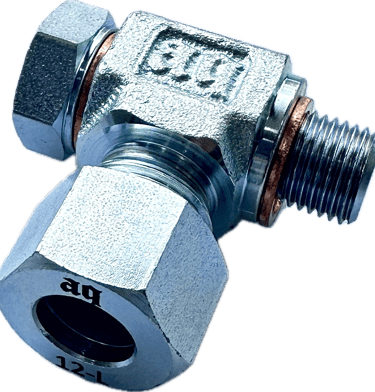

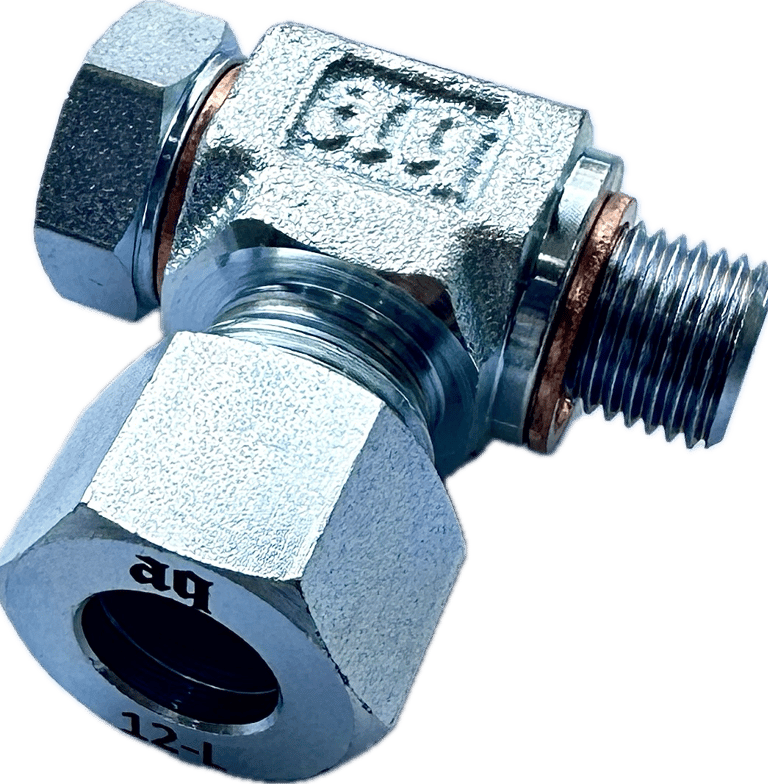

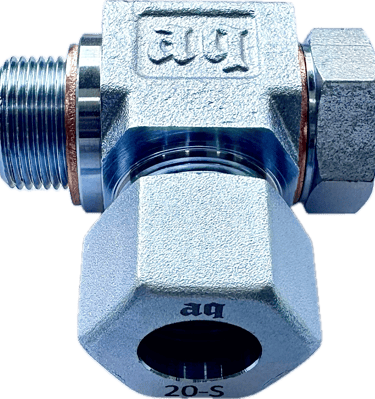

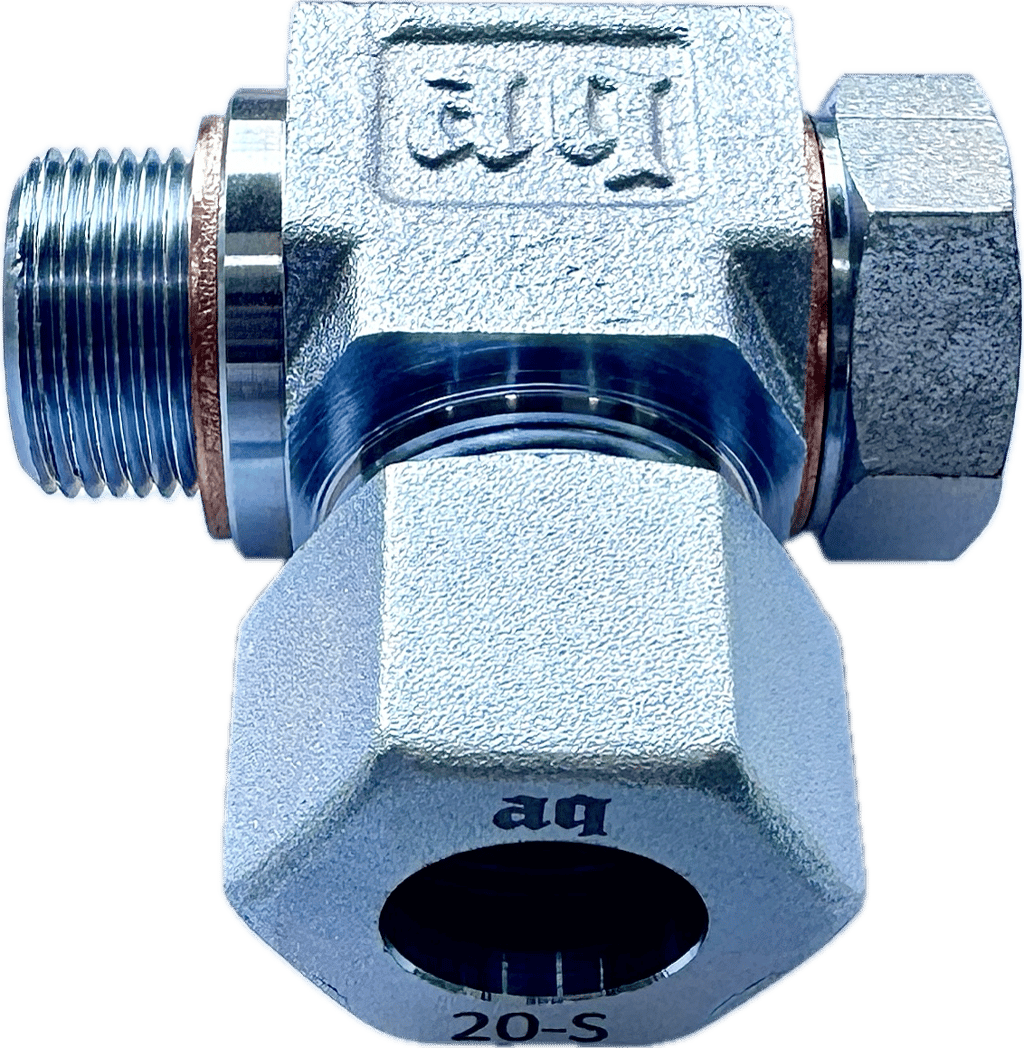

Banjo Coupling

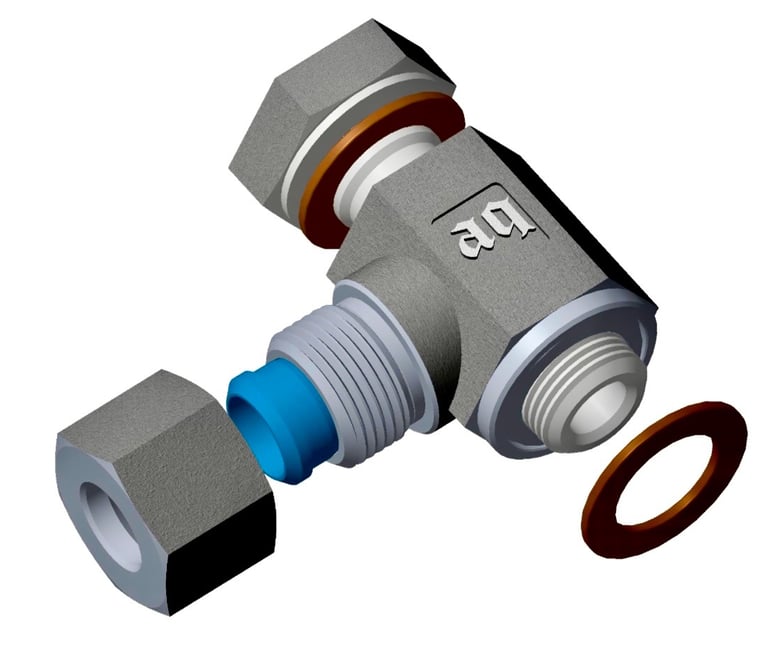

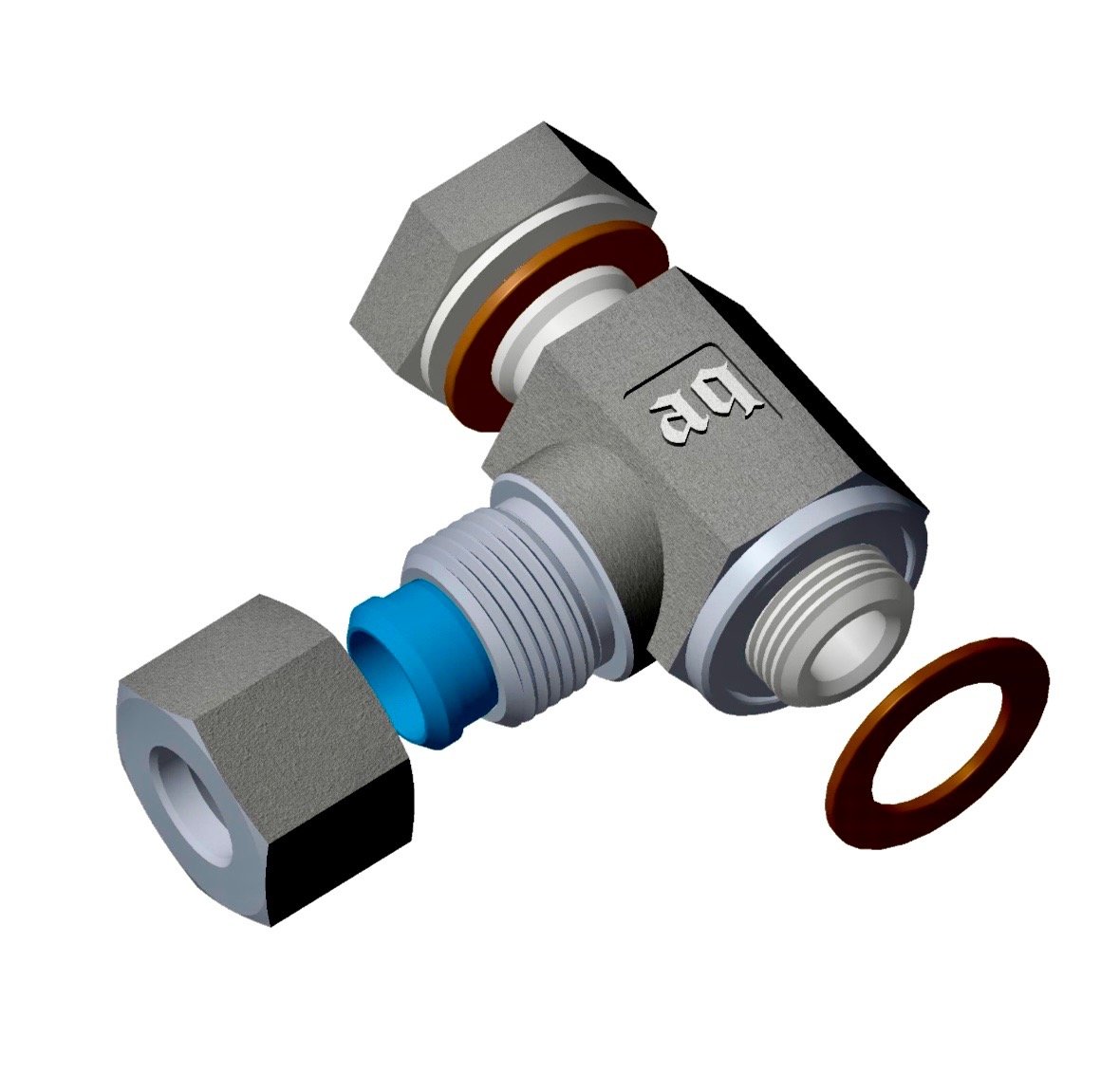

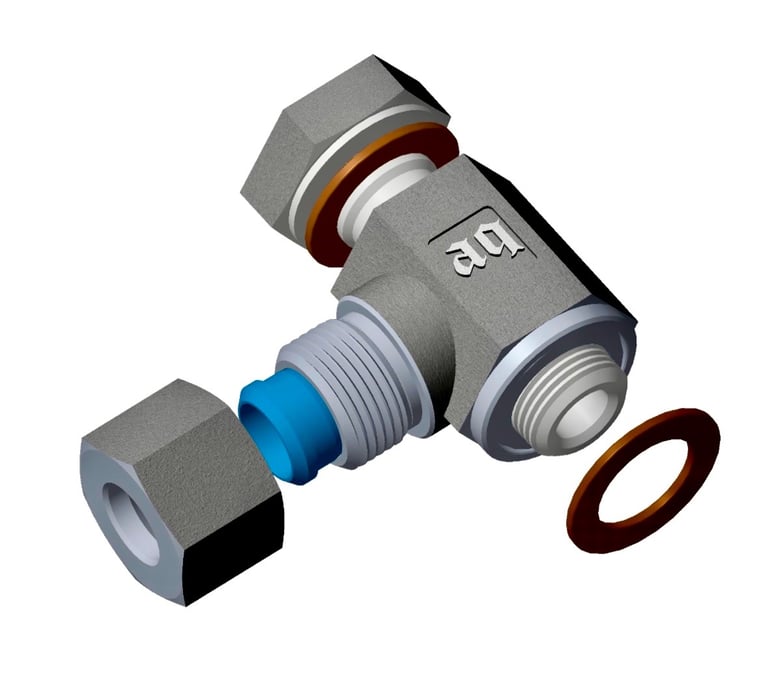

Commonly joins fluid line to threaded hydraulic part. Bolt passes through union centre with face seals, forming fluid path between union and bolt's external ports. Aaliqadr Banjo can be assembled using Bonded Seal, Elastomeric Seals, O-ring, Copper washers and More.
6 OD - [ M12 x 1.5 ]
1/8" [ BSP / NPT / BSPT ]
8 OD - [ M14 x 1.5 ]
1/4" [ BSP / NPT / BSPT ]
10 OD - [ M16 x 1.5 ]
1/4" [ BSP / NPT / BSPT ]
12 OD - [ M18 x 1.5 ]
3/8" [ BSP / NPT / BSPT ]
15 OD - [ M22 x 1.5 ]
1/2" [ BSP / NPT / BSPT ]
18 OD - [ M26 x 1.5 ]
1/2" [ BSP / NPT / BSPT ]
22 OD - [ M30 x 2.0 ]
3/4" [ BSP / NPT / BSPT ]
28 OD - [ M36 x 2.0 ]
1" [ BSP / NPT / BSPT ]
35 OD - [ M45 x 2.0 ]
1 1/4" [ BSP / NPT / BSPT ]
42 OD - [ M52 x 2.0 ]
1 1/2" [ BSP / NPT / BSPT ]
6 OD - [ M14 x 1.5 ]
1/4" [ BSP / NPT / BSPT ]
8 OD - [ M16 x 1.5 ]
1/4" [ BSP / NPT / BSPT ]
10 OD - [ M18 x 1.5 ]
3/8" [ BSP / NPT / BSPT ]
12 OD - [ M20 x 1.5 ]
3/8" [ BSP / NPT / BSPT ]
14 OD - [ M22 x 1.5 ]
1/2" [ BSP / NPT / BSPT ]
16 OD - [ M24 x 1.5 ]
3/4" [ BSP / NPT / BSPT ]
20 OD - [ M30 x 2.0 ]
3/4" [ BSP / NPT / BSPT ]
25 OD - [ M36 x 2.0 ]
1" [ BSP / NPT / BSPT ]
30 OD - [ M42 x 2.0 ]
1 1/4" [ BSP / NPT / BSPT ]
38 OD - [ M52 x 2.0 ]
1 1/2" [ BSP / NPT / BSPT ]
All the BSP connectors are compatible with Bonded Seals copper Washers, O-rings and Elastomeric Seals.
Please contact us before using any seals or washers on our connectors to avoid leakage.
Note that Taper threads like NPT / BSPT doesn't require any seals or washers.
