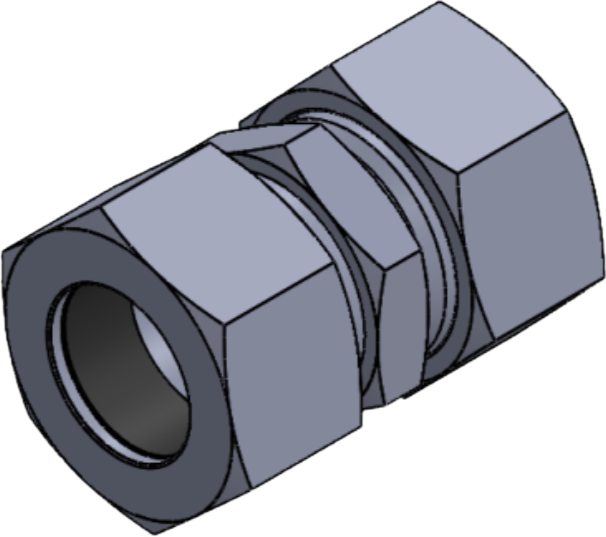

Straight Coupling [ Straight - Union ] Series : L [ Low pressure ] — W01
Introducing the paramount in tube-to-tube connectors! Our reputation is forged on the exceptional quality we offer. What sets us apart is our unwavering commitment to design and efficiency, ensuring top-tier performance. We aren't just good; we're the best at what we do. What makes us truly stand out is our relentless pursuit of improvement. With us, you're not just getting quality – you're getting the absolute best. When it comes to tube connectors, choose the brand that doesn't settle for good, but constantly strives to be better. Choose us.

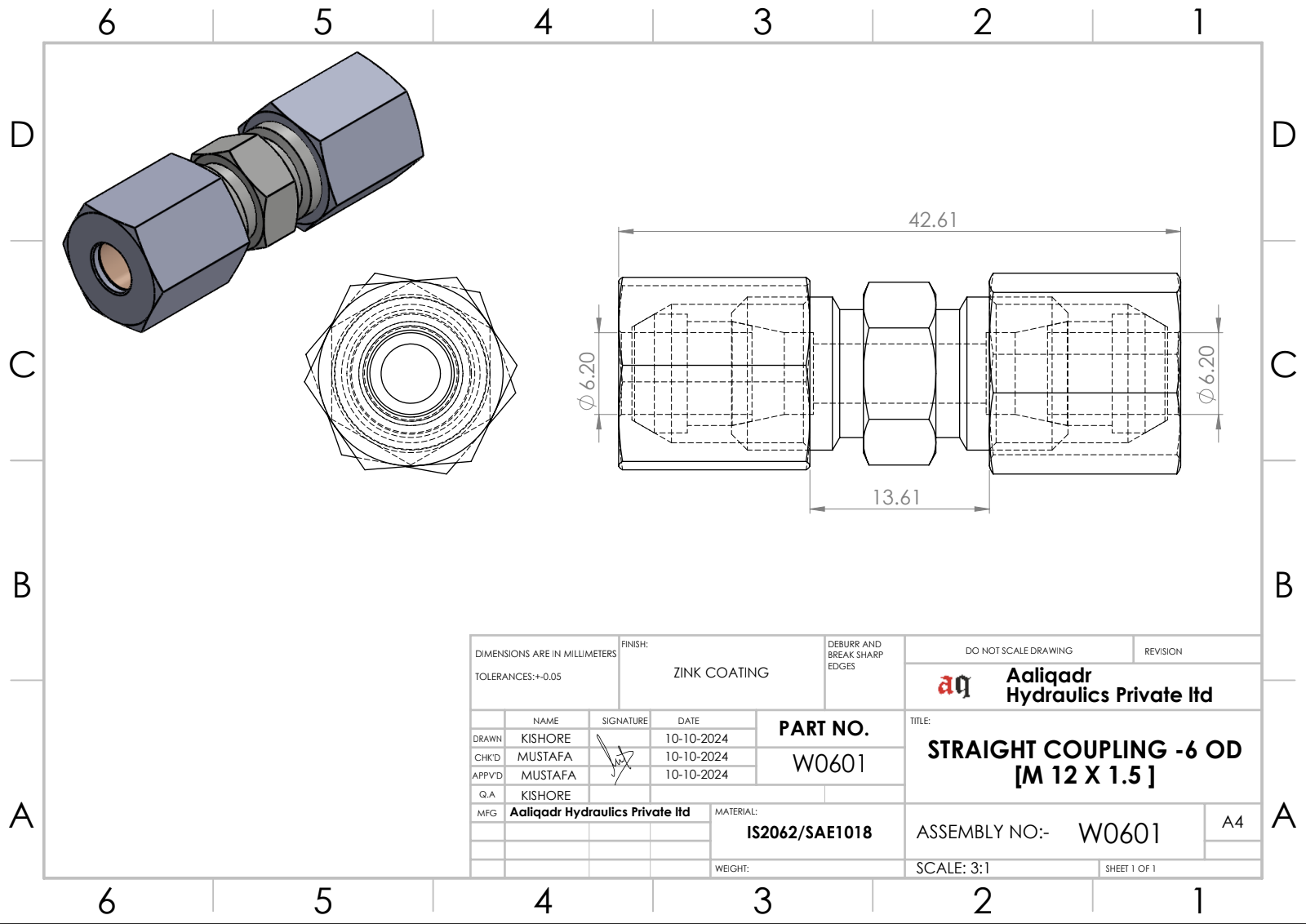

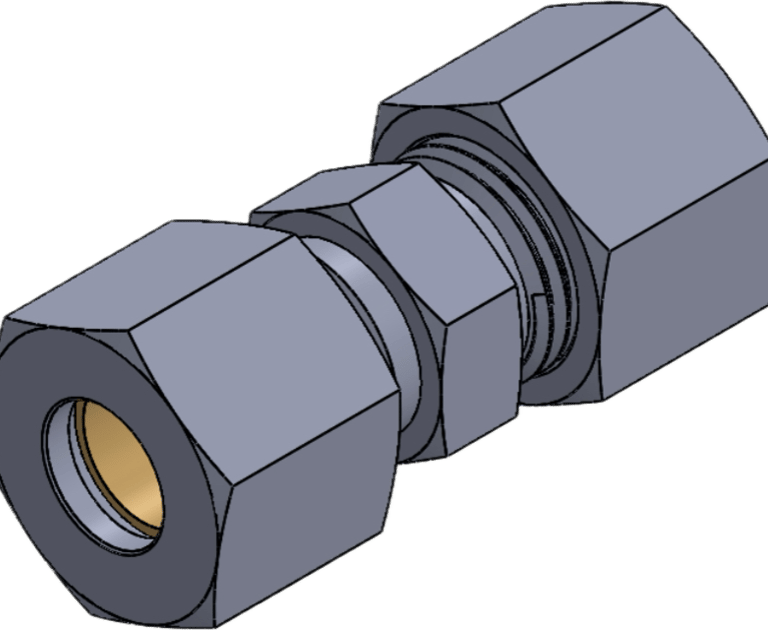

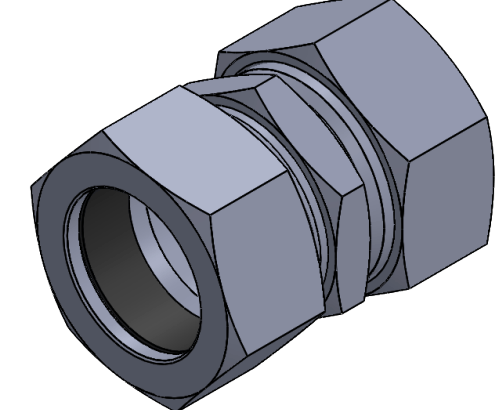

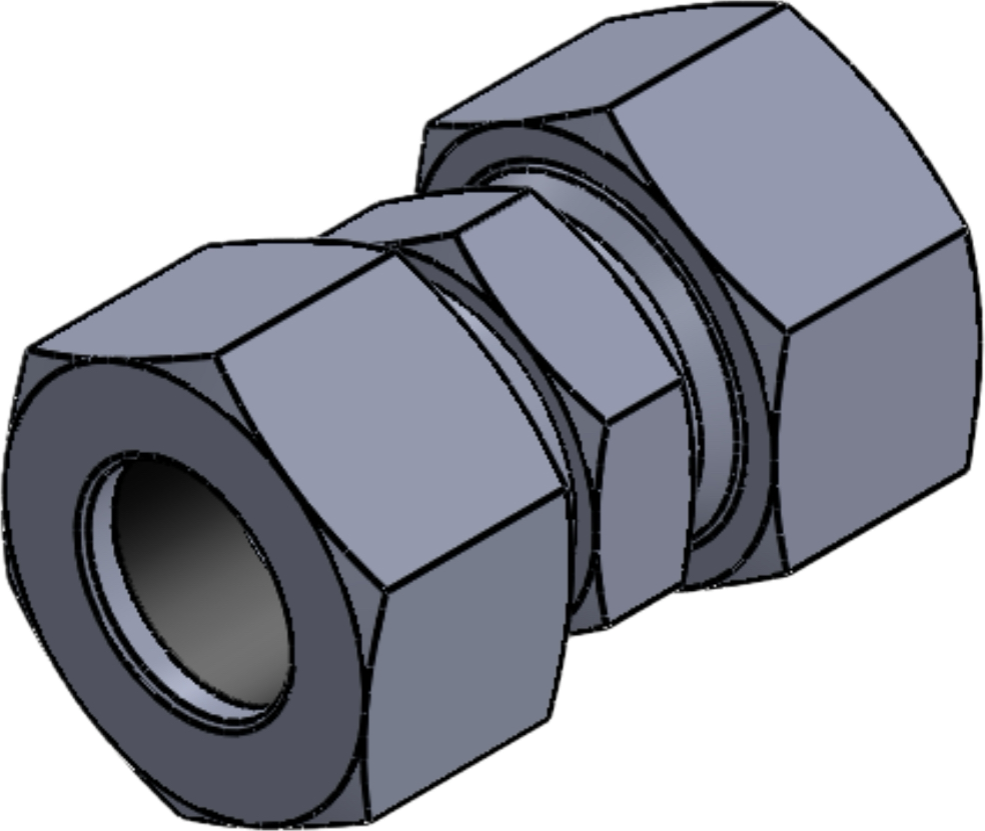

6L Straight Coupling
Ferrule Lock Technology. 24° Flareless Fitting.
Technical Information.
6L - Straight Coupling.
Maximum Operating
Pressure :
Application:
Connection Type:
Connection 4 size:
500 Bars of Dynamic Pressure [ 7251 PSI Dynamic Pressure ] 50 MPa Dynamic Pressure.
Hydraulic Oil fluid power
Flareless
Flareless Bite Type
Material of Construction:
Connection Tube Diameter:
Brand:
Steel [ SAE 1018 ], Stainless Steel 304 / 316. Zinc Coated for CS.
6 mm OD
Threading Size :
M12 x 1.5 [thread pitch] - nut & body

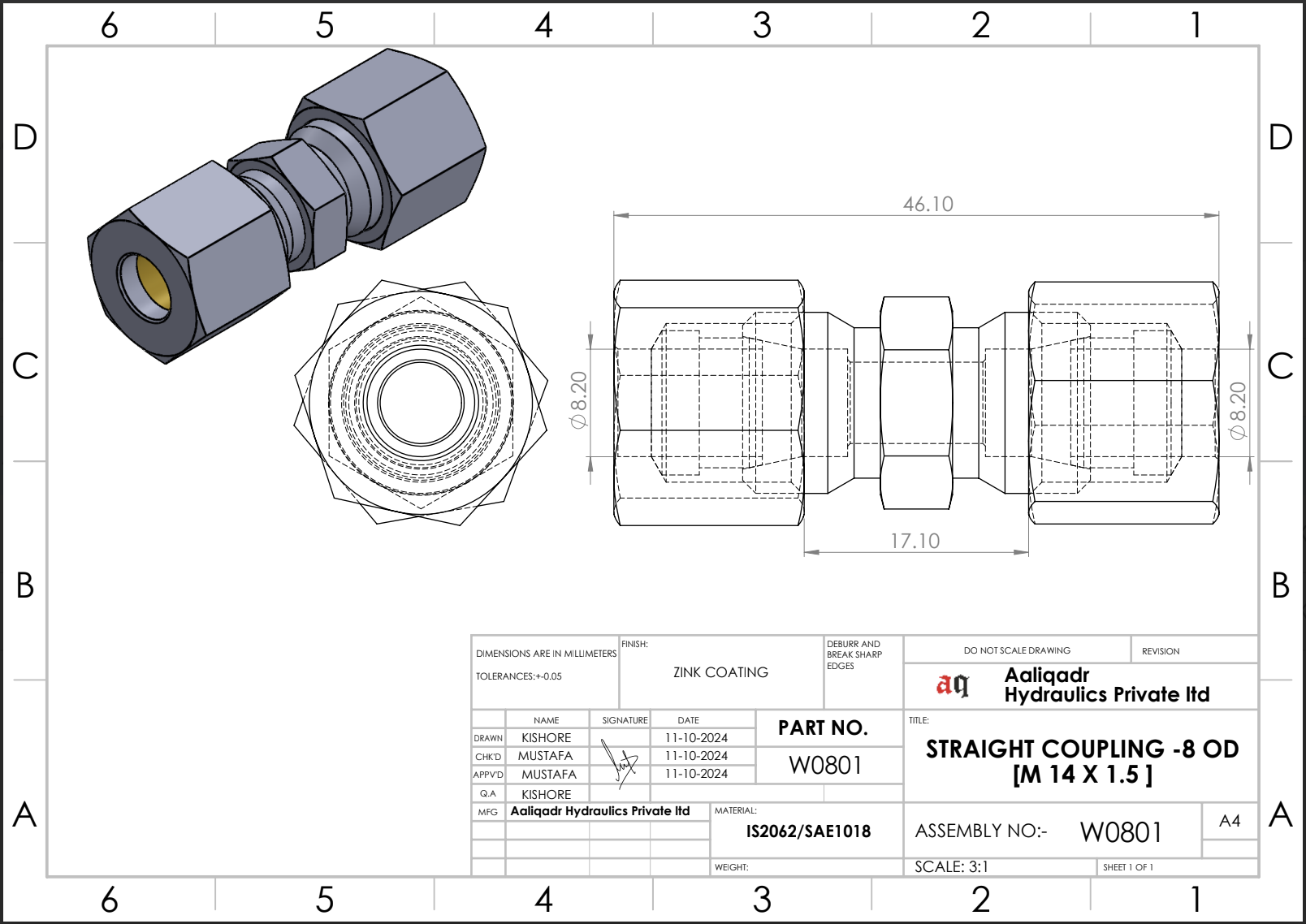

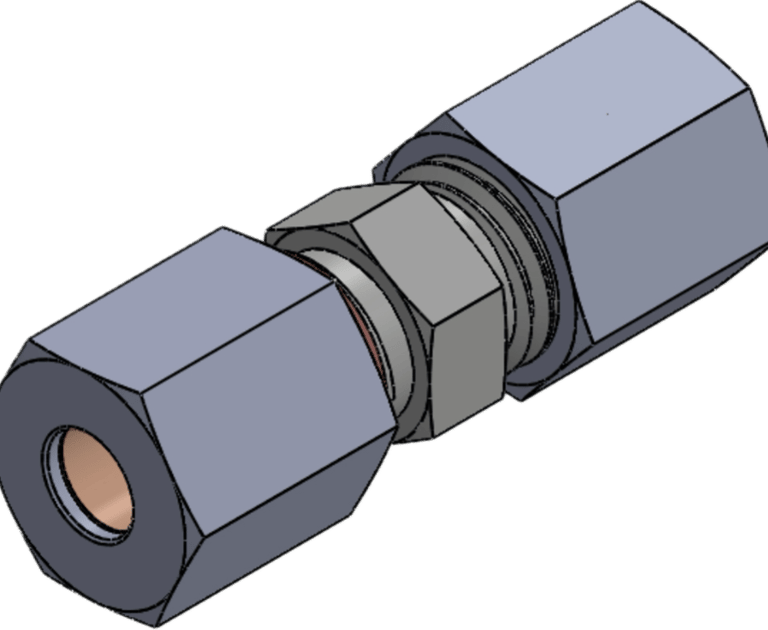

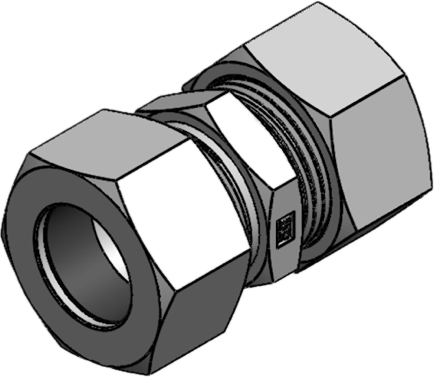

8L Straight Coupling
Ferrule Lock Technology. 24° Flareless Fitting.
Technical Information.
Maximum Operating
Pressure :
Application:
Connection Type:
Connection 4 size:
500 Bars of Dynamic Pressure [ 7251 PSI Dynamic Pressure ] 50 MPa Dynamic Pressure.
Hydraulic Oil fluid power
Flareless
Flareless Bite Type
Material of Construction:
Connection Tube Diameter:
Brand:
Steel [ SAE 1018 ], Stainless Steel 304 / 316. Zinc Coated for CS.
8 mm OD
Threading Size :
M14 x 1.5 [thread pitch] - nut & body
8L - Straight Coupling.

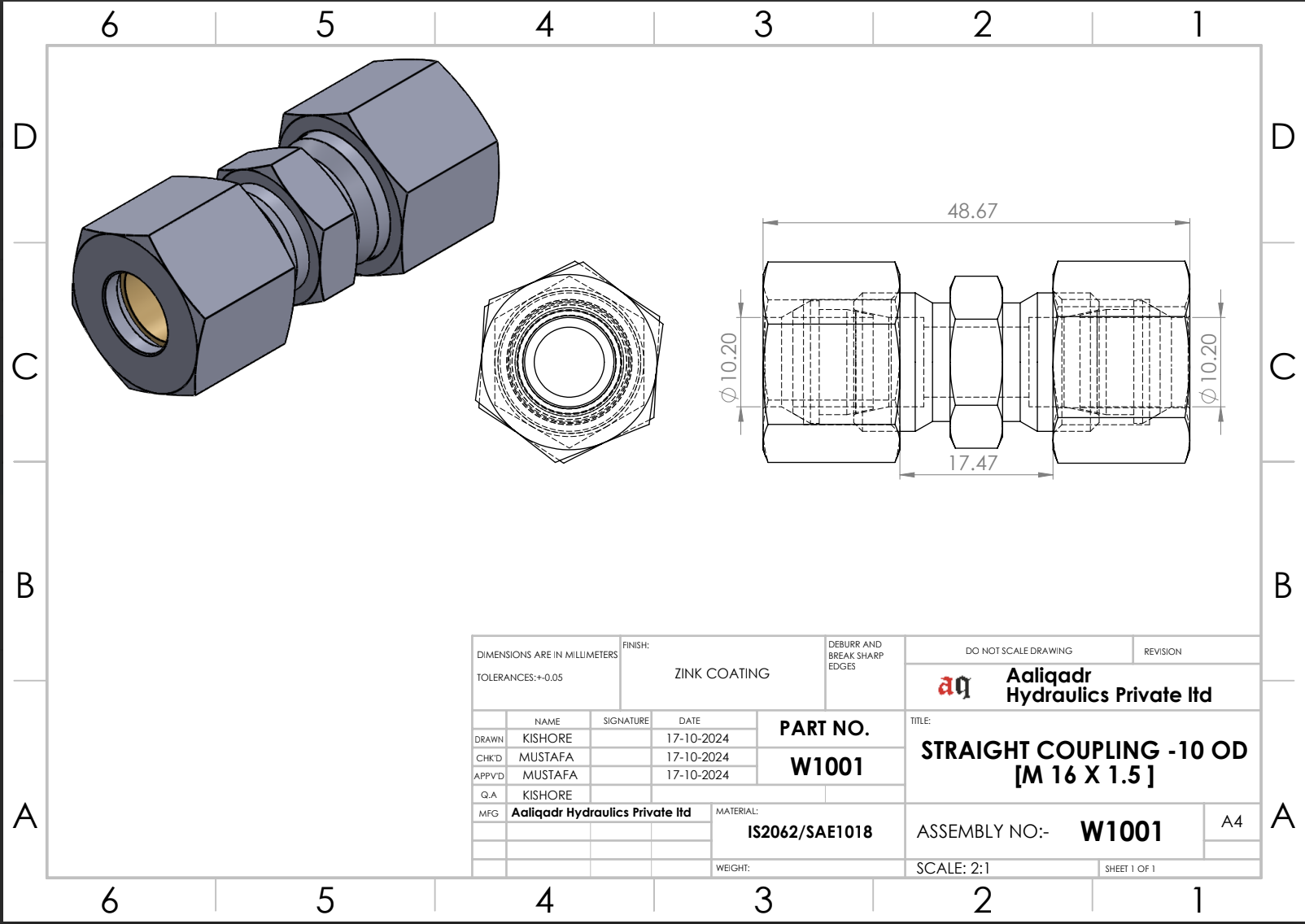

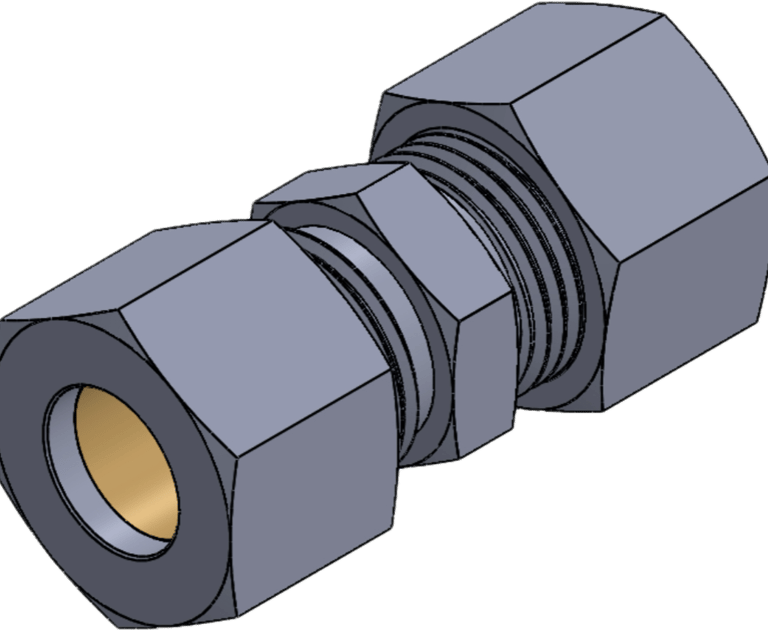

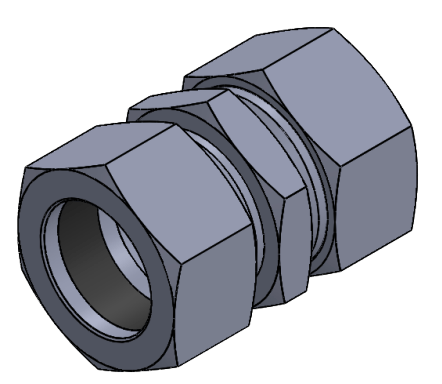

10L Straight Coupling
Ferrule Lock Technology. 24° Flareless Fitting.
Technical Information.
Maximum Operating
Pressure :
Application:
Connection Type:
Connection 4 size:
500 Bars of Dynamic Pressure [ 7,251 PSI Dynamic Pressure ] 50 MPa Dynamic Pressure.
Hydraulic Oil fluid power
Flareless
Flareless Bite Type
Material of Construction:
Connection Tube Diameter:
Brand:
Steel [ SAE 1018 ], Stainless Steel 304 / 316. Zinc Coated for CS.
10 mm OD
Threading Size :
M16 x 1.5 [thread pitch] - nut & body
10L - Straight Coupling.

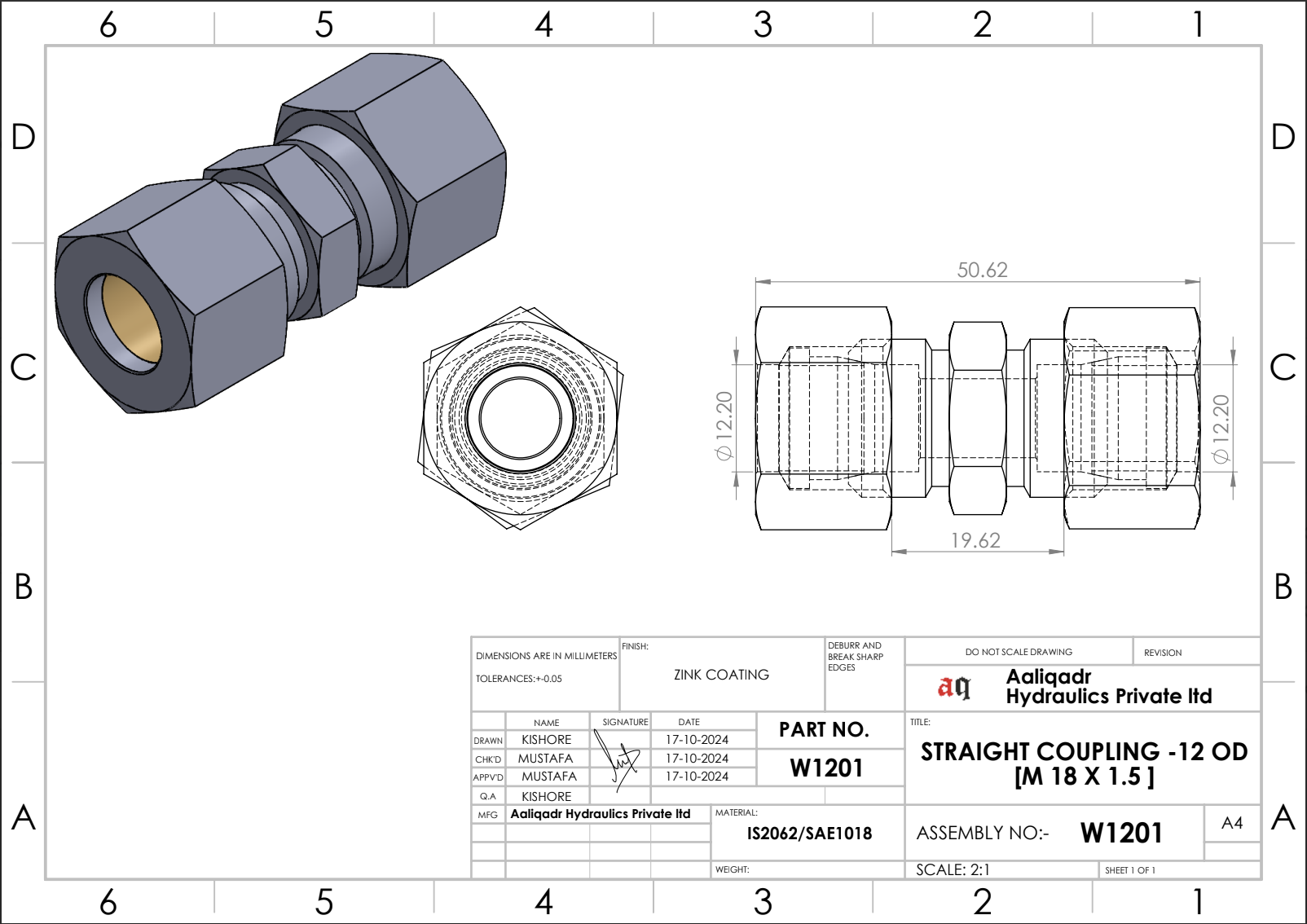

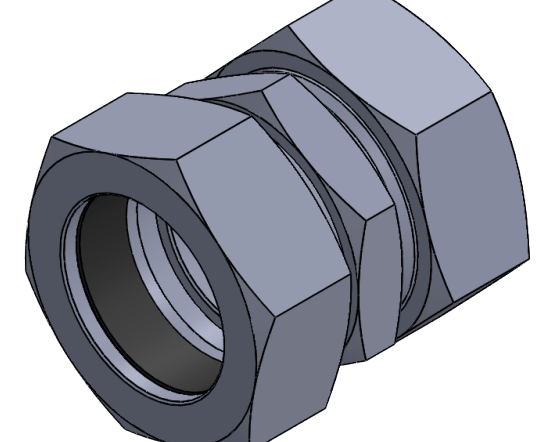

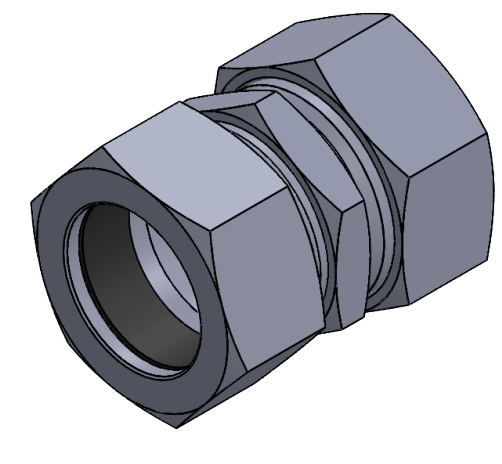

12L Straight Coupling
Ferrule Lock Technology. 24° Flareless Fitting.
Technical Information.
Maximum Operating
Pressure :
Application:
Connection Type:
Connection 4 size:
400 Bars of Dynamic Pressure [ 5,801 PSI Dynamic Pressure ] 40 MPa Dynamic Pressure.
Hydraulic Oil fluid power
Flareless
Flareless Bite Type
Material of Construction:
Connection Tube Diameter:
Brand:
Steel [ SAE 1018 ], Stainless Steel 304 / 316. Zinc Coated for CS.
12 mm OD
Threading Size :
M18 x 1.5 [thread pitch] - nut & body
12L - Straight Coupling.

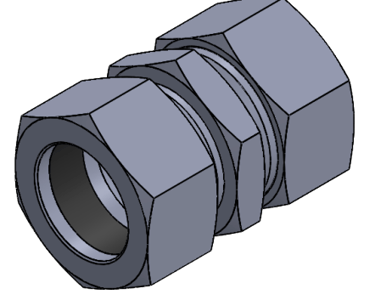

15L Straight Coupling
Ferrule Lock Technology. 24° Flareless Fitting.
Technical Information.
Maximum Operating
Pressure :
Application:
Connection Type:
Connection 4 size:
400 Bars of Dynamic Pressure [ 5,801 PSI Dynamic Pressure ] 40 MPa Dynamic Pressure.
Hydraulic Oil fluid power
Flareless
Flareless Bite Type
Material of Construction:
Connection Tube Diameter:
Brand:
Steel [ SAE 1018 ], Stainless Steel 304 / 316. Zinc Coated for CS.
15 mm OD
Threading Size :
M22 x 1.5 [thread pitch] - nut & body
15L - Straight Coupling.

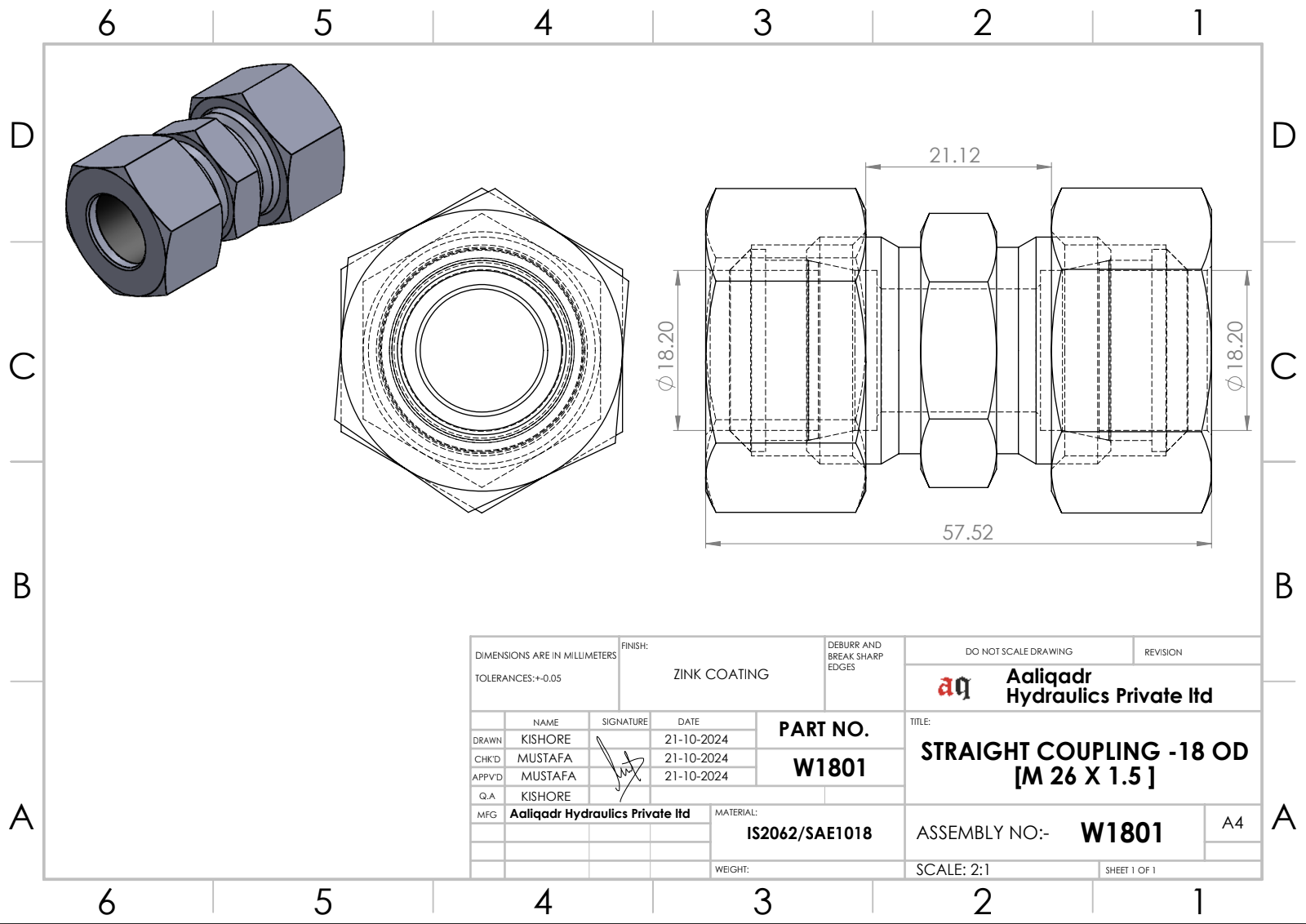

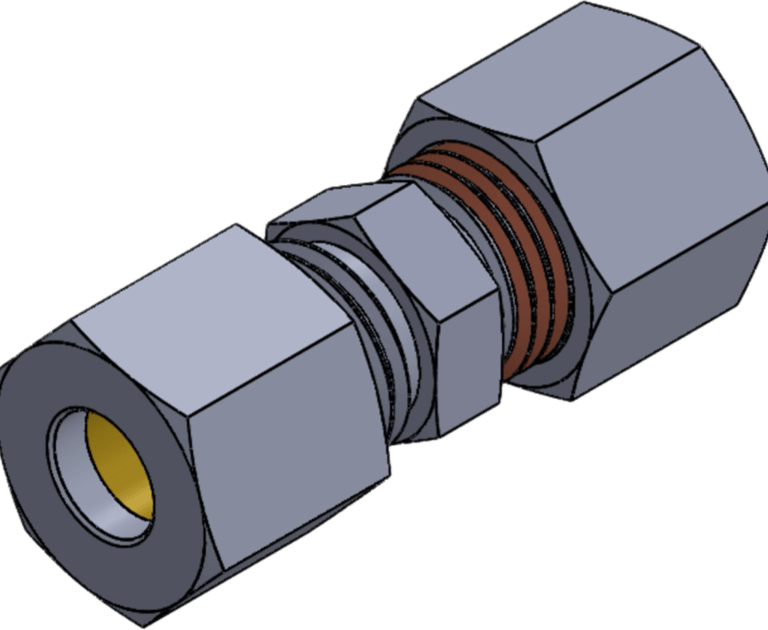

18L Straight Coupling
Ferrule Lock Technology. 24° Flareless Fitting.
Technical Information.
Maximum Operating
Pressure :
Application:
Connection Type:
Connection 4 size:
400 Bars of Dynamic Pressure [ 5,801 PSI Dynamic Pressure ] 40 MPa Dynamic Pressure.
Hydraulic Oil fluid power
Flareless
Flareless Bite Type
Material of Construction:
Connection Tube Diameter:
Brand:
Steel [ SAE 1018 ], Stainless Steel 304 / 316. Zinc Coated for CS.
18 mm OD
Threading Size :
M26 x 1.5 [thread pitch] - nut & body
18L - Straight Coupling.

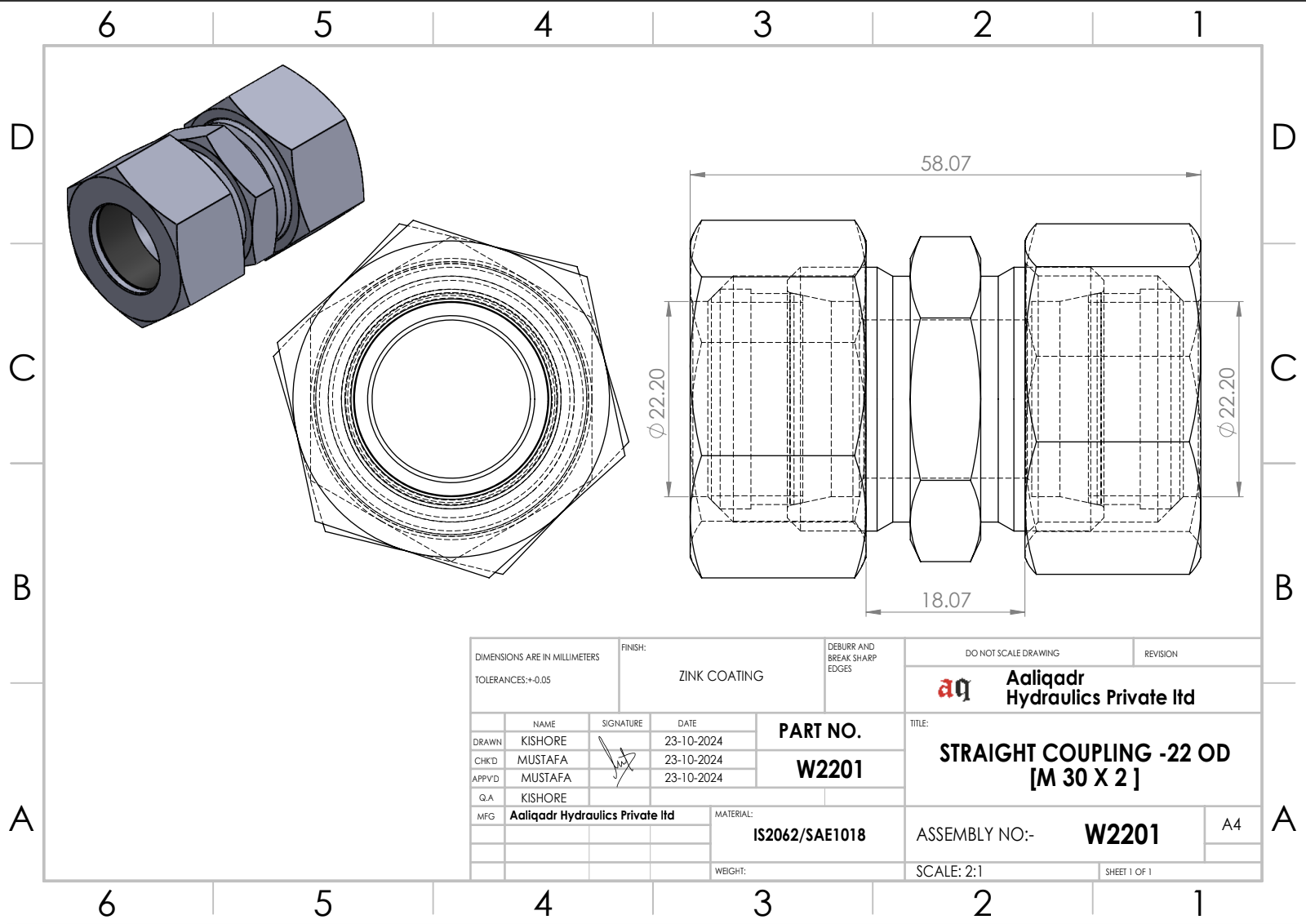

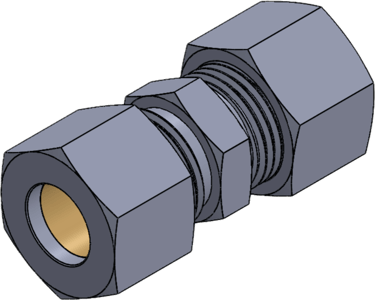

22L Straight Coupling
Ferrule Lock Technology. 24° Flareless Fitting.
Technical Information.
Maximum Operating
Pressure :
Application:
Connection Type:
Connection 4 size:
250 Bars of Dynamic Pressure [ 3,625 PSI Dynamic Pressure ] 25 MPa Dynamic Pressure.
Hydraulic Oil fluid power
Flareless
Flareless Bite Type
Material of Construction:
Connection Tube Diameter:
Brand:
Steel [ SAE 1018 ], Stainless Steel 304 / 316. Zinc Coated for CS.
22 mm OD
Threading Size :
M30 x 2.0 [thread pitch] - nut & body
22L - Straight Coupling.

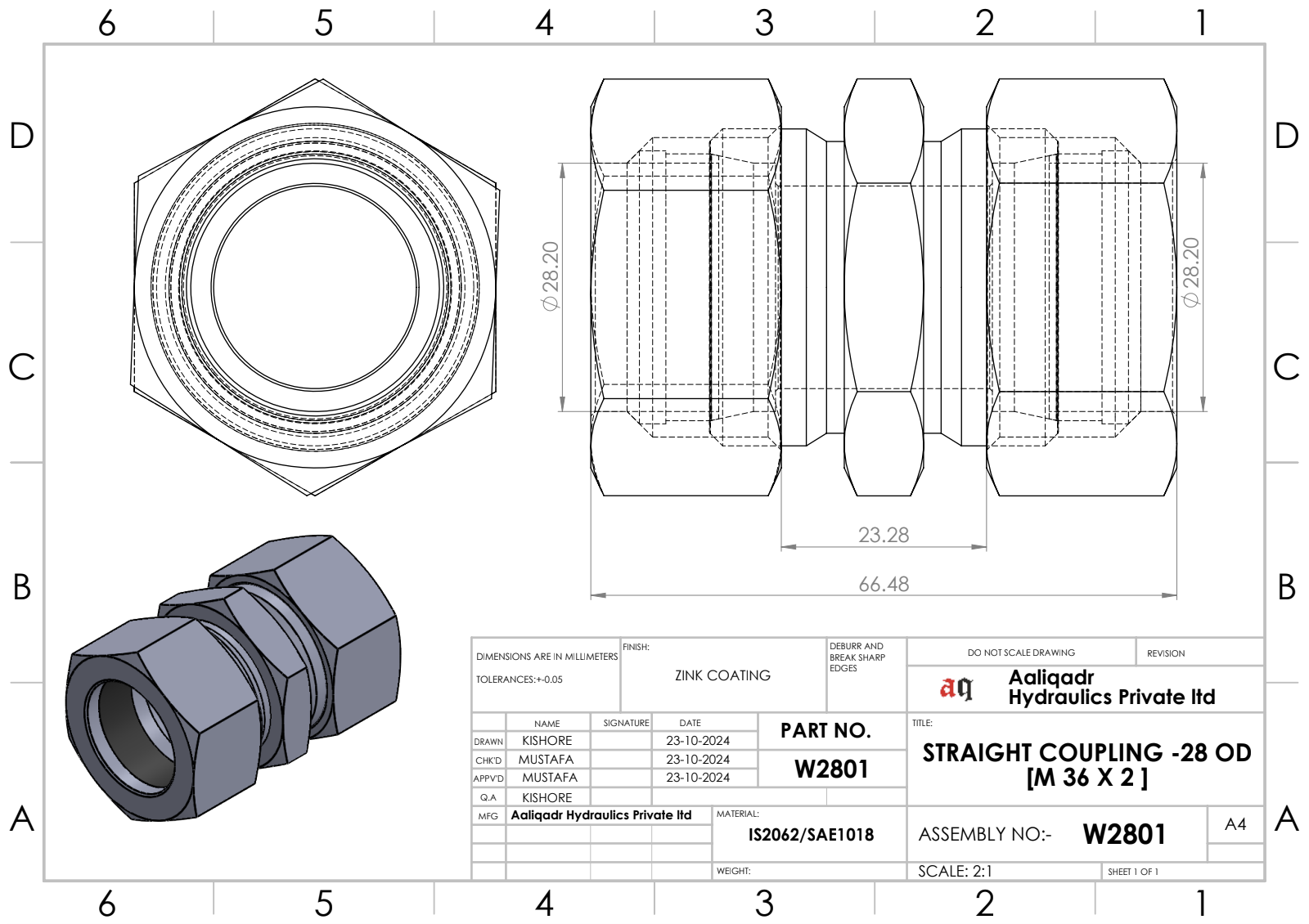

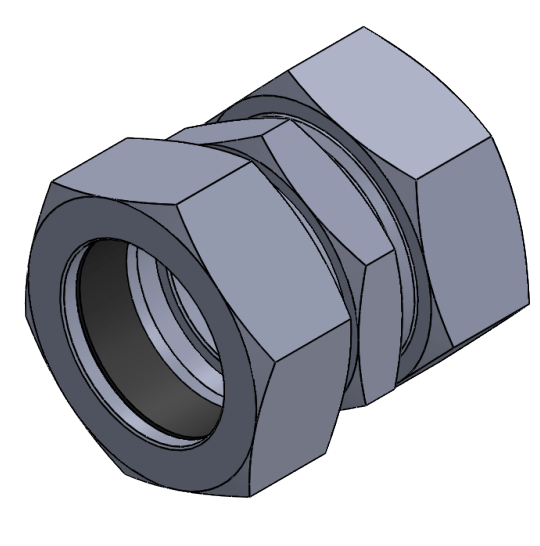

28 OD Straight Coupling
Ferrule Lock Technology. 24° Flareless Fitting.
Technical Information.
Maximum Operating
Pressure :
Application:
Connection Type:
Connection 4 size:
250 Bars of Dynamic Pressure [ 3,625 PSI Dynamic Pressure ] 25 MPa Dynamic Pressure.
Hydraulic Oil fluid power
Flareless
Flareless Bite Type
Material of Construction:
Connection Tube Diameter:
Brand:
Steel [ SAE 1018 ], Stainless Steel 304 / 316. Zinc Coated for CS.
28 mm OD
Threading Size :
M36 x 2.0 [thread pitch] - nut & body
28L - Straight Coupling.

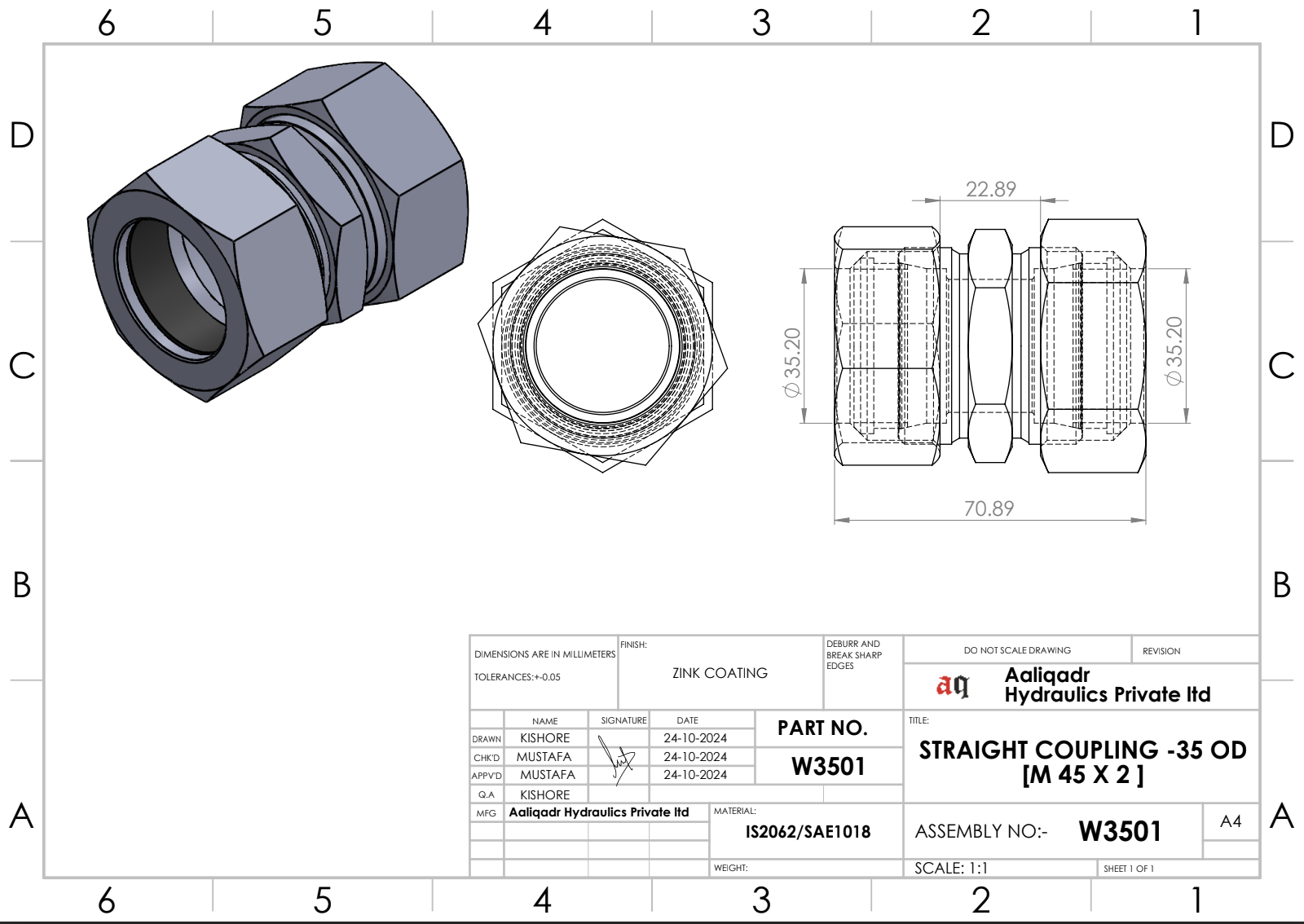

35L Straight Coupling
Ferrule Lock Technology. 24° Flareless Fitting.
Technical Information.
Maximum Operating
Pressure :
Application:
Connection Type:
Connection 4 size:
250 Bars of Dynamic Pressure [ 3,625 PSI Dynamic Pressure ] 25 MPa Dynamic Pressure.
Hydraulic Oil fluid power
Flareless
Flareless Bite Type
Material of Construction:
Connection Tube Diameter:
Brand:
Steel [ SAE 1018 ], Stainless Steel 304 / 316. Zinc Coated for CS.
35 mm OD
Threading Size :
M45 x 2.0 [thread pitch] - nut & body
35L - Straight Coupling.

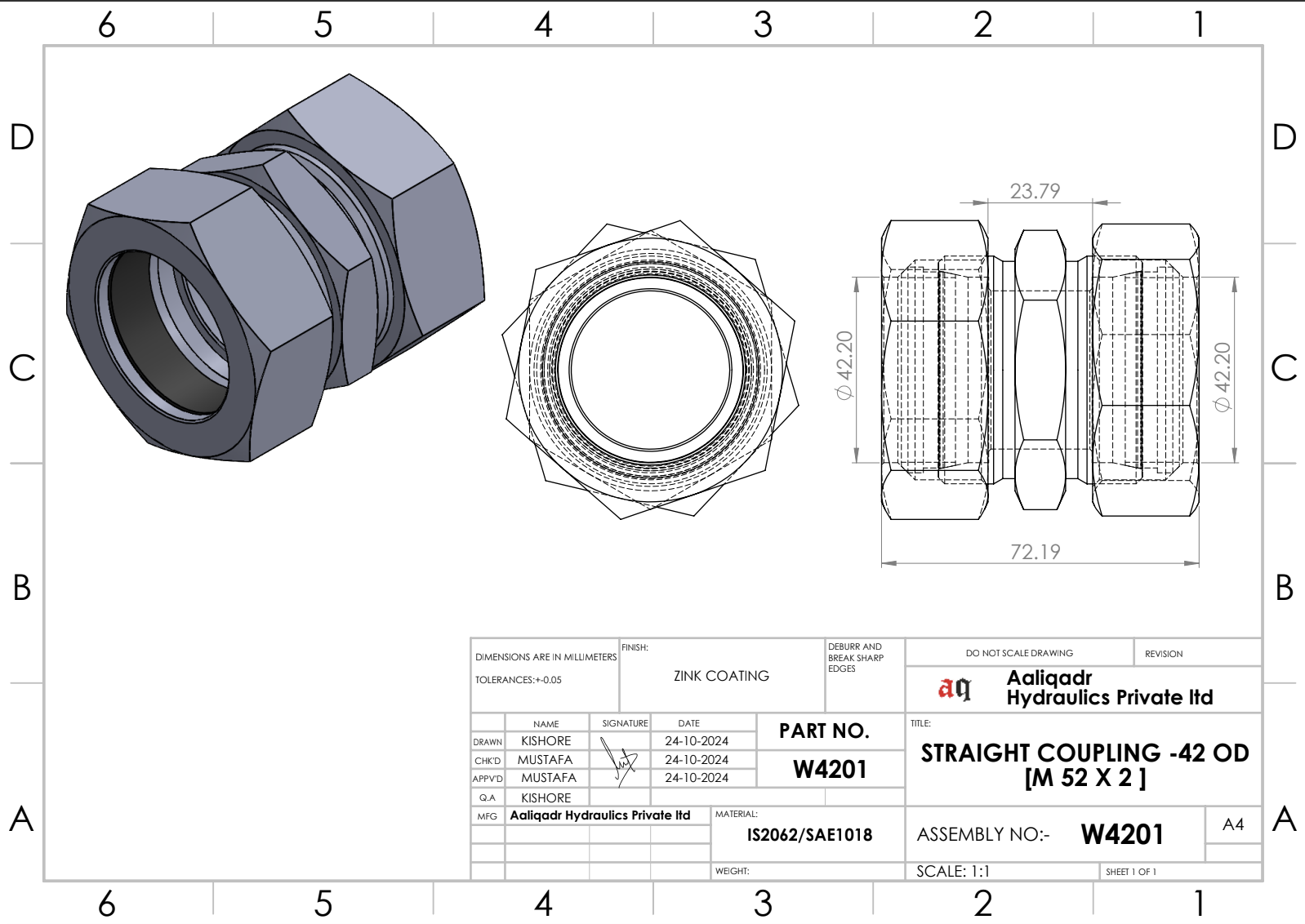

42L Straight Coupling
Ferrule Lock Technology. 24° Flareless Fitting.
Technical Information.
Maximum Operating
Pressure :
Application:
Connection Type:
Connection 4 size:
250 Bars of Dynamic Pressure [ 3,625 PSI Dynamic Pressure ] 25 MPa Dynamic Pressure.
Hydraulic Oil fluid power
Flareless
Flareless Bite Type
Material of Construction:
Connection Tube Diameter:
Brand:
Steel [ SAE 1018 ], Stainless Steel 304 / 316. Zinc Coated for CS.
42 mm OD
Threading Size :
M52 x 2.0 [thread pitch] - nut & body
42L - Straight Coupling.
