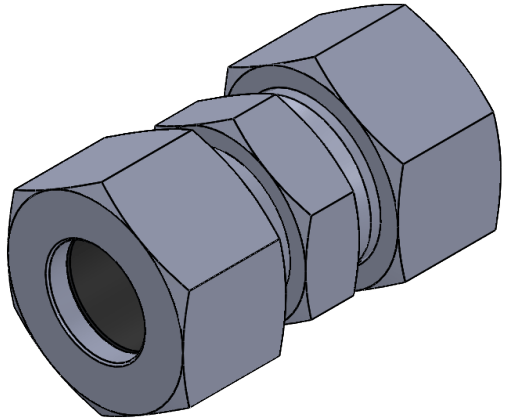

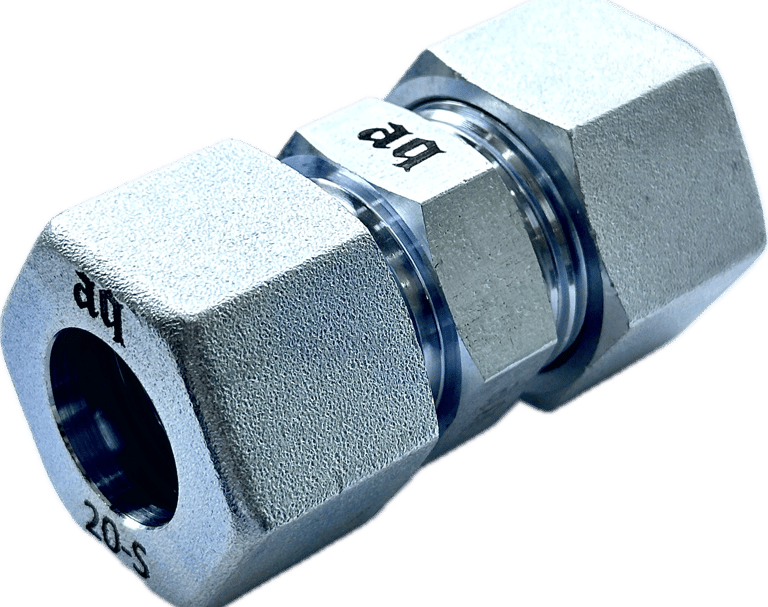

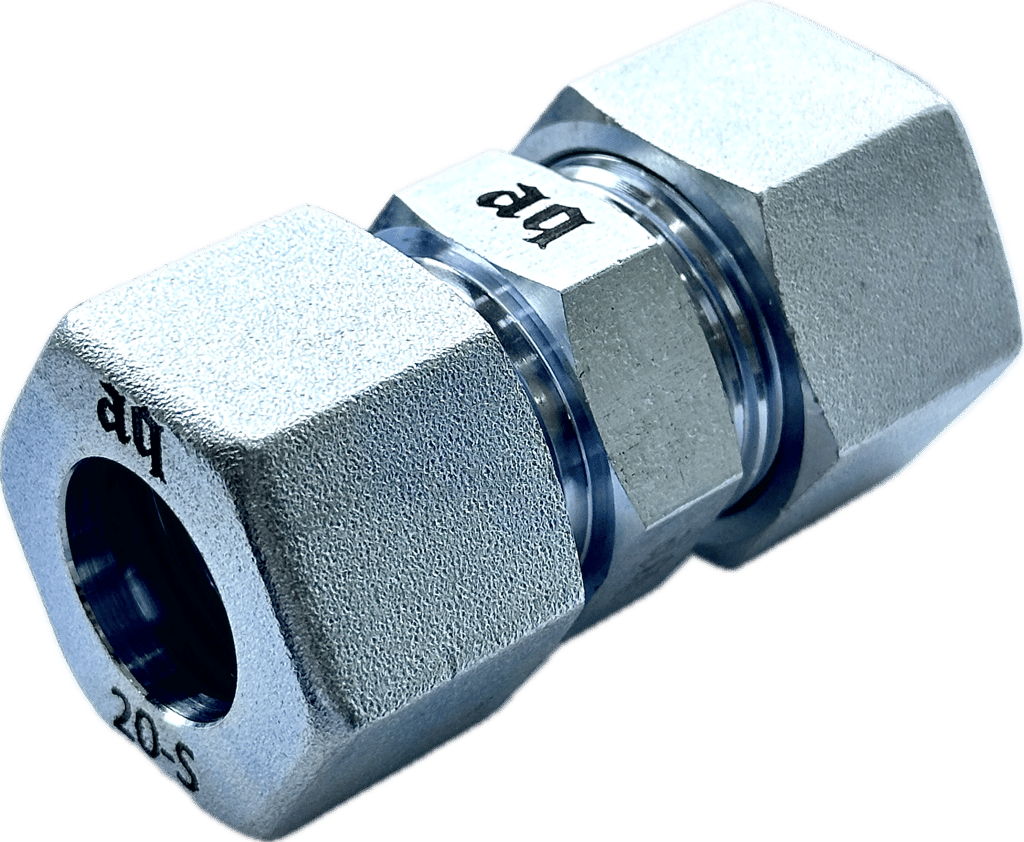

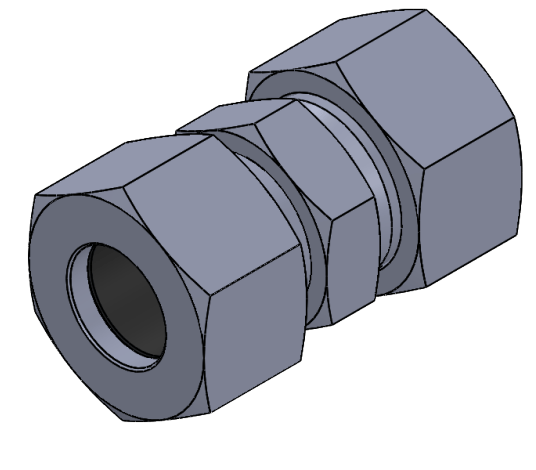

Hydraulic Straight Coupling
With COLD FORGED Nuts for world class performance
Introducing the paramount in tube-to-tube connectors! Our reputation is forged on the exceptional quality we offer. What sets us apart is our unwavering commitment to design and efficiency, ensuring top-tier performance. We aren't just good; we're the best at what we do. What makes us truly stand out is our relentless pursuit of improvement. With us, you're not just getting quality – you're getting the absolute best. When it comes to tube connectors, choose the brand that doesn't settle for good, but constantly strives to be better. Choose us.

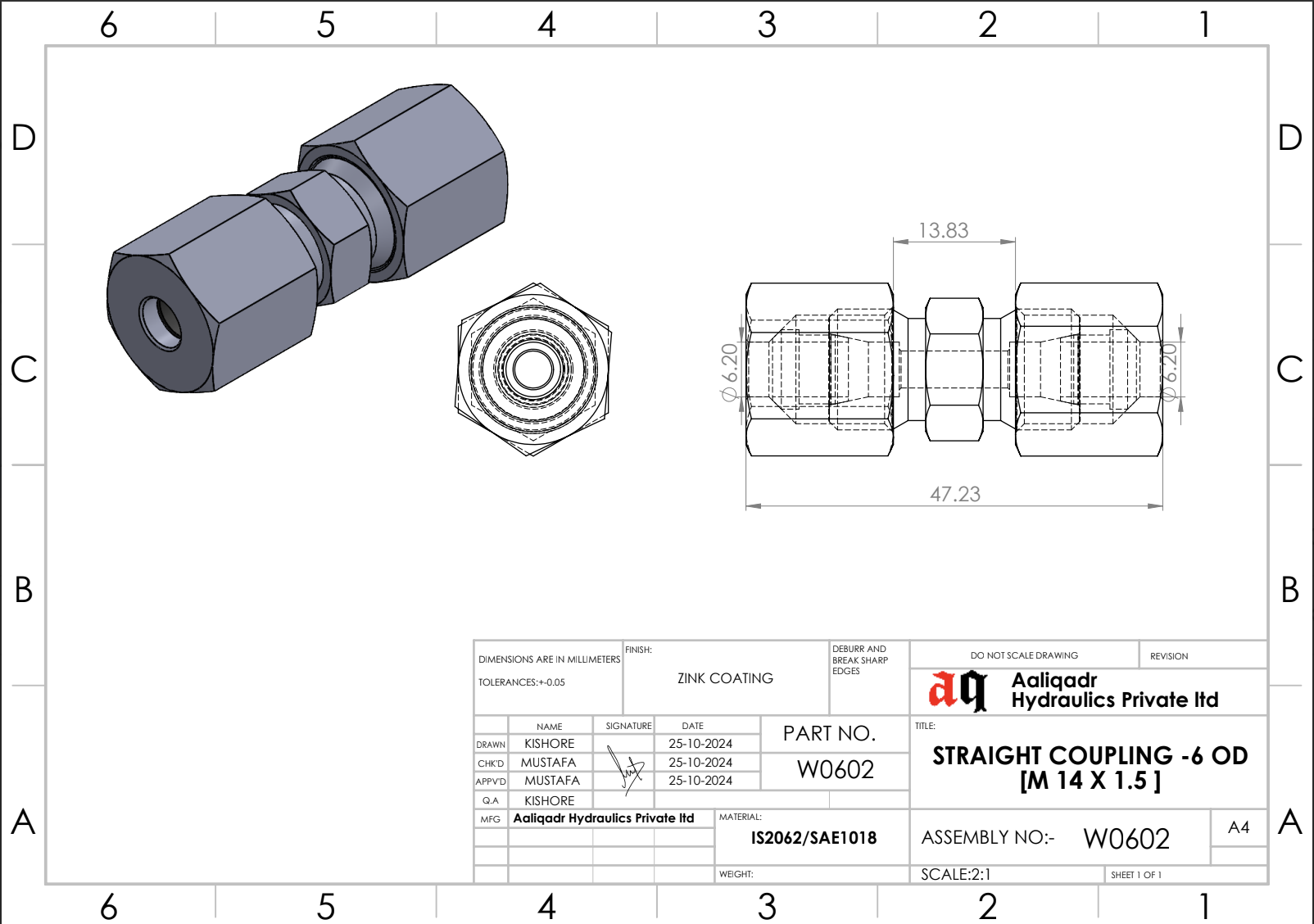

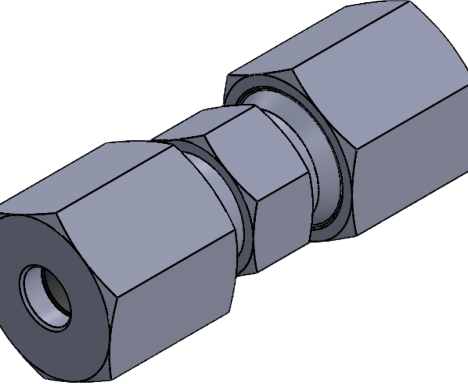

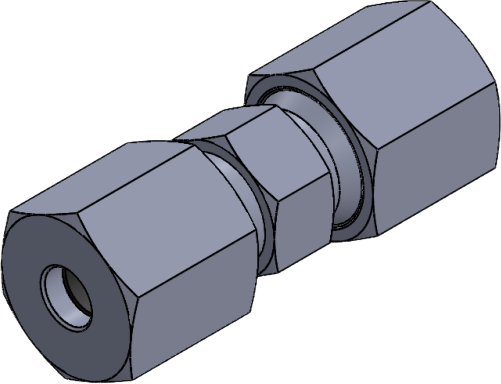

6 OD Straight Coupling
Ferrule Lock Technology. 24° Flareless Fitting.
Technical Information.
6 OD Straight Coupling.
Maximum Operating
Pressure :
Application:
Connection Type:
Connection 4 size:
700 Bars of Dynamic Pressure [ 10,000 PSI Dynamic Pressure ] 70 MPa Dynamic Pressure.
Hydraulic Oil fluid power
Flareless
Flareless Bite Type
Material of Construction:
Connection Tube Diameter:
Brand:
Steel [ SAE 1018 ], Stainless Steel 304 / 316. Zinc Coated for CS.
6 mm OD
Threading Size :
M14 x 1.5 [thread pitch] - nut & body

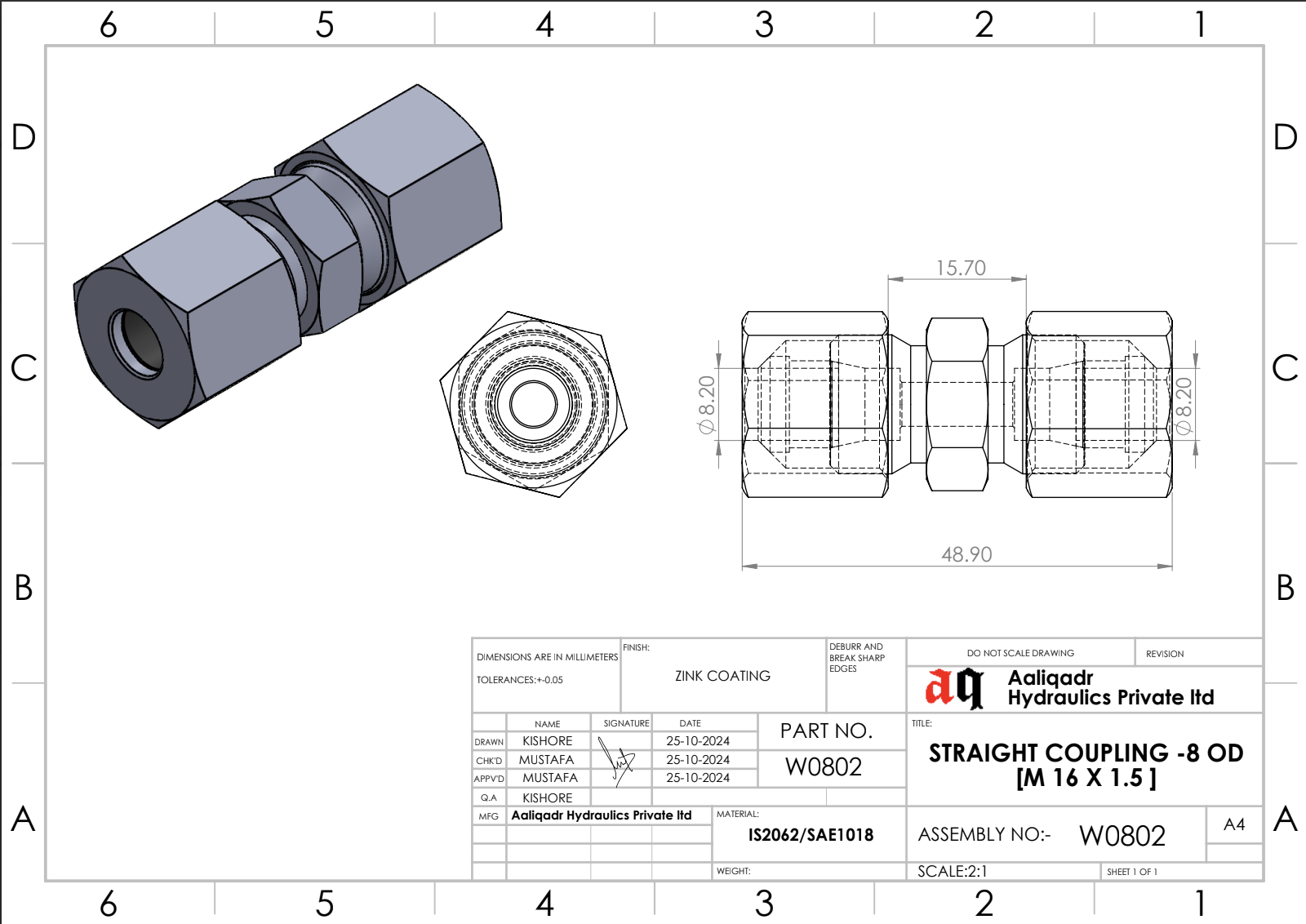

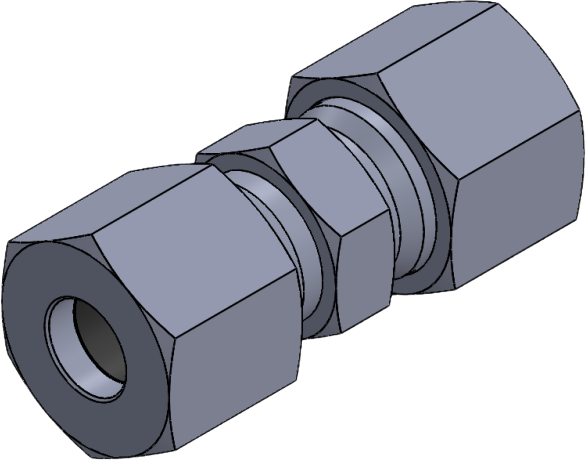

8 OD Straight Coupling
Ferrule Lock Technology. 24° Flareless Fitting.
Technical Information.
8 OD Straight Coupling.
Maximum Operating
Pressure :
Application:
Connection Type:
Connection 4 size:
700 Bars of Dynamic Pressure [ 10,000 PSI Dynamic Pressure ] 70 MPa Dynamic Pressure.
Hydraulic Oil fluid power
Flareless
Flareless Bite Type
Material of Construction:
Connection Tube Diameter:
Brand:
Steel [ SAE 1018 ], Stainless Steel 304 / 316. Zinc Coated for CS.
8 mm OD
Threading Size :
M16 x 1.5 [thread pitch] - nut & body

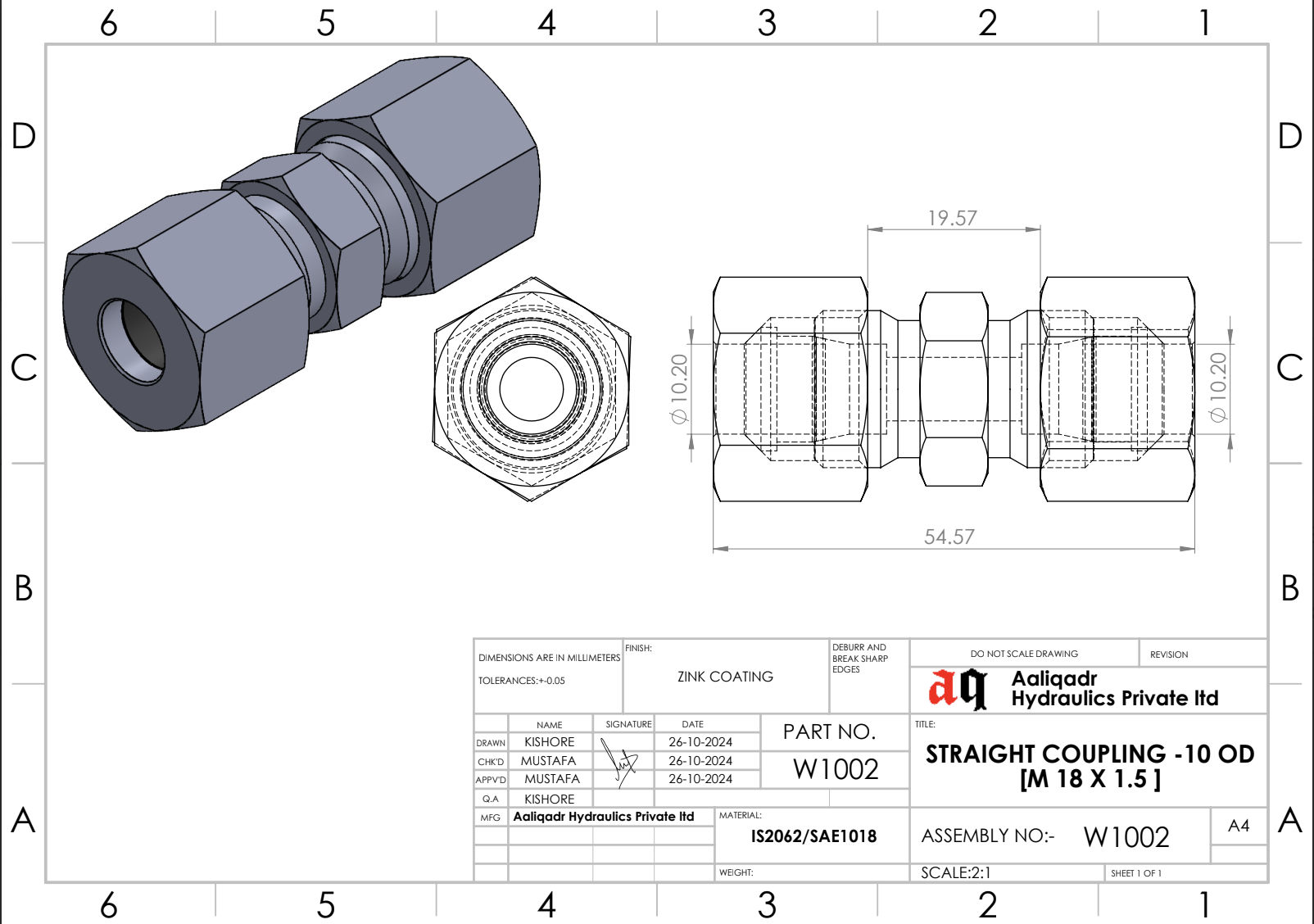

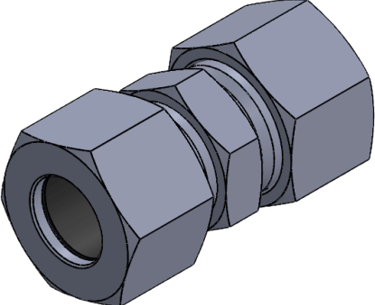

10 OD Straight Coupling
Ferrule Lock Technology. 24° Flareless Fitting.
Technical Information.
10 OD Straight Coupling.
Maximum Operating
Pressure :
Application:
Connection Type:
Connection 4 size:
700 Bars of Dynamic Pressure [ 10,000 PSI Dynamic Pressure ] 70 MPa Dynamic Pressure.
Hydraulic Oil fluid power
Flareless
Flareless Bite Type
Material of Construction:
Connection Tube Diameter:
Brand:
Steel [ SAE 1018 ], Stainless Steel 304 / 316. Zinc Coated for CS.
10 mm OD
Threading Size :
M18 x 1.5 [thread pitch] - nut & body

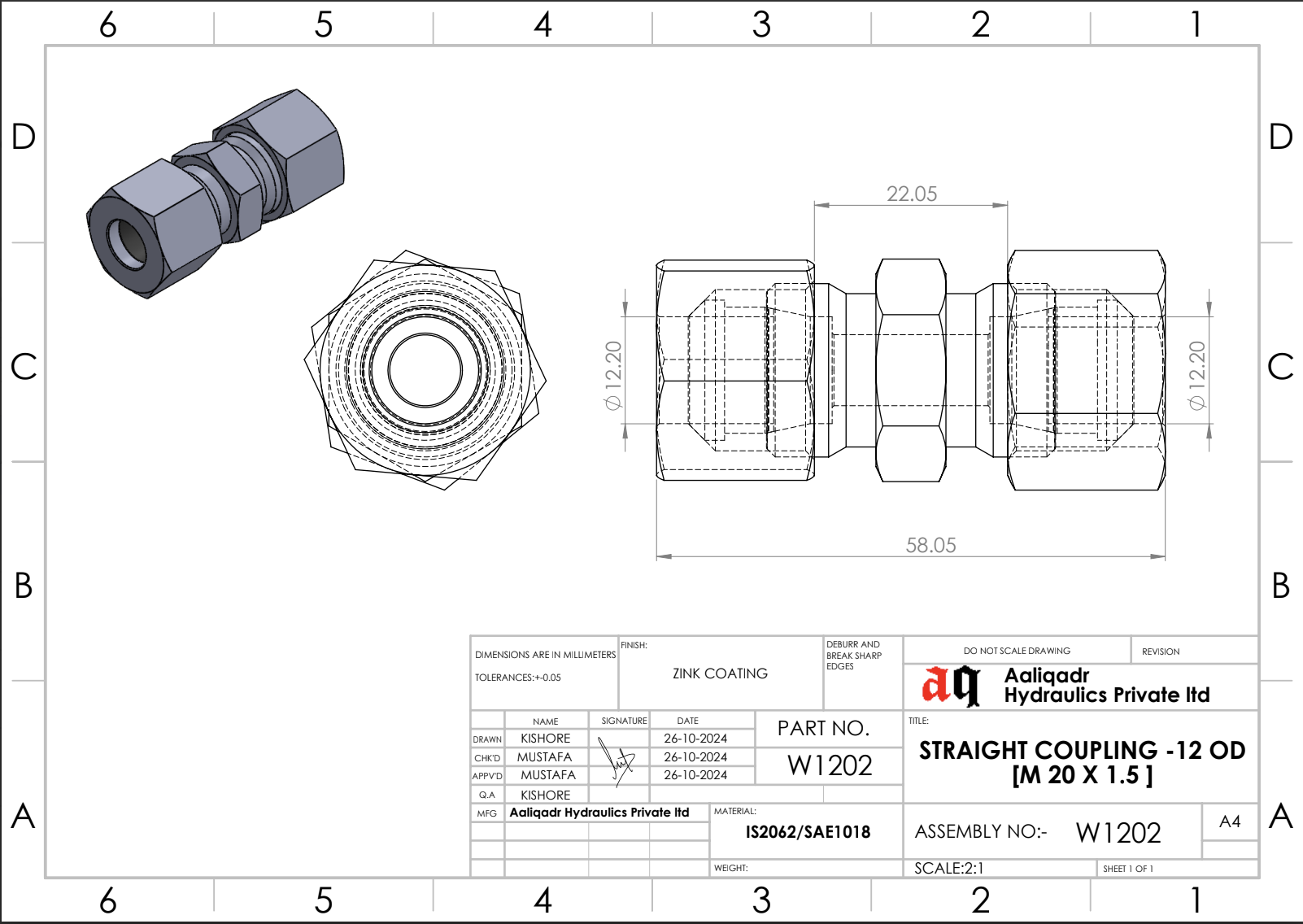

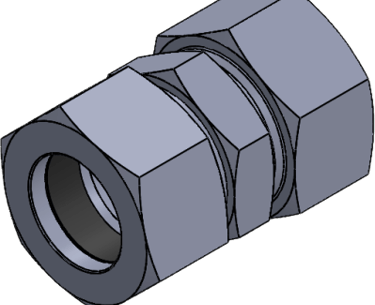

12 OD Straight Coupling
Ferrule Lock Technology. 24° Flareless Fitting.
Technical Information.
12 OD Straight Coupling.
Maximum Operating
Pressure :
Application:
Connection Type:
Connection 4 size:
700 Bars of Dynamic Pressure [ 10,000 PSI Dynamic Pressure ] 70 MPa Dynamic Pressure.
Hydraulic Oil fluid power
Flareless
Flareless Bite Type
Material of Construction:
Connection Tube Diameter:
Brand:
Steel [ SAE 1018 ], Stainless Steel 304 / 316. Zinc Coated for CS.
12 mm OD
Threading Size :
M20 x 1.5 [thread pitch] - nut & body

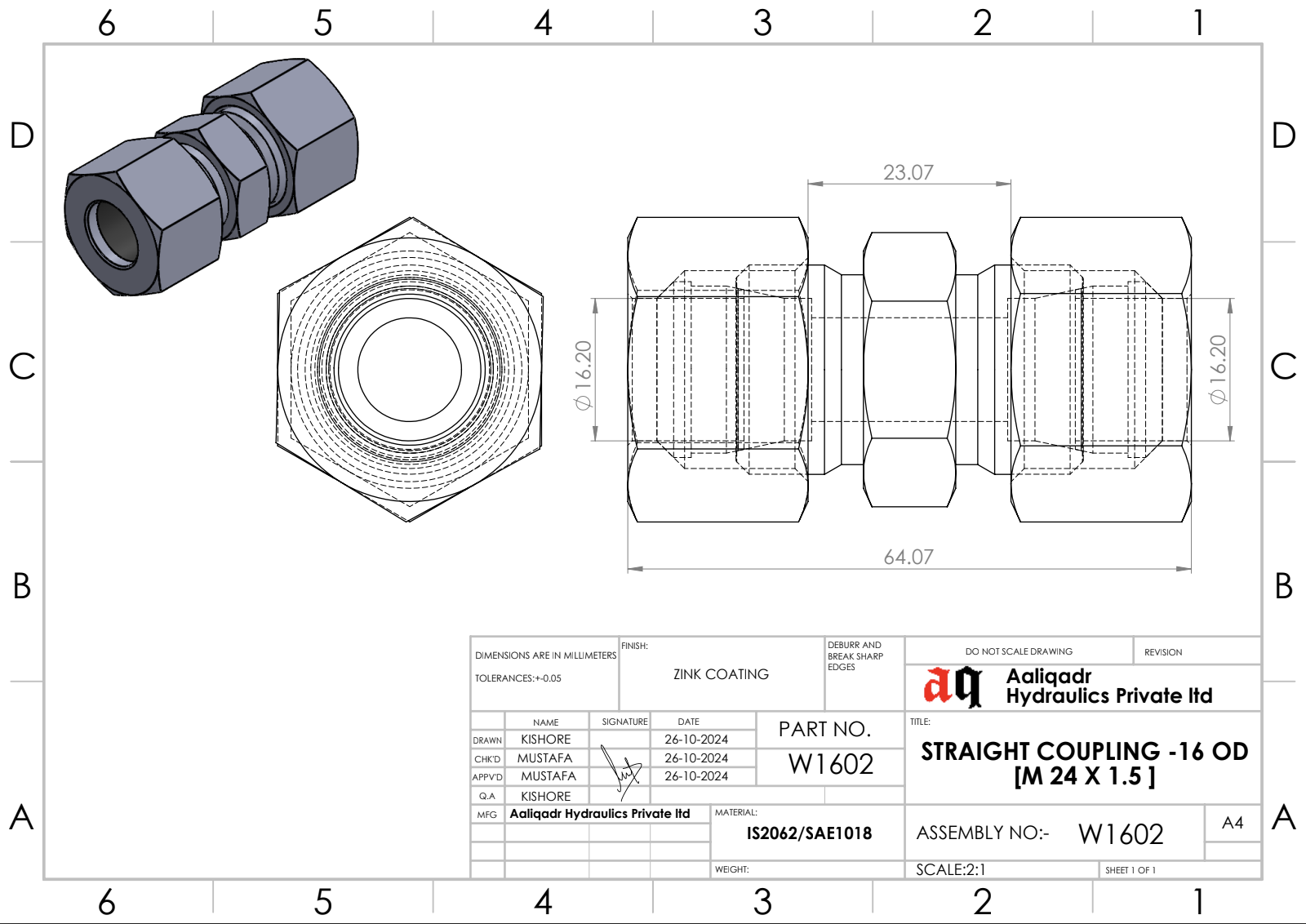

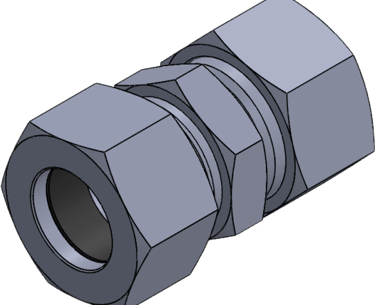

16 OD Straight Coupling
Ferrule Lock Technology. 24° Flareless Fitting.
Technical Information.
16 OD Straight Coupling.
Maximum Operating
Pressure :
Application:
Connection Type:
Connection 4 size:
350 Bars of Dynamic Pressure [ 5,000 PSI Dynamic Pressure ] 35 MPa Dynamic Pressure.
Hydraulic Oil fluid power
Flareless
Flareless Bite Type
Material of Construction:
Connection Tube Diameter:
Brand:
Steel [ SAE 1018 ], Stainless Steel 304 / 316. Zinc Coated for CS.
16 mm OD
Threading Size :
M24 x 1.5 [thread pitch] - nut & body

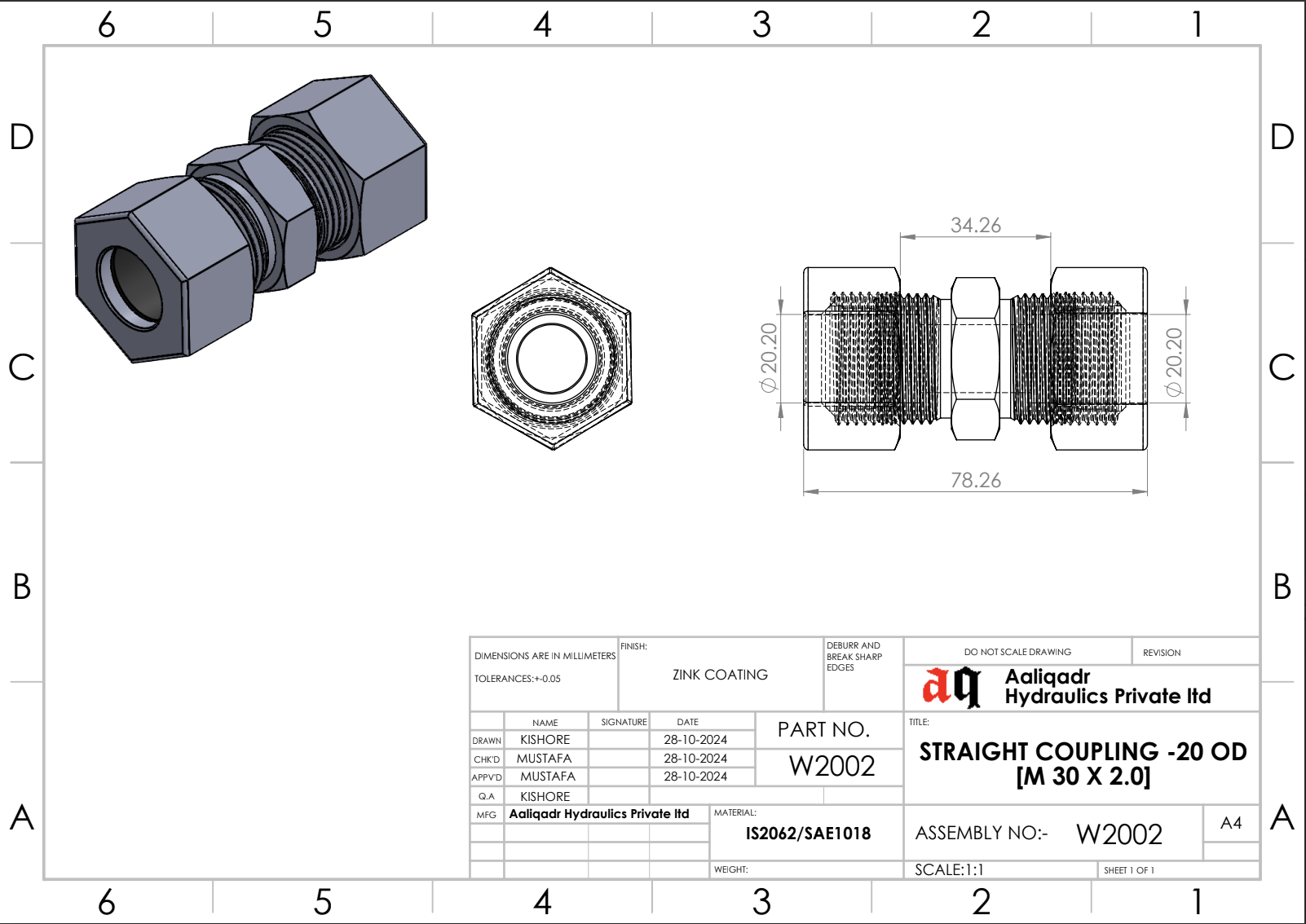

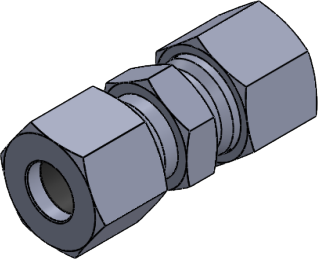

20 OD Straight Coupling
Ferrule Lock Technology. 24° Flareless Fitting.
Technical Information.
20 OD Straight Coupling.
Maximum Operating
Pressure :
Application:
Connection Type:
Connection 4 size:
350 Bars of Dynamic Pressure [ 5,000 PSI Dynamic Pressure ] 28 MPa Dynamic Pressure.
Hydraulic Oil fluid power
Flareless
Flareless Bite Type
Material of Construction:
Connection Tube Diameter:
Brand:
Steel [ SAE 1018 ], Stainless Steel 304 / 316. Zinc Coated for CS.
20 mm OD
Threading Size :
M30 x 2.0 [thread pitch] - nut & body

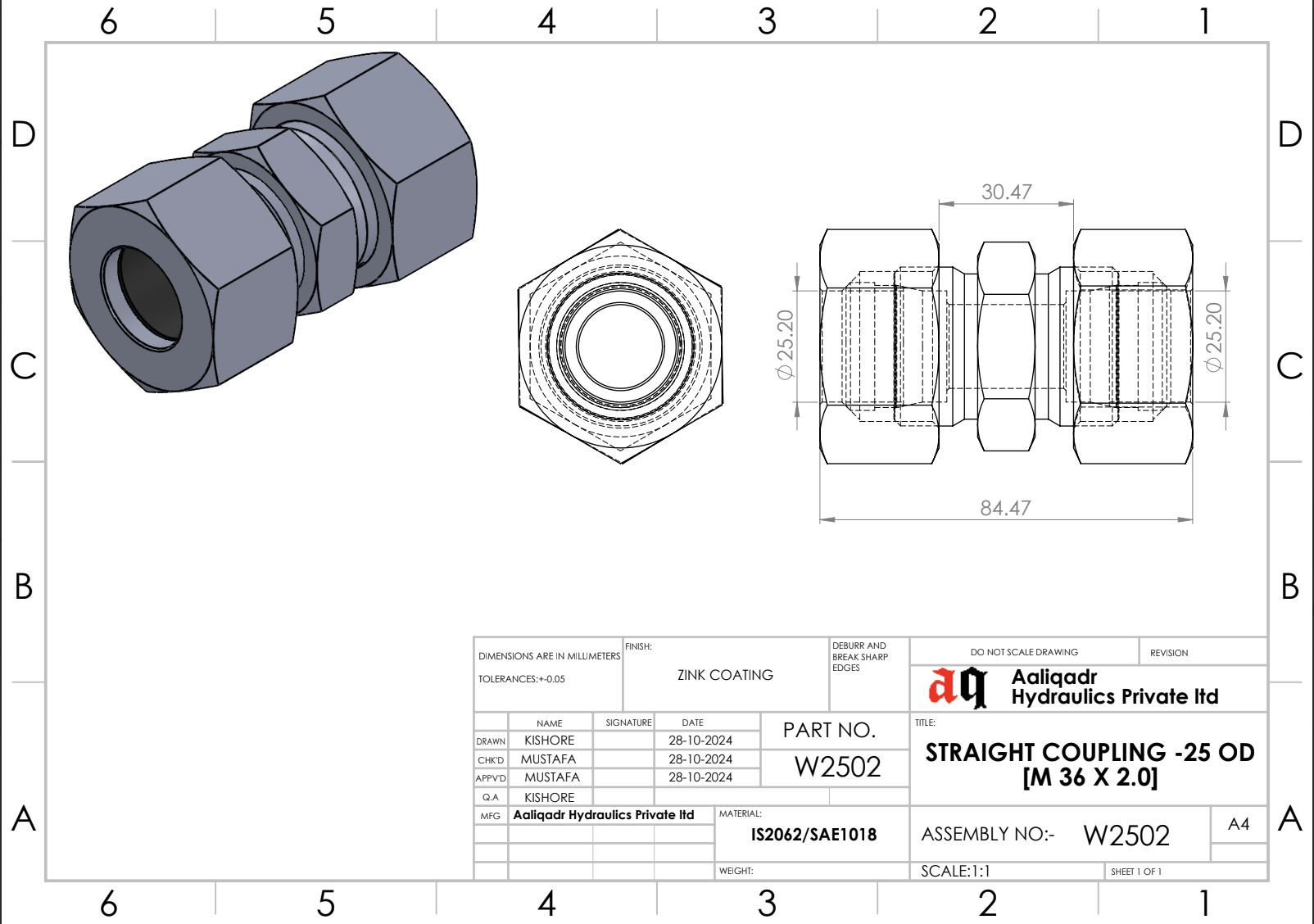

25 OD Straight Coupling
Ferrule Lock Technology. 24° Flareless Fitting.
Technical Information.
25 OD Straight Coupling.
Maximum Operating
Pressure :
Application:
Connection Type:
Connection 4 size:
350 Bars of Dynamic Pressure [ 5,000 PSI Dynamic Pressure ] 35 MPa Dynamic Pressure.
Hydraulic Oil fluid power
Flareless
Flareless Bite Type
Material of Construction:
Connection Tube Diameter:
Brand:
Steel [ SAE 1018 ], Stainless Steel 304 / 316. Zinc Coated for CS.
25 mm OD
Threading Size :
M36 x 2.0 [thread pitch] - nut & body

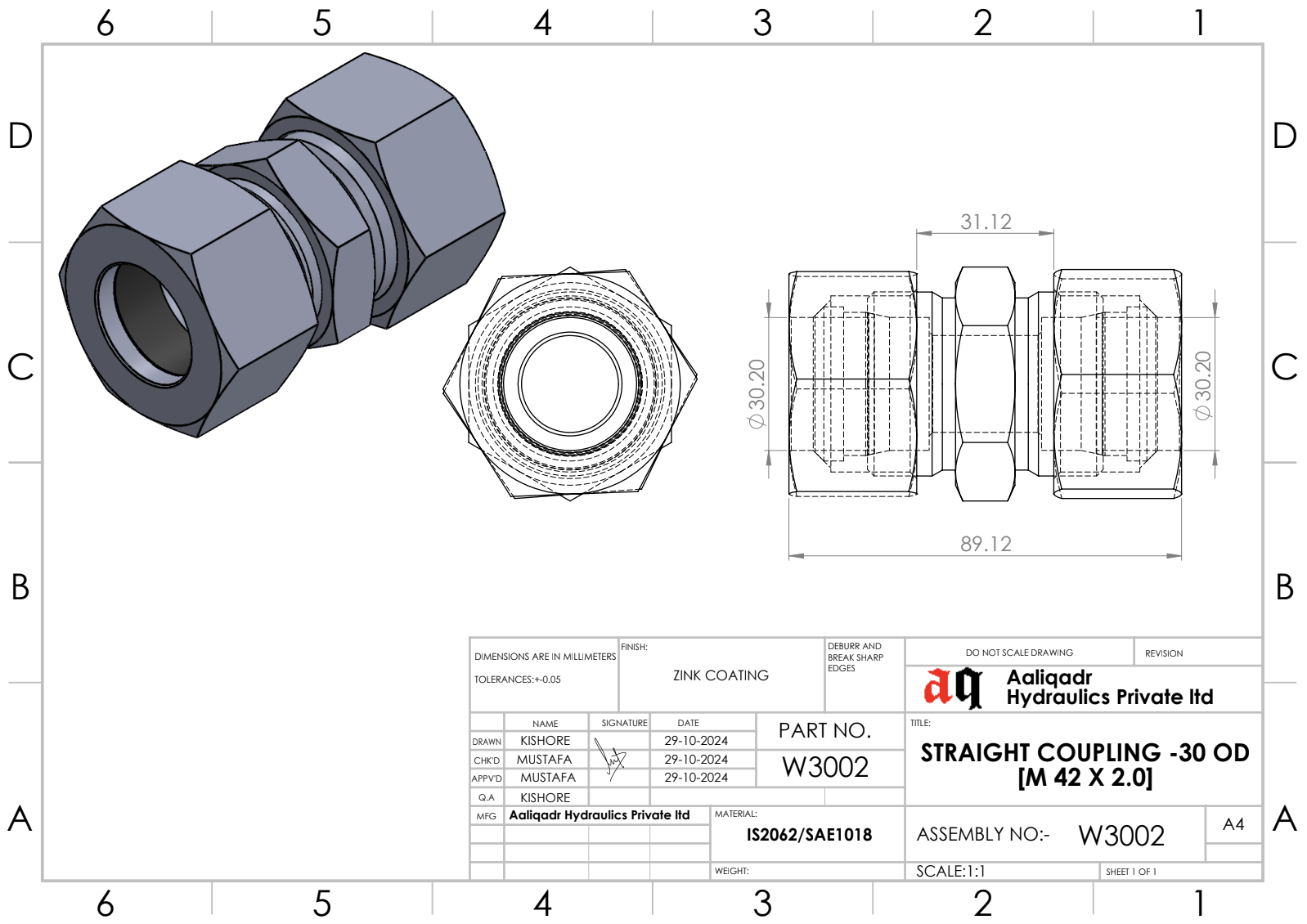

30 OD Straight Coupling
Ferrule Lock Technology. 24° Flareless Fitting.
Technical Information.
30 OD Straight Coupling.
Maximum Operating
Pressure :
Application:
Connection Type:
Connection 4 size:
280 Bars of Dynamic Pressure [ 4,100 PSI Dynamic Pressure ] 28 MPa Dynamic Pressure.
Hydraulic Oil fluid power
Flareless
Flareless Bite Type
Material of Construction:
Connection Tube Diameter:
Brand:
Steel [ SAE 1018 ], Stainless Steel 304 / 316. Zinc Coated for CS.
30 mm OD
Threading Size :
M42 x 2.0 [thread pitch] - nut & body

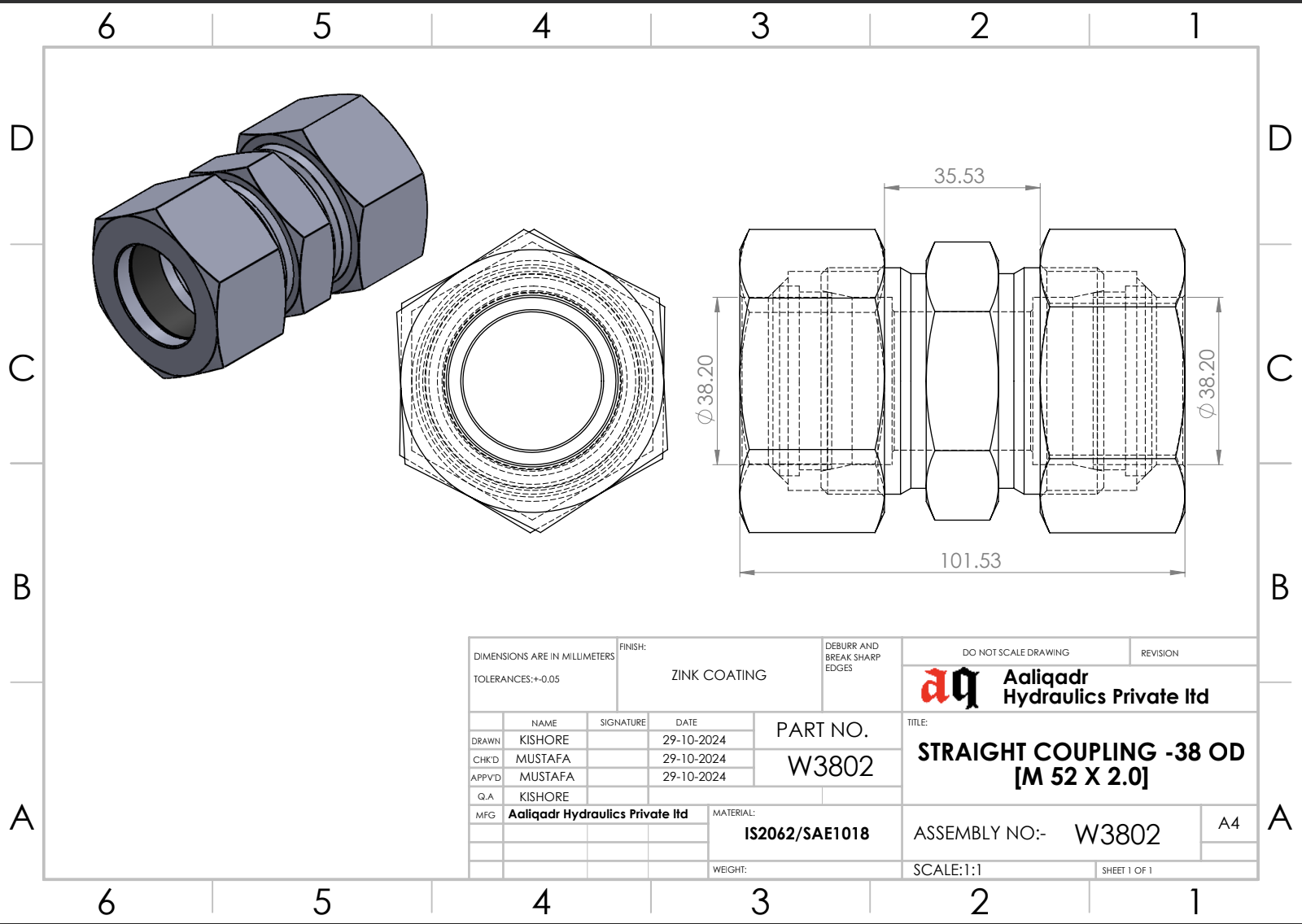

38 OD Straight Coupling
Ferrule Lock Technology. 24° Flareless Fitting.
Technical Information.
38 OD Straight Coupling.
Maximum Operating
Pressure :
Application:
Connection Type:
Connection 4 size:
280 Bars of Dynamic Pressure [ 4,100 PSI Dynamic Pressure ] 28 MPa Dynamic Pressure.
Hydraulic Oil fluid power
Flareless
Flareless Bite Type
Material of Construction:
Connection Tube Diameter:
Brand:
Steel [ SAE 1018 ], Stainless Steel 304 / 316. Zinc Coated for CS.
38 mm OD
Threading Size :
M52 x 2.0 [thread pitch] - nut & body
