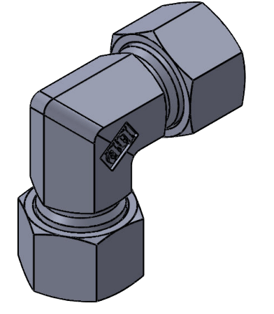

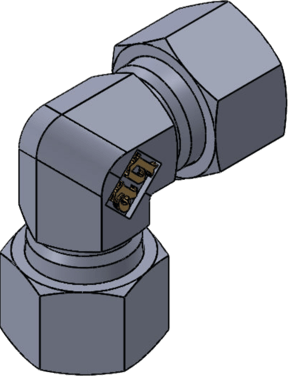

Equal Elbow [ Elbow - Union ]
Series : L [ Low / pressure ] — W03
Introducing the paramount in tube-to-tube connectors! Our reputation is forged on the exceptional quality we offer. What sets us apart is our unwavering commitment to design and efficiency, ensuring top-tier performance. We aren't just good; we're the best at what we do. What makes us truly stand out is our relentless pursuit of improvement. With us, you're not just getting quality – you're getting the absolute best. When it comes to tube connectors, choose the brand that doesn't settle for good, but constantly strives to be better. Choose us.

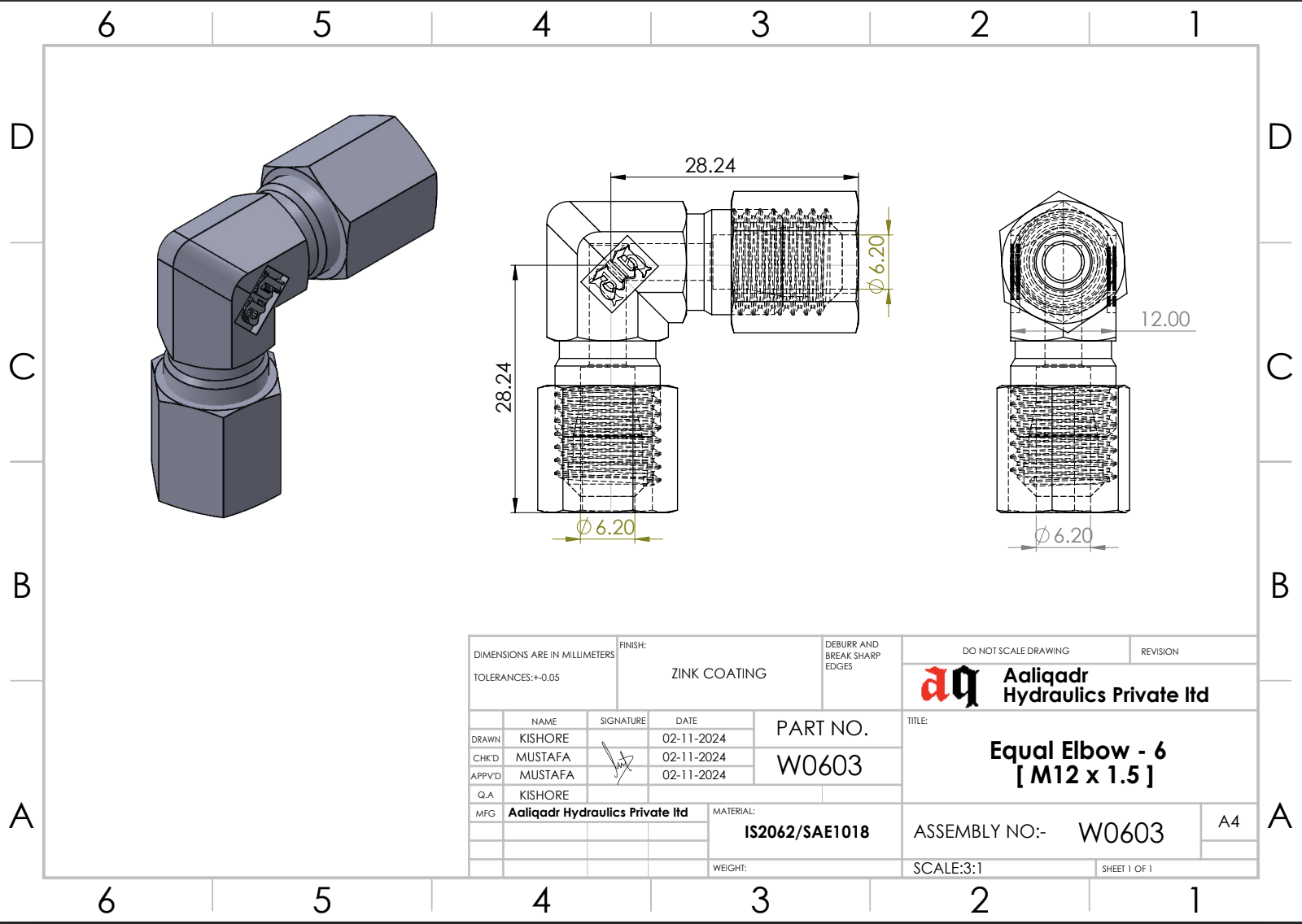

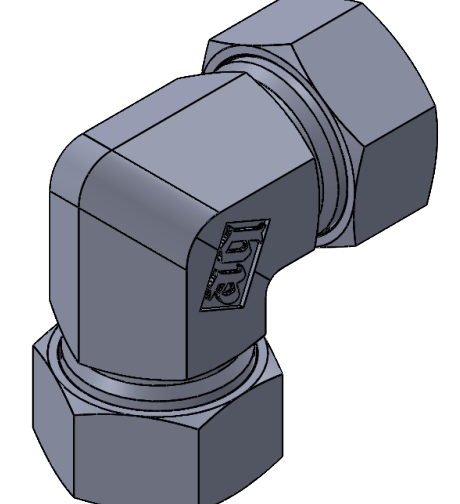

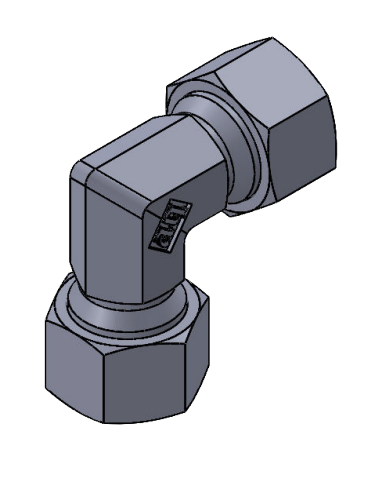

6L Equal Elbow.
Ferrule Lock Technology. 24° Flareless Fitting.
Technical Information.
6L Equal Elbow
Maximum Operating
Pressure :
Application:
Connection Type:
Connection 4 size:
500 Bars of Dynamic Pressure [ 7,250 PSI Dynamic Pressure ] 50 MPa Dynamic Pressure.
Hydraulic Oil fluid power
Flareless
Flareless Bite Type
Material of Construction:
Connection Tube Diameter:
Brand:
Steel [ SAE 1018 ], Stainless Steel 304 / 316. Zinc Coated for CS.
6 mm OD
Threading Size :
M12 x 1.5 [thread pitch] - nut & body

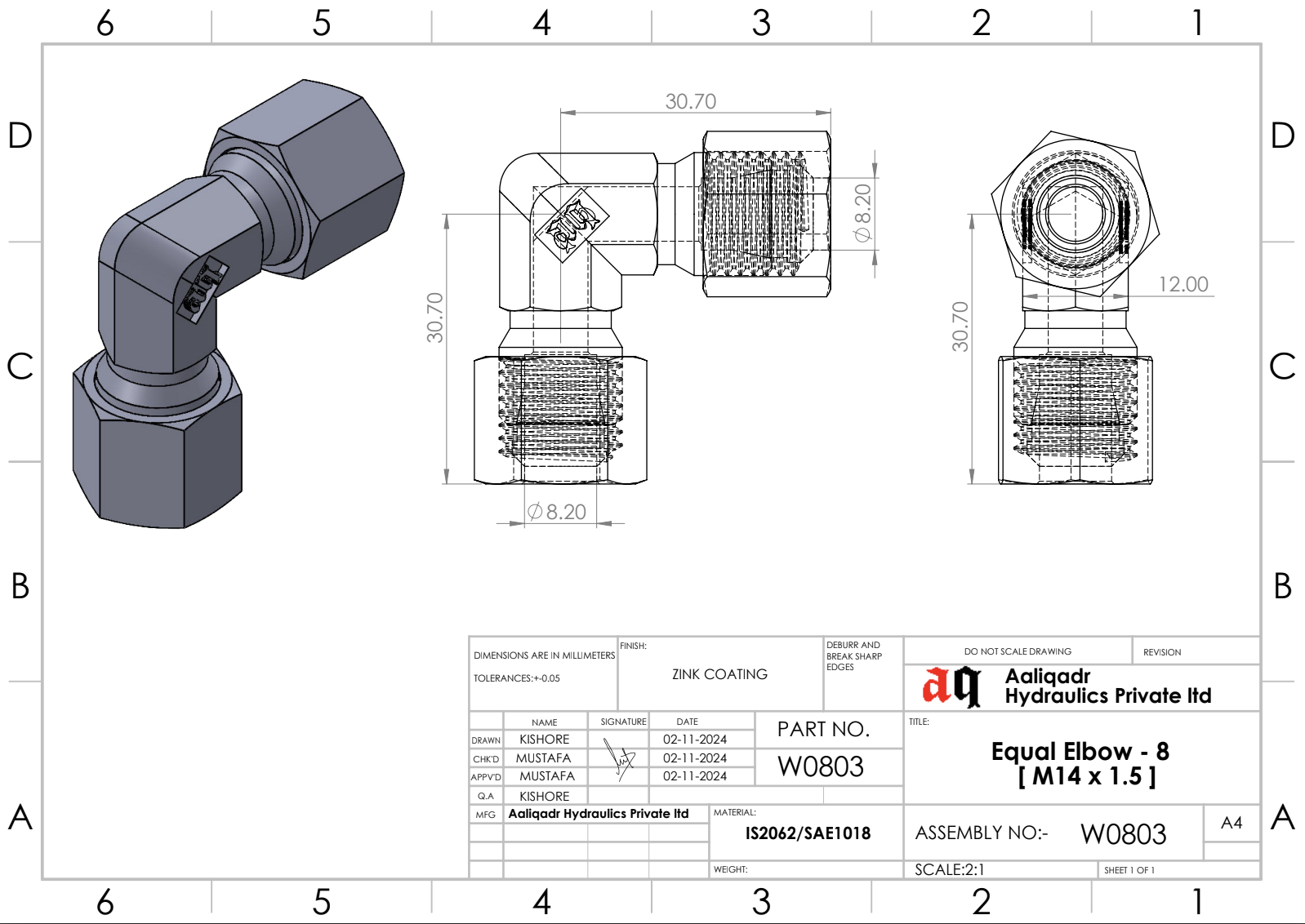

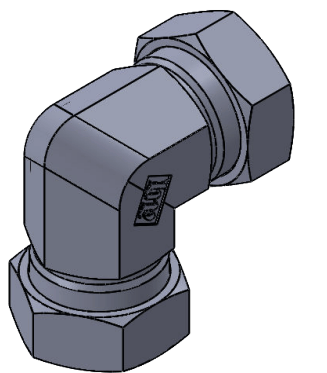

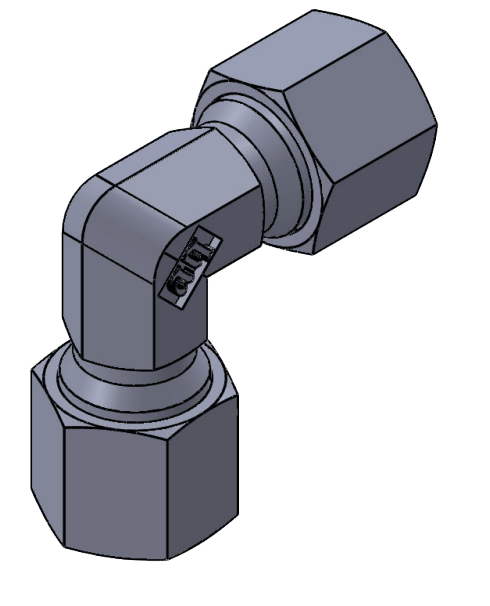

8L Equal Elbow.
Ferrule Lock Technology. 24° Flareless Fitting.
Technical Information.
8L Equal Elbow.
Maximum Operating
Pressure :
Application:
Connection Type:
Connection 4 size:
500 Bars of Dynamic Pressure [ 7,250 PSI Dynamic Pressure ] 50 MPa Dynamic Pressure.
Hydraulic Oil fluid power
Flareless
Flareless Bite Type
Material of Construction:
Connection Tube Diameter:
Brand:
Steel [ SAE 1018 ], Stainless Steel 304 / 316. Zinc Coated for CS.
8 mm OD
Threading Size :
M14 x 1.5 [thread pitch] - nut & body

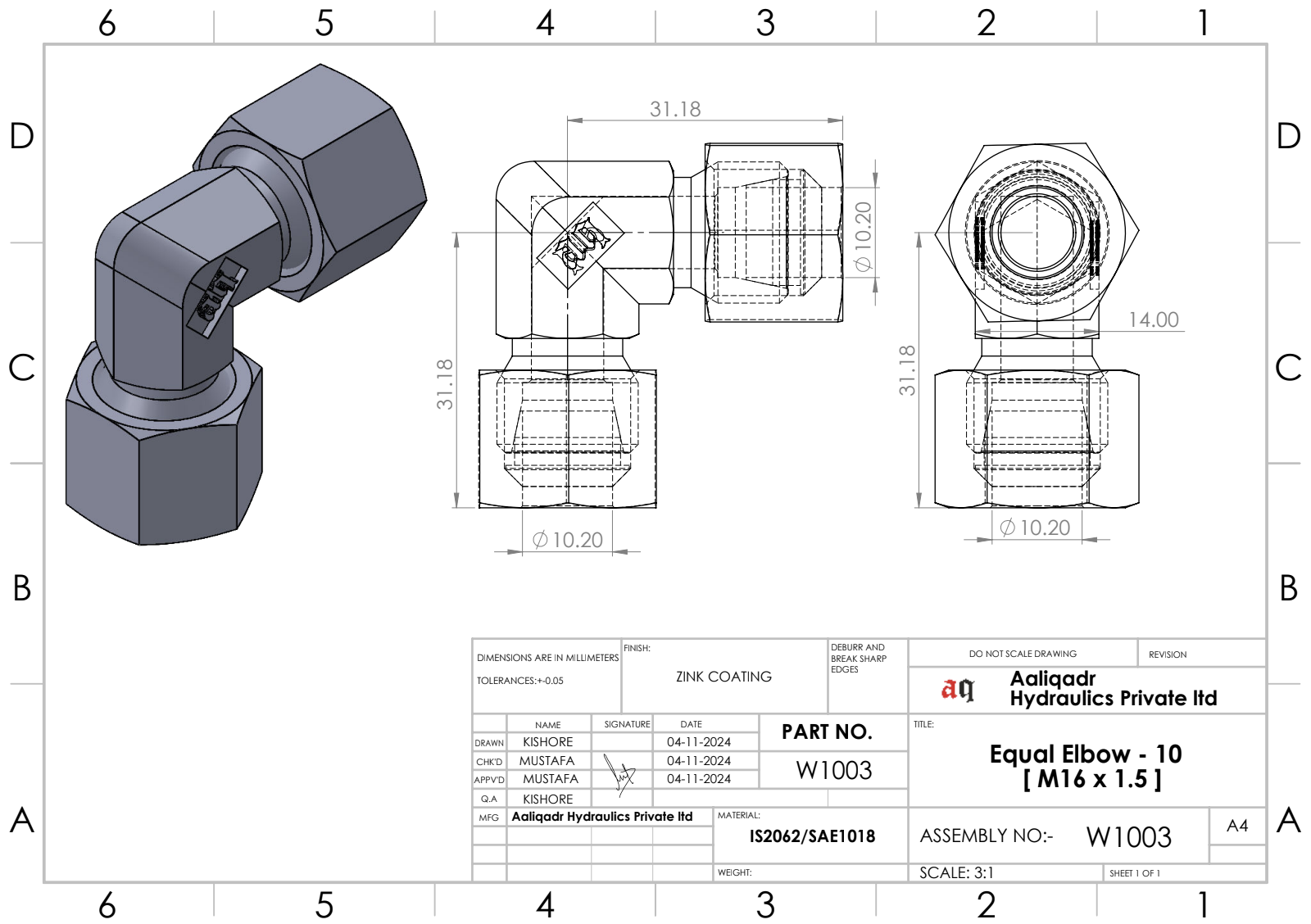

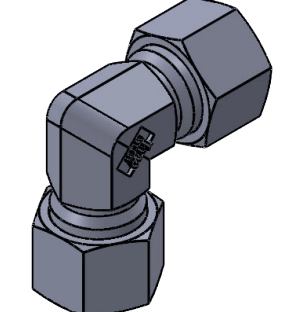

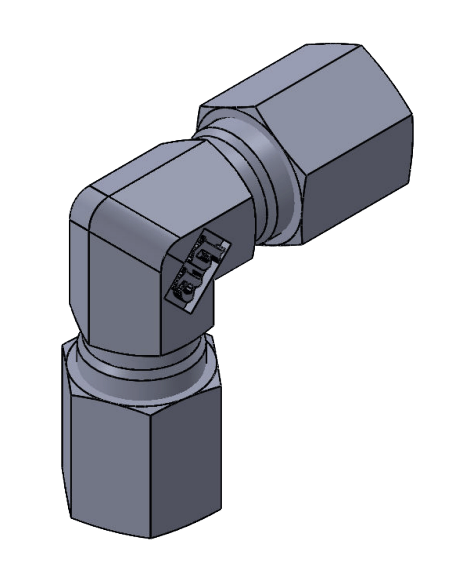

10L Equal Elbow.
Ferrule Lock Technology. 24° Flareless Fitting.
Technical Information.
10L Equal Elbow.
Maximum Operating
Pressure :
Application:
Connection Type:
Connection 4 size:
500 Bars of Dynamic Pressure [ 7,250 PSI Dynamic Pressure ] 50 MPa Dynamic Pressure.
Hydraulic Oil fluid power
Flareless
Flareless Bite Type
Material of Construction:
Connection Tube Diameter:
Brand:
Steel [ SAE 1018 ], Stainless Steel 304 / 316. Zinc Coated for CS.
10 mm OD
Threading Size :
M16 x 1.5 [thread pitch] - nut & body

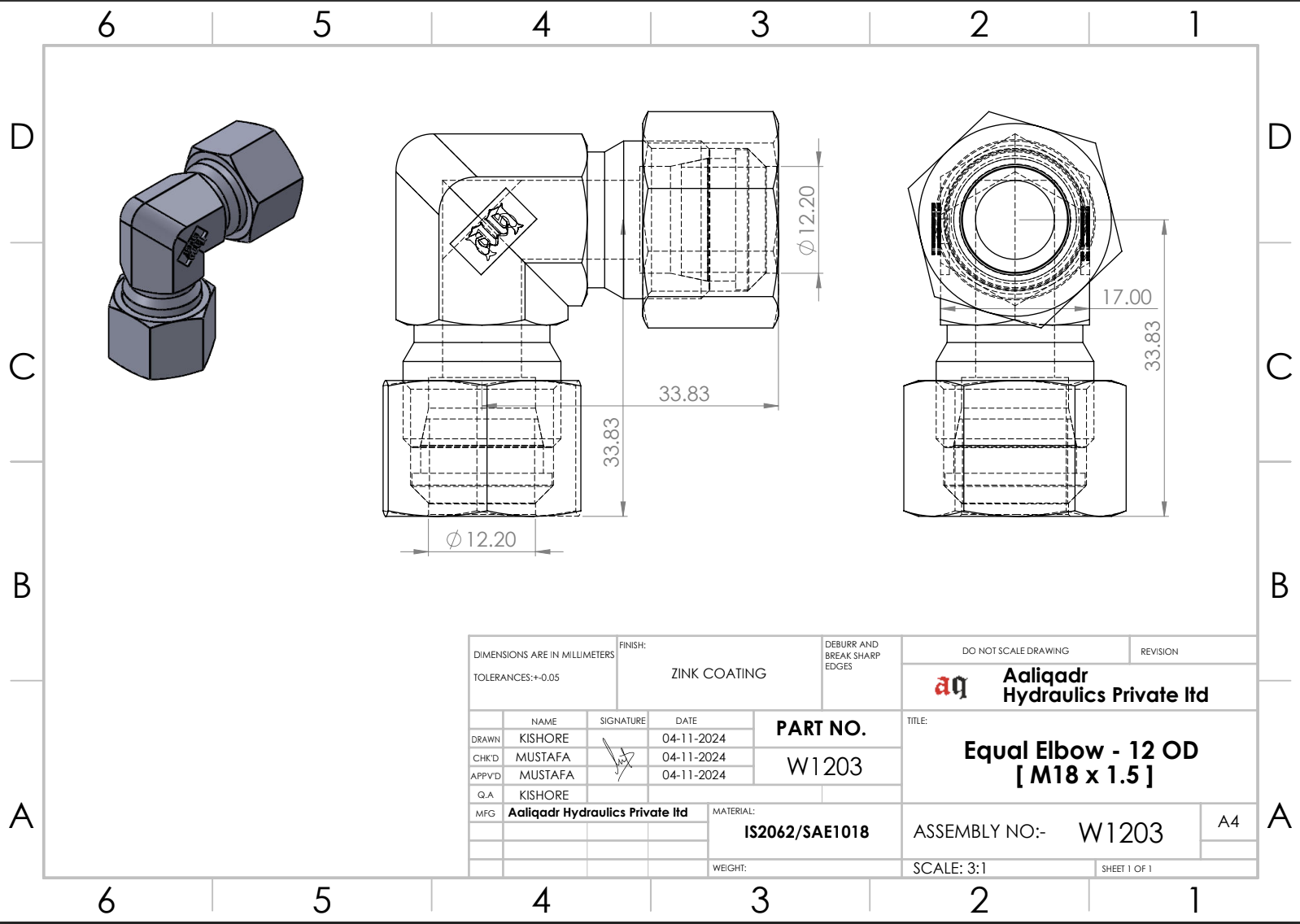

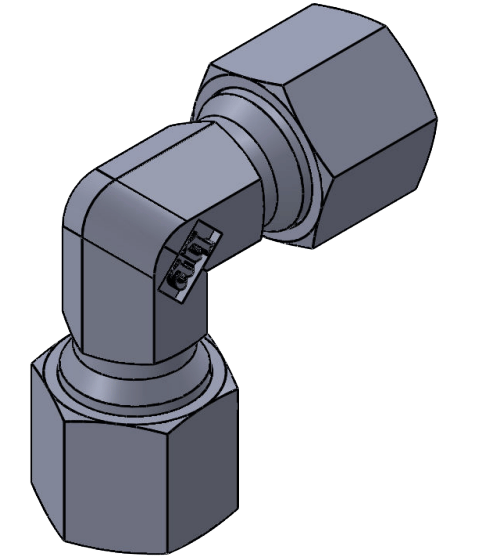

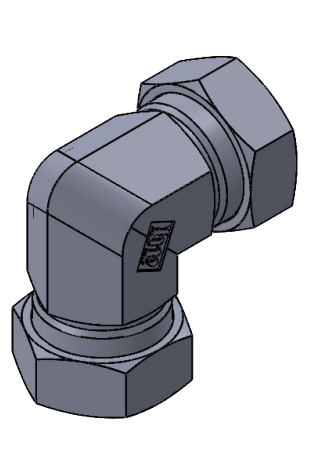

12L Equal Elbow.
Ferrule Lock Technology. 24° Flareless Fitting.
Technical Information.
12L Equal Elbow.
Maximum Operating
Pressure :
Application:
Connection Type:
Connection 4 size:
400 Bars of Dynamic Pressure [ 5800 PSI Dynamic Pressure ] 40 MPa Dynamic Pressure.
Hydraulic Oil fluid power
Flareless
Flareless Bite Type
Material of Construction:
Connection Tube Diameter:
Brand:
Steel [ SAE 1018 ], Stainless Steel 304 / 316. Zinc Coated for CS.
12 mm OD
Threading Size :
M18 x 1.5 [thread pitch] - nut & body

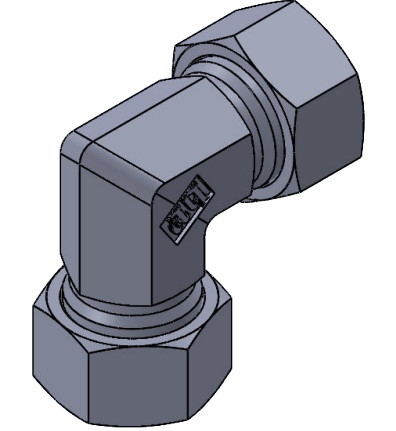

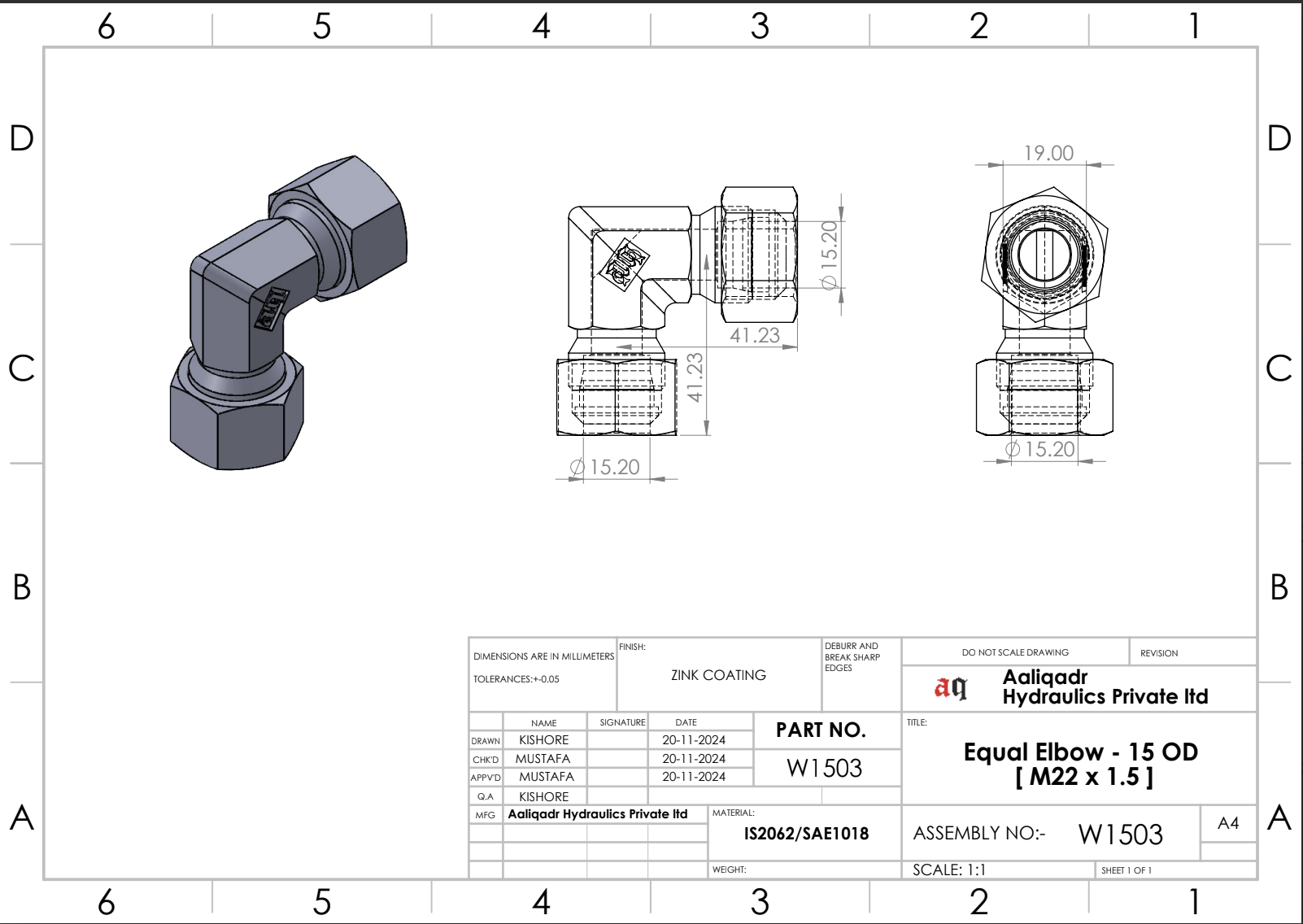

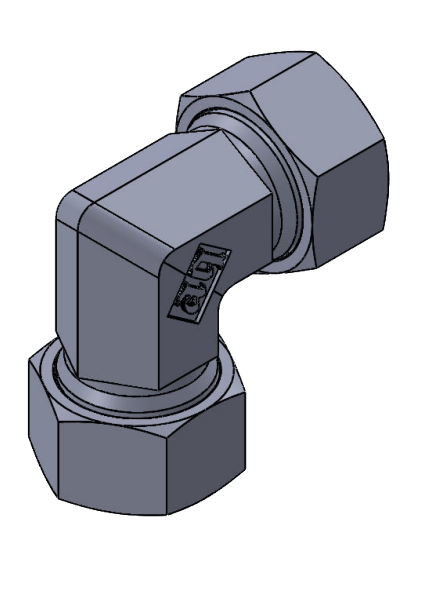

15L Equal Elbow.
Ferrule Lock Technology. 24° Flareless Fitting.
Technical Information.
15L Equal Elbow.
Maximum Operating
Pressure :
Application:
Connection Type:
Connection 4 size:
400 Bars of Dynamic Pressure [ 5,800 PSI Dynamic Pressure ] 40 MPa Dynamic Pressure.
Hydraulic Oil fluid power
Flareless
Flareless Bite Type
Material of Construction:
Connection Tube Diameter:
Brand:
Steel [ SAE 1018 ], Stainless Steel 304 / 316. Zinc Coated for CS.
15 mm OD
Threading Size :
M22 x 1.5 [thread pitch] - nut & body

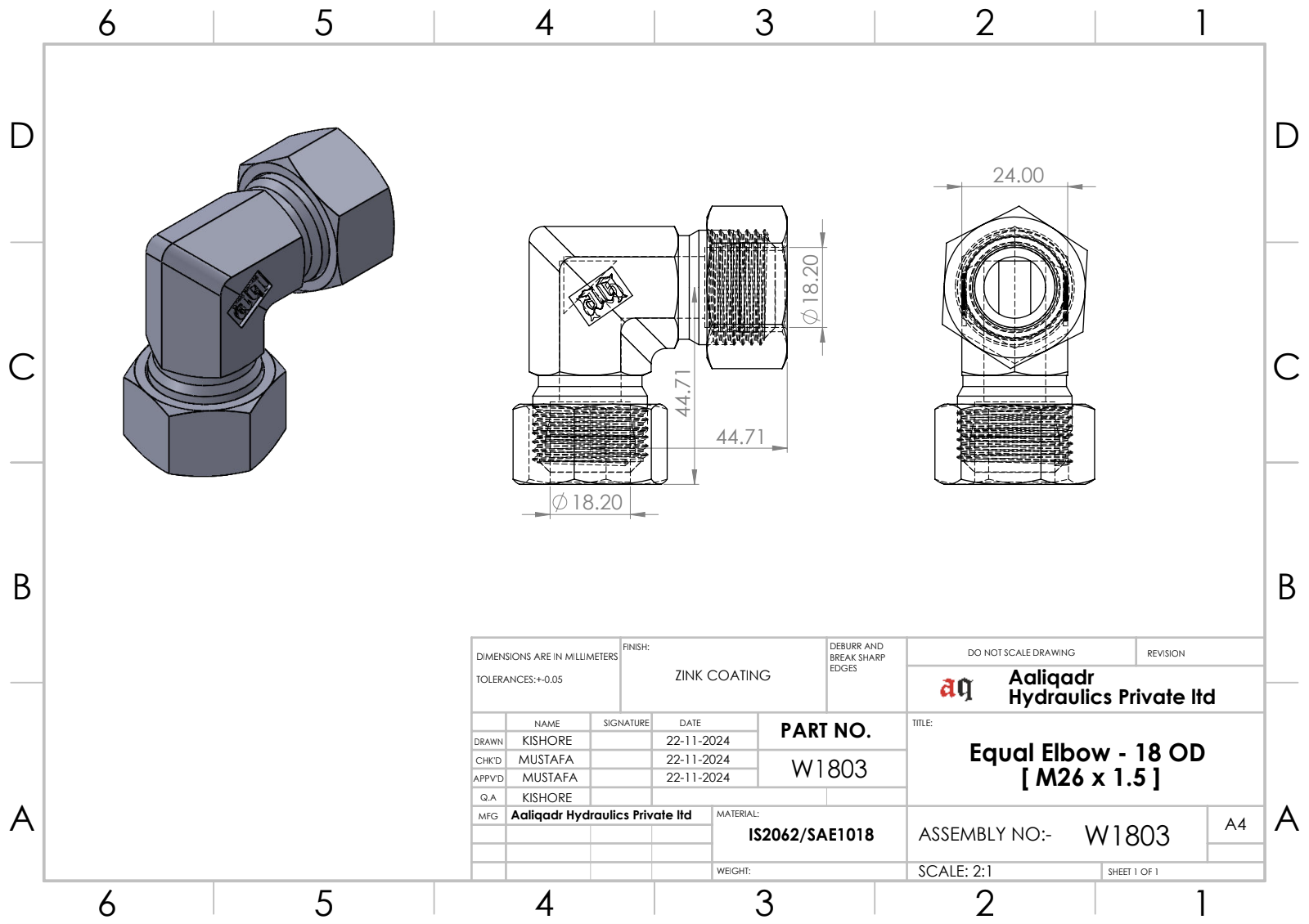

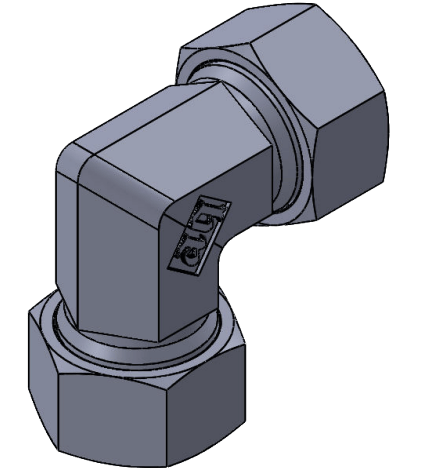

18L Equal Elbow.
Ferrule Lock Technology. 24° Flareless Fitting.
Technical Information.
18L Equal Elbow.
Maximum Operating
Pressure :
Application:
Connection Type:
Connection 4 size:
400 Bars of Dynamic Pressure [ 5,800 PSI Dynamic Pressure ] 40 MPa Dynamic Pressure.
Hydraulic Oil fluid power
Flareless
Flareless Bite Type
Material of Construction:
Connection Tube Diameter:
Brand:
Steel [ SAE 1018 ], Stainless Steel 304 / 316. Zinc Coated for CS.
18 mm OD
Threading Size :
M26 x 1.5 [thread pitch] - nut & body

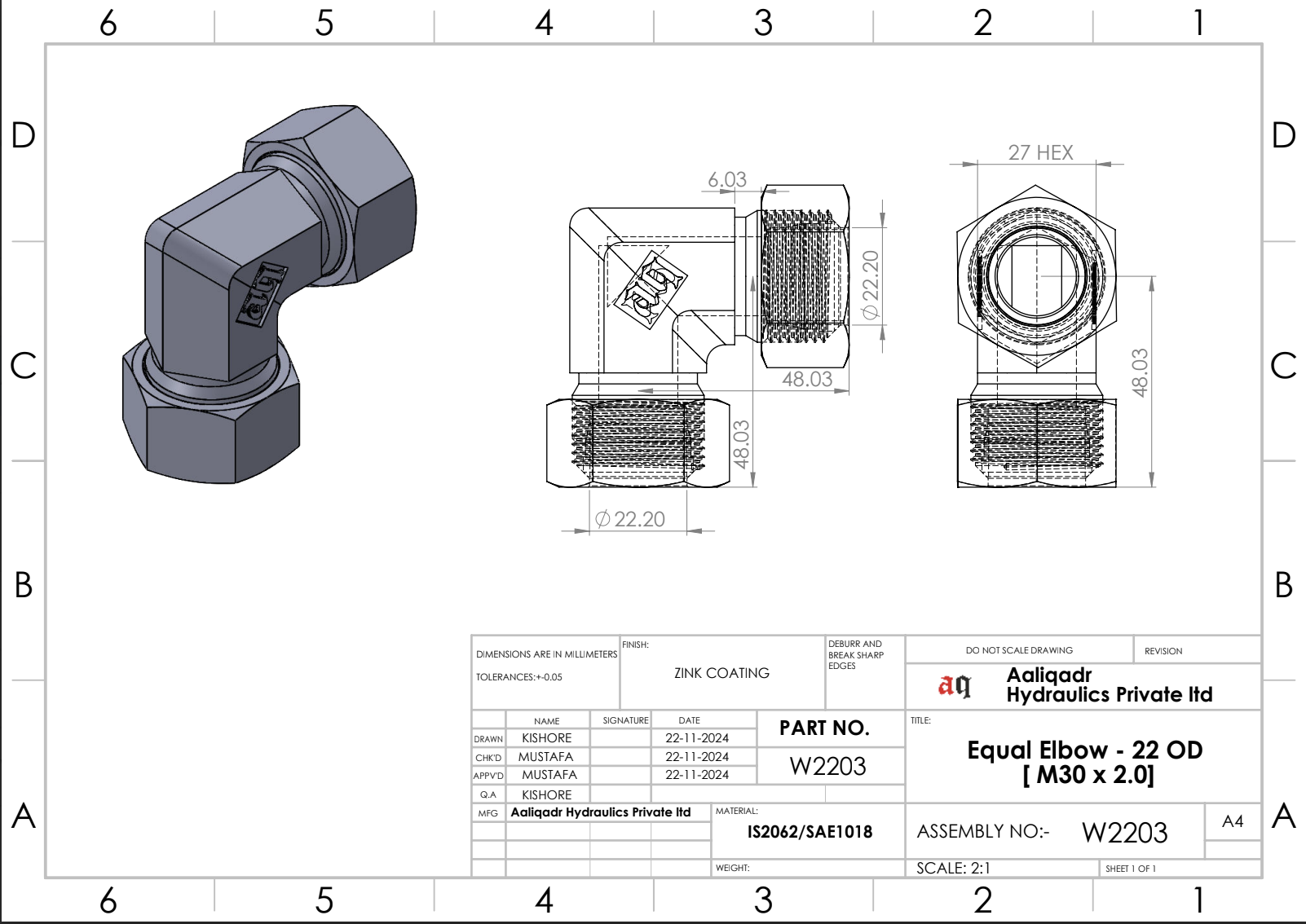

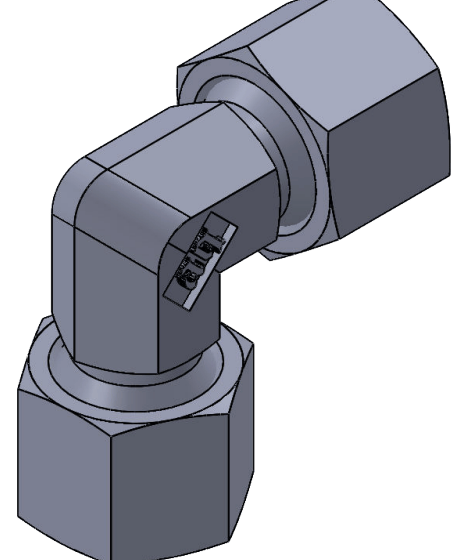

22L Equal Elbow.
Ferrule Lock Technology. 24° Flareless Fitting.
Technical Information.
22L Equal Elbow.
Maximum Operating
Pressure :
Application:
Connection Type:
Connection 4 size:
250 Bars of Dynamic Pressure [ 3,625 PSI Dynamic Pressure ] 25 MPa Dynamic Pressure.
Hydraulic Oil fluid power
Flareless
Flareless Bite Type
Material of Construction:
Connection Tube Diameter:
Brand:
Steel [ SAE 1018 ], Stainless Steel 304 / 316. Zinc Coated for CS.
22 mm OD
Threading Size :
M30 x 2.0 [thread pitch] - nut & body

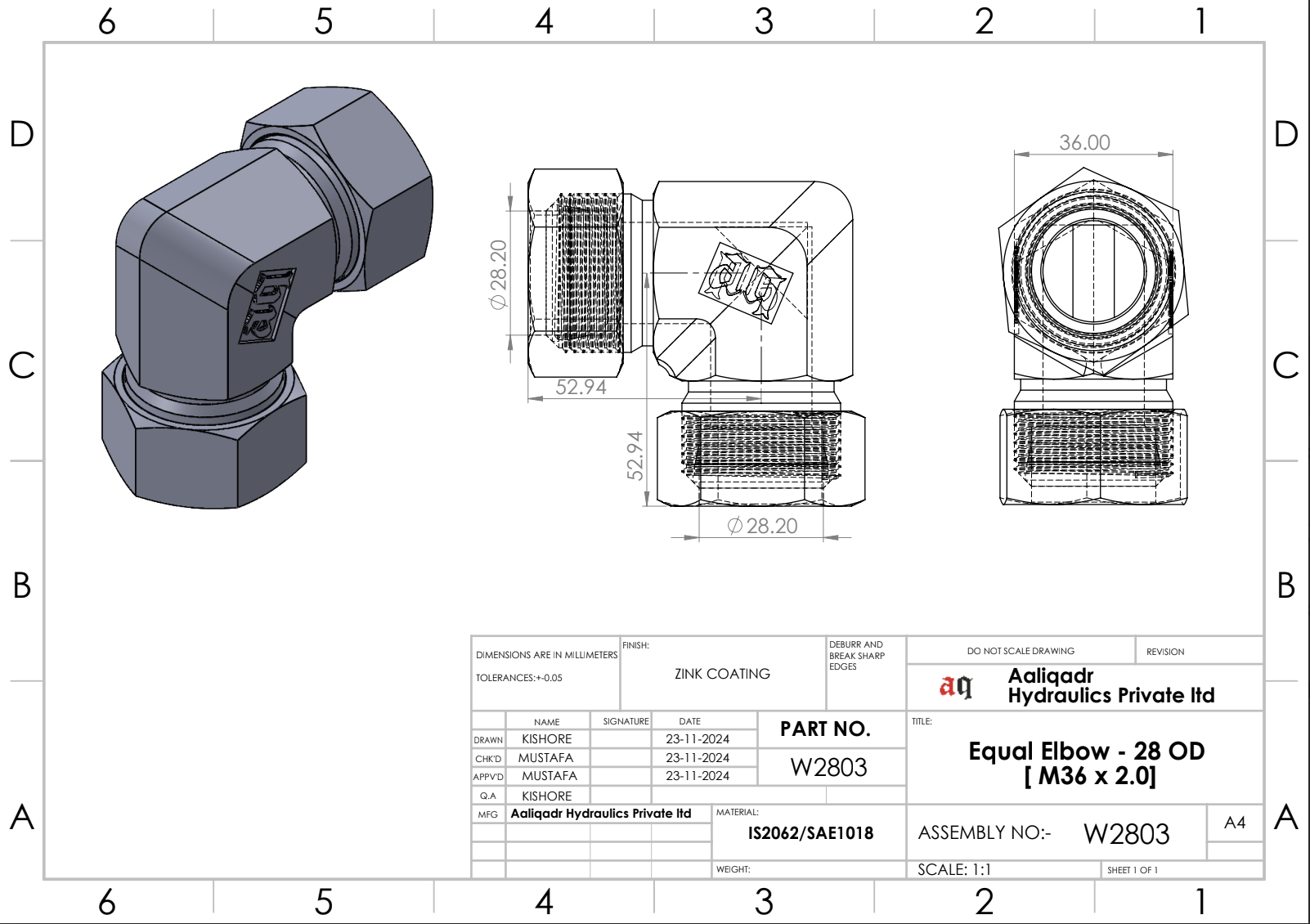

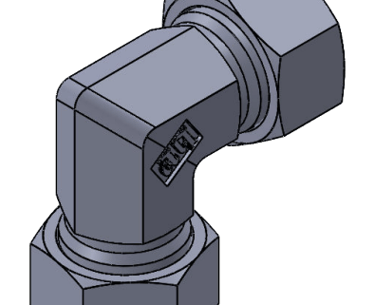

28L Equal Elbow.
Ferrule Lock Technology. 24° Flareless Fitting.
Technical Information.
28L Equal Elbow.
Maximum Operating
Pressure :
Application:
Connection Type:
Connection 4 size:
250 Bars of Dynamic Pressure [ 3,625 PSI Dynamic Pressure ] 25 MPa Dynamic Pressure.
Hydraulic Oil fluid power
Flareless
Flareless Bite Type
Material of Construction:
Connection Tube Diameter:
Brand:
Steel [ SAE 1018 ], Stainless Steel 304 / 316. Zinc Coated for CS.
28 mm OD
Threading Size :
M36 x 2.0 [thread pitch] - nut & body

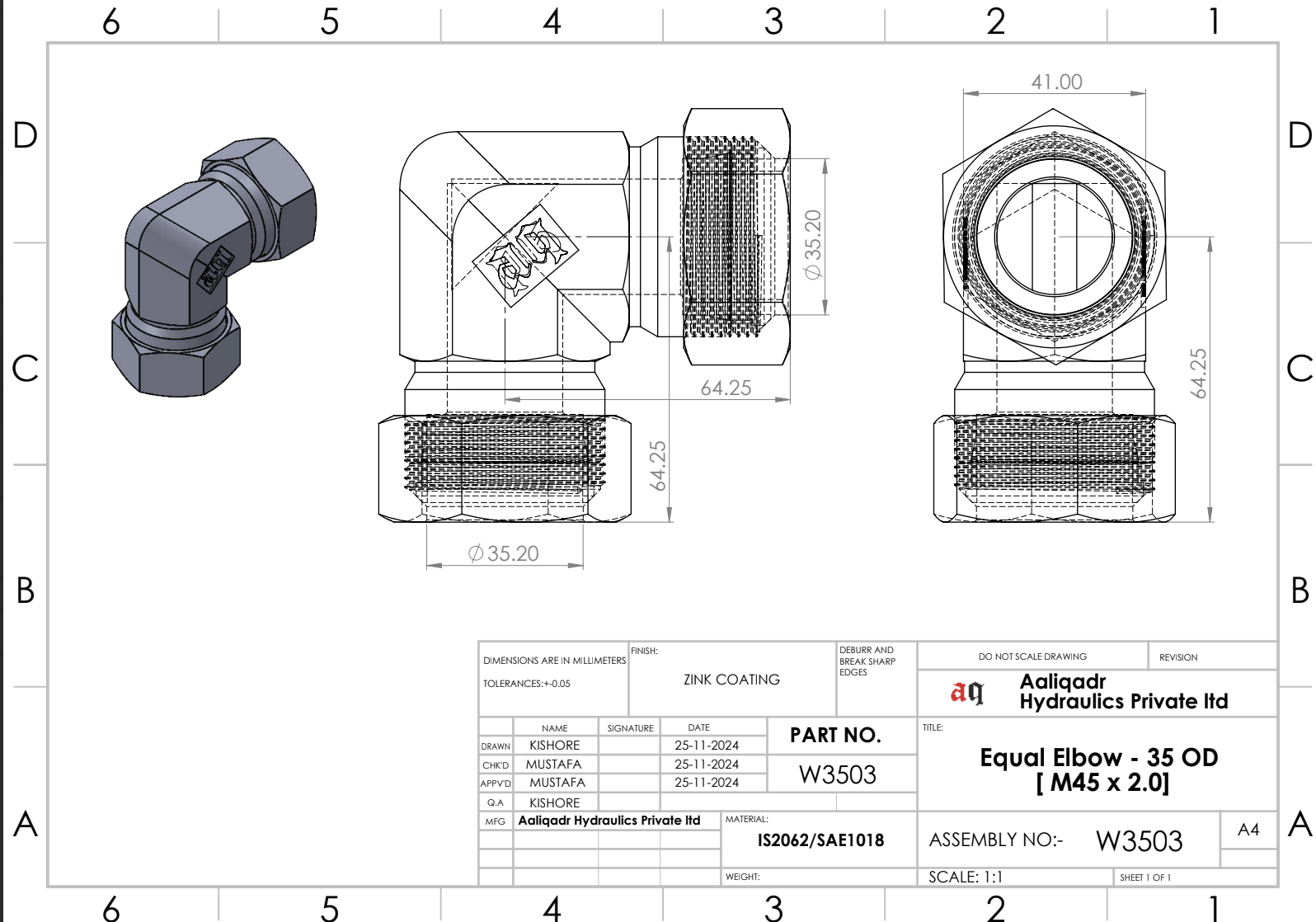

35L Equal Elbow.
Ferrule Lock Technology. 24° Flareless Fitting.
Technical Information.
35L Equal Elbow.
Maximum Operating
Pressure :
Application:
Connection Type:
Connection 4 size:
250 Bars of Dynamic Pressure [ 3,625 PSI Dynamic Pressure ] 25 MPa Dynamic Pressure.
Hydraulic Oil fluid power
Flareless
Flareless Bite Type
Material of Construction:
Connection Tube Diameter:
Brand:
Steel [ SAE 1018 ], Stainless Steel 304 / 316. Zinc Coated for CS.
35 mm OD
Threading Size :
M45 x 2.0 [thread pitch] - nut & body

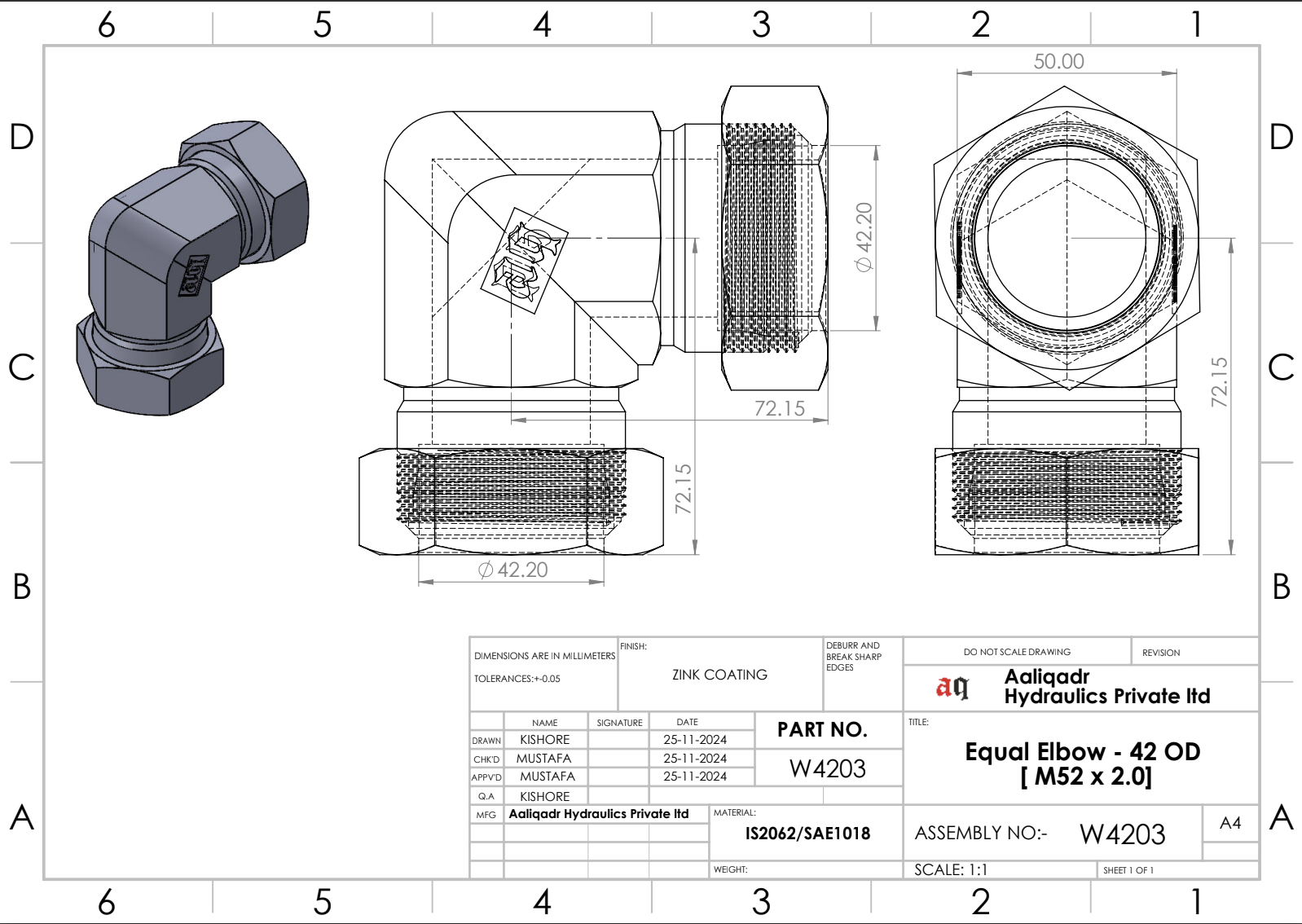

42L Equal Elbow.
Ferrule Lock Technology. 24° Flareless Fitting.
Technical Information.
42L Equal Elbow.
Maximum Operating
Pressure :
Application:
Connection Type:
Connection 4 size:
250 Bars of Dynamic Pressure [ 3,625 PSI Dynamic Pressure ] 25 MPa Dynamic Pressure.
Hydraulic Oil fluid power
Flareless
Flareless Bite Type
Material of Construction:
Connection Tube Diameter:
Brand:
Steel [ SAE 1018 ], Stainless Steel 304 / 316. Zinc Coated for CS.
42 mm OD
Threading Size :
M52 x 2.0 [thread pitch] - nut & body
