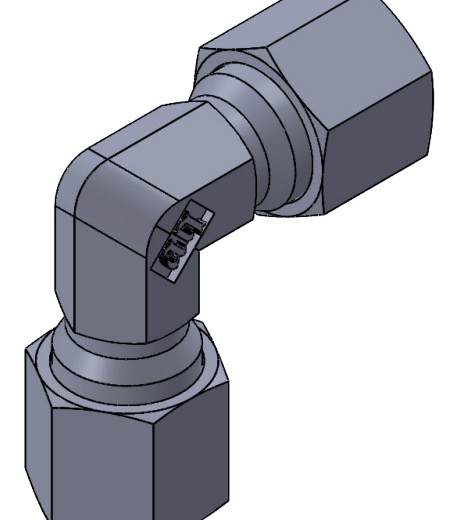

Equal Elbow [ Elbow - Union ] Series : S [ High pressure ] — W04
Introducing the paramount in tube-to-tube connectors! Our reputation is forged on the exceptional quality we offer. What sets us apart is our unwavering commitment to design and efficiency, ensuring top-tier performance. We aren't just good; we're the best at what we do. What makes us truly stand out is our relentless pursuit of improvement. With us, you're not just getting quality – you're getting the absolute best. When it comes to tube connectors, choose the brand that doesn't settle for good, but constantly strives to be better. Choose us.

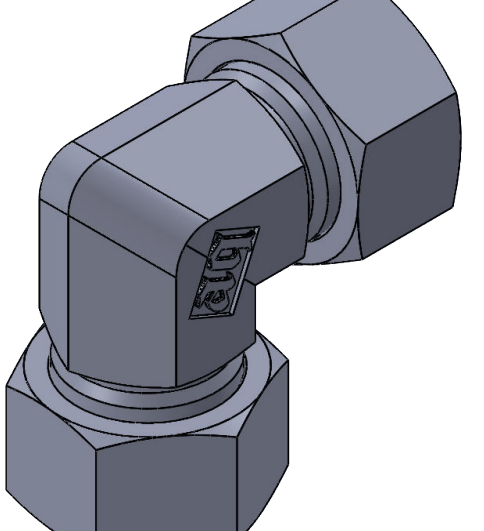

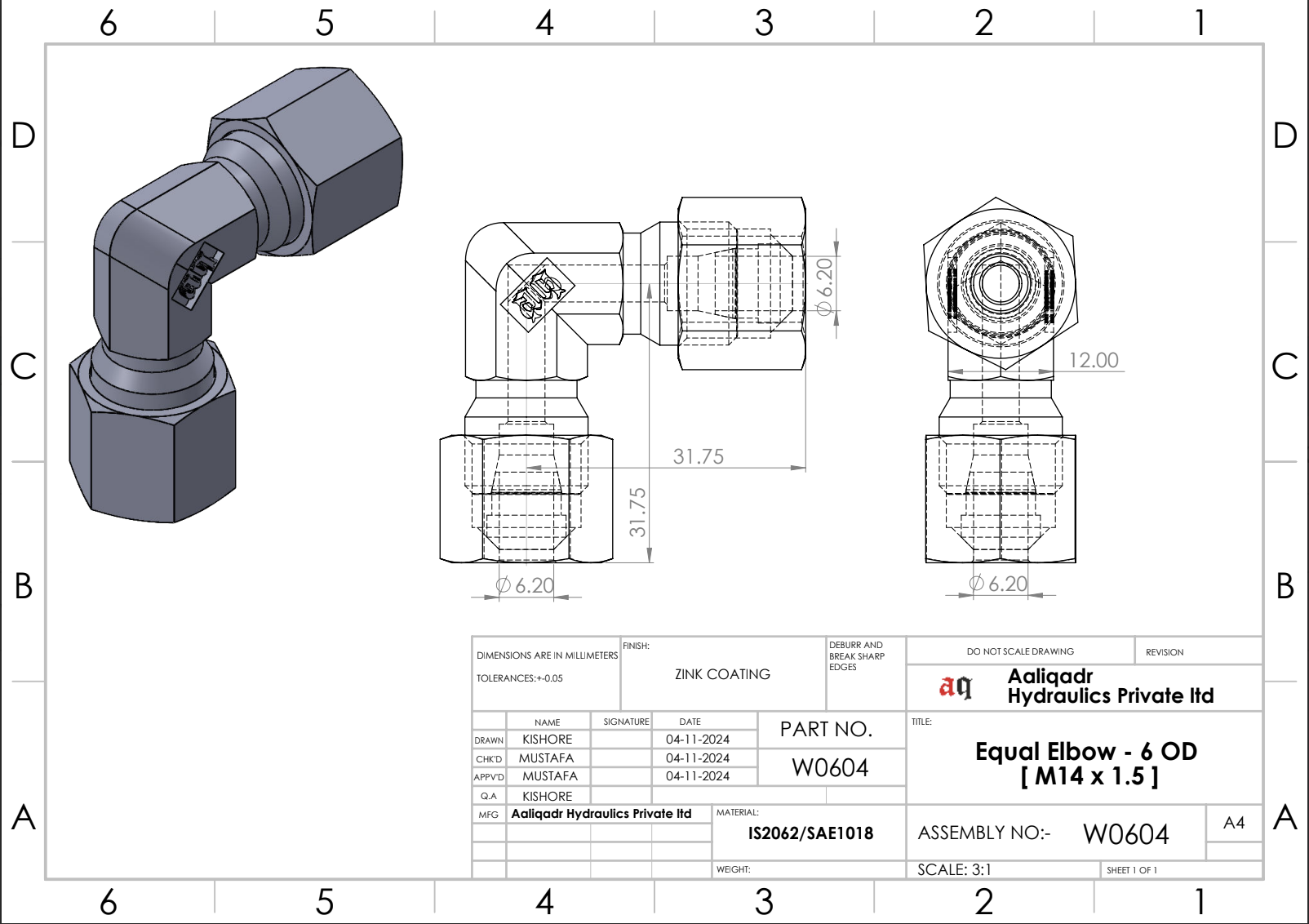

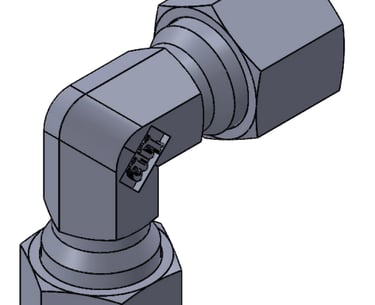

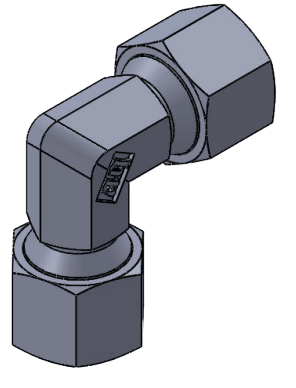

6S Equal Elbow.
Ferrule Lock Technology. 24° Flareless Fitting.
Technical Information.
6S Equal Elbow.
Maximum Operating
Pressure :
Application:
Connection Type:
Connection 4 size:
700 Bars of Dynamic Pressure [ 10,000 PSI Dynamic Pressure ] 70 MPa Dynamic Pressure.
Hydraulic Oil fluid power
Flareless
Flareless Bite Type
Material of Construction:
Connection Tube Diameter:
Brand:
Steel [ SAE 1018 ], Stainless Steel 304 / 316. Zinc Coated for CS.
6 mm OD
Threading Size :
M14 x 1.5 [thread pitch] - nut & body

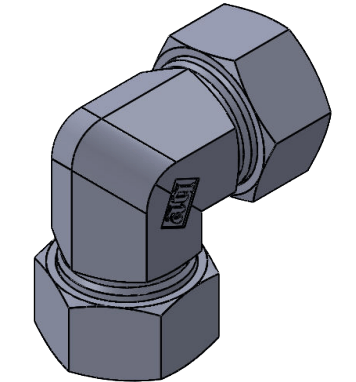

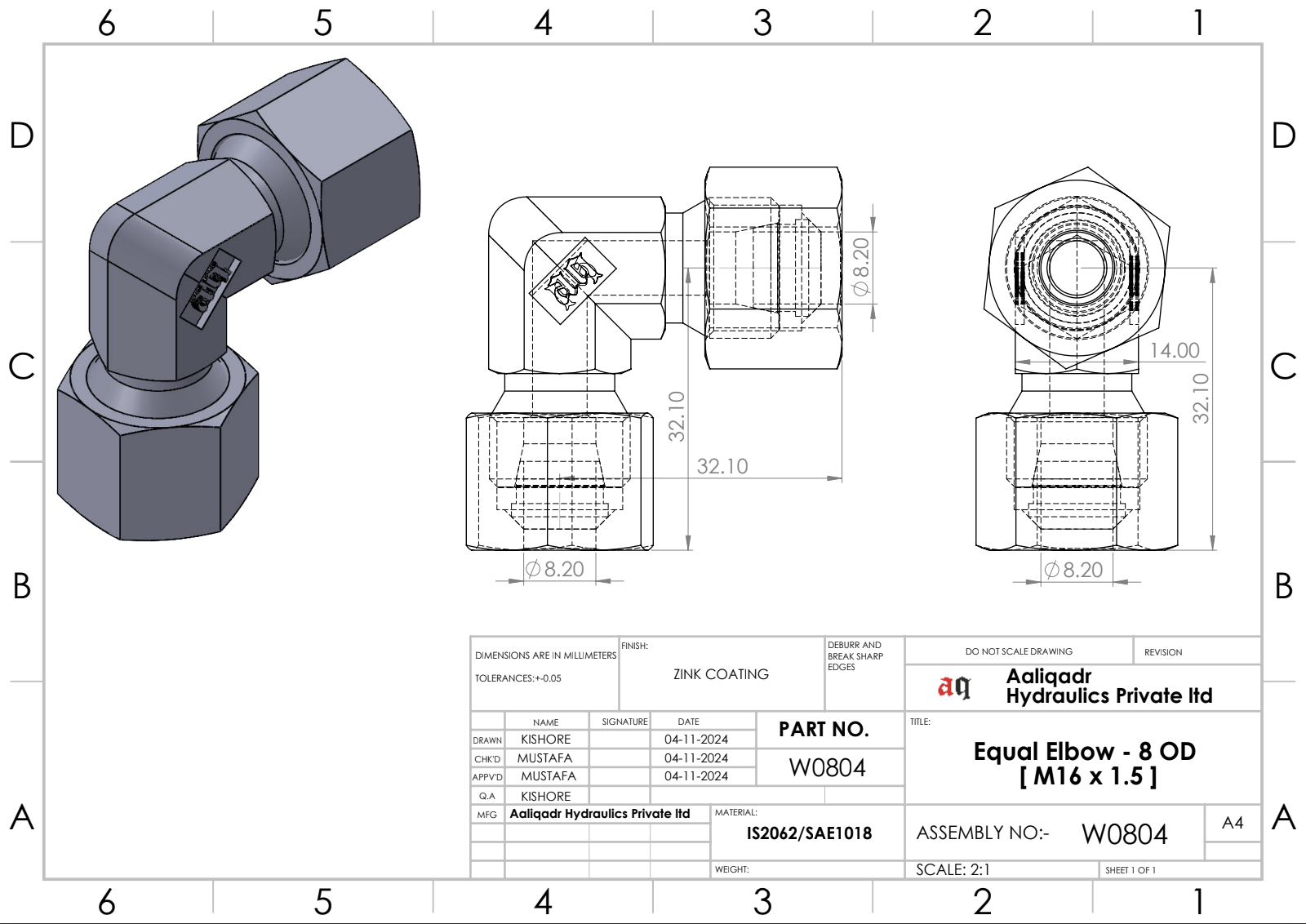

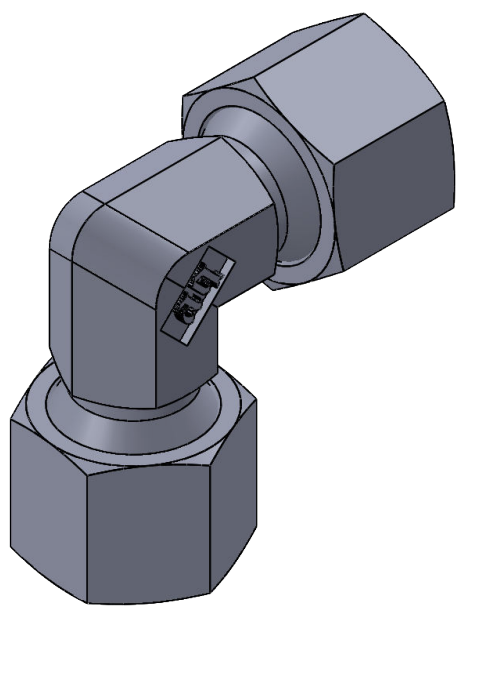

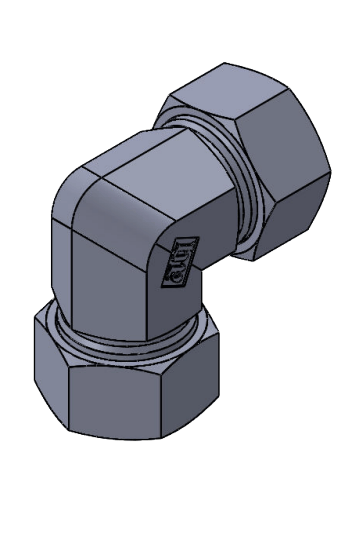

8S Equal Elbow.
Ferrule Lock Technology. 24° Flareless Fitting.
Technical Information.
8S Equal Elbow.
Maximum Operating
Pressure :
Application:
Connection Type:
Connection 4 size:
700 Bars of Dynamic Pressure [ 10,000 PSI Dynamic Pressure ] 70 MPa Dynamic Pressure.
Hydraulic Oil fluid power
Flareless
Flareless Bite Type
Material of Construction:
Connection Tube Diameter:
Brand:
Steel [ SAE 1018 ], Stainless Steel 304 / 316. Zinc Coated for CS.
8 mm OD
Threading Size :
M16 x 1.5 [thread pitch] - nut & body

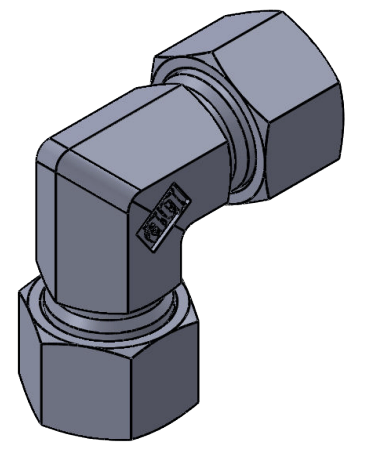

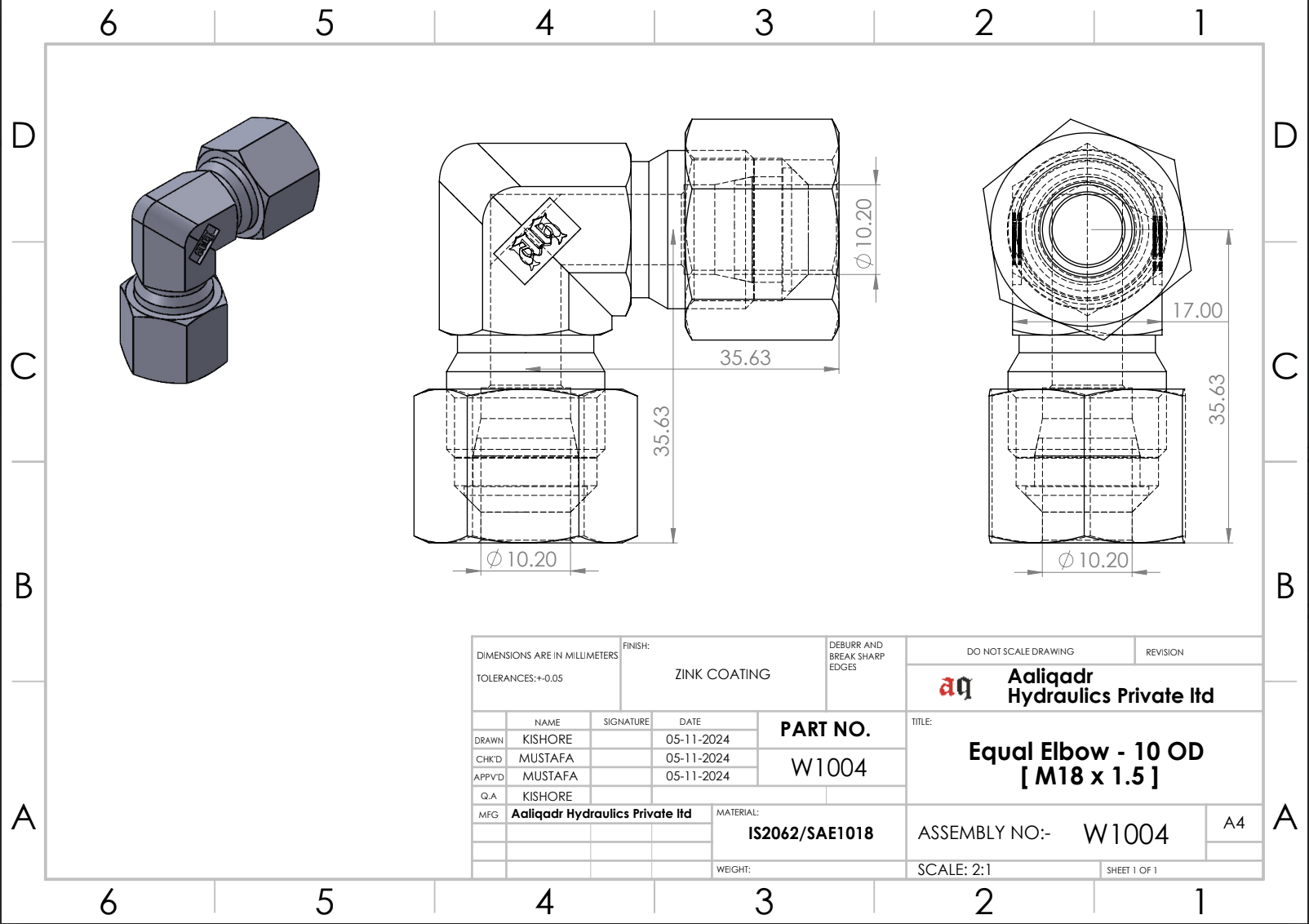

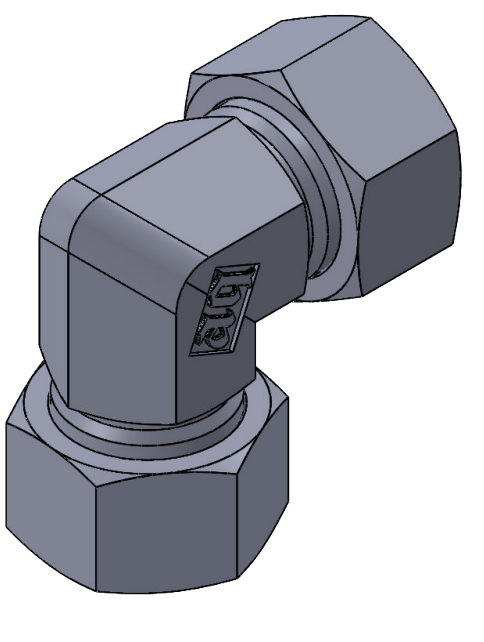

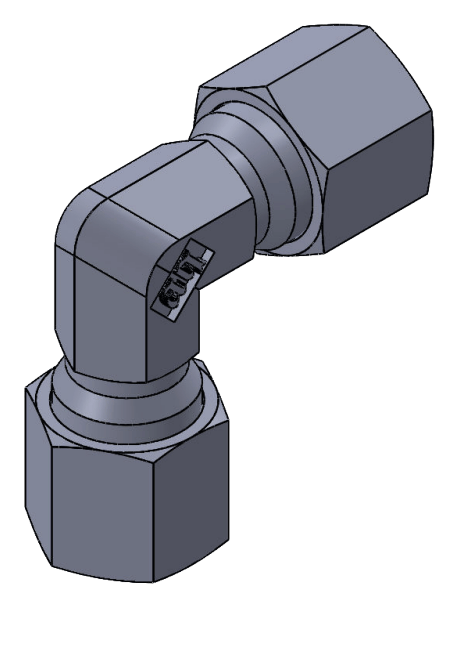

10S Equal Elbow.
Ferrule Lock Technology. 24° Flareless Fitting.
Technical Information.
10S Equal Elbow.
Maximum Operating
Pressure :
Application:
Connection Type:
Connection 4 size:
700 Bars of Dynamic Pressure [ 10,000 PSI Dynamic Pressure ] 70 MPa Dynamic Pressure.
Hydraulic Oil fluid power
Flareless
Flareless Bite Type
Material of Construction:
Connection Tube Diameter:
Brand:
Steel [ SAE 1018 ], Stainless Steel 304 / 316. Zinc Coated for CS.
10 mm OD
Threading Size :
M18 x 1.5 [thread pitch] - nut & body

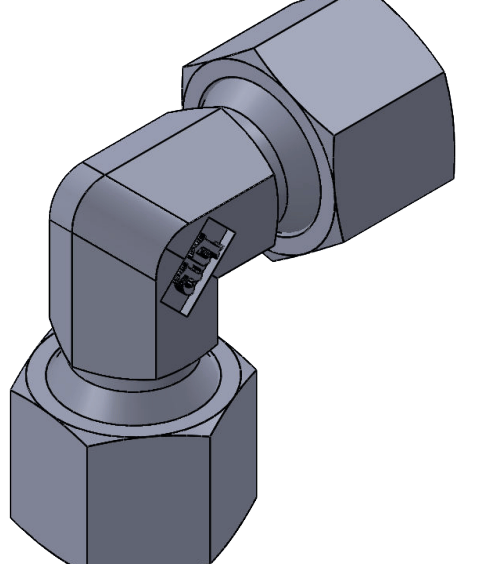

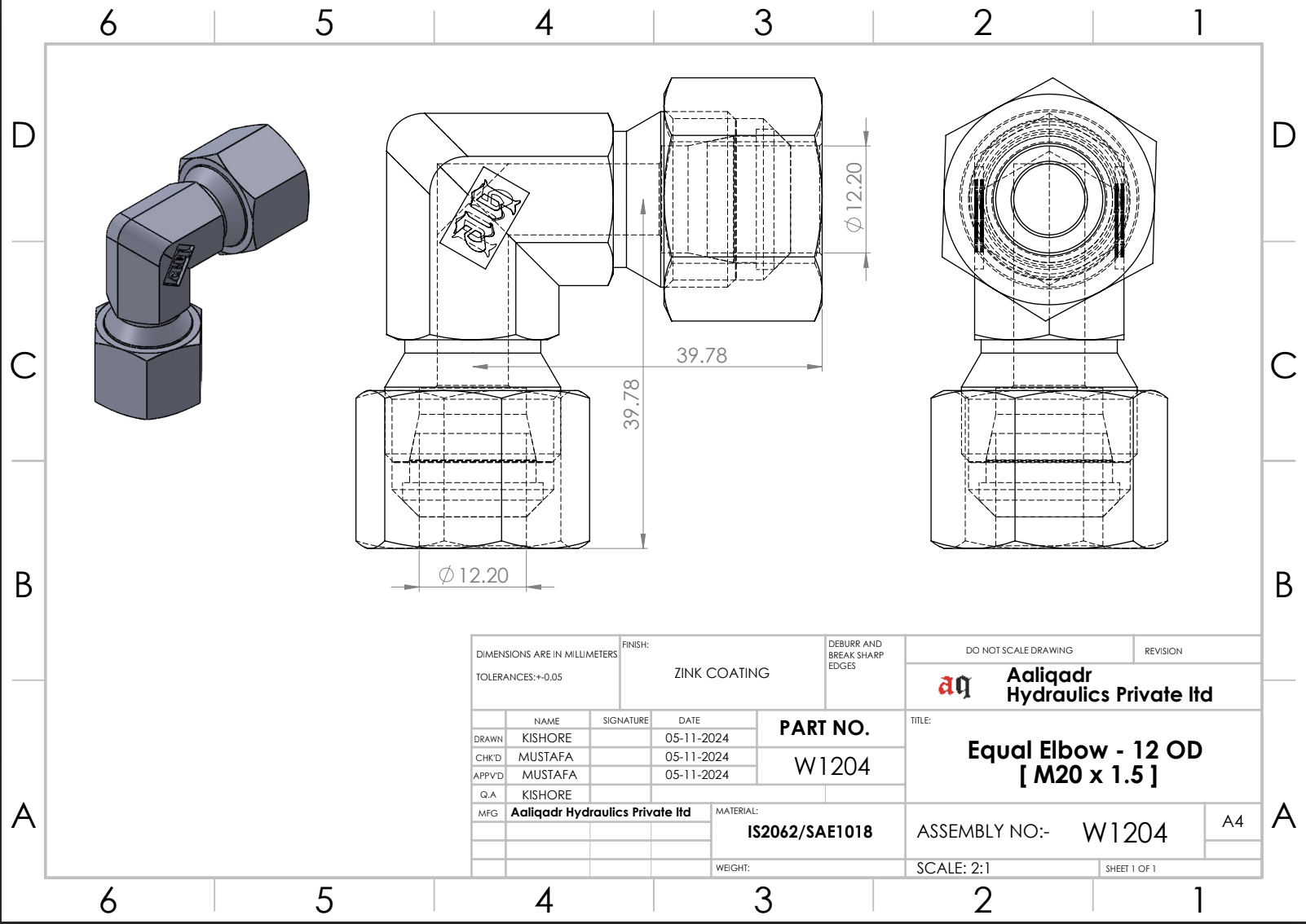

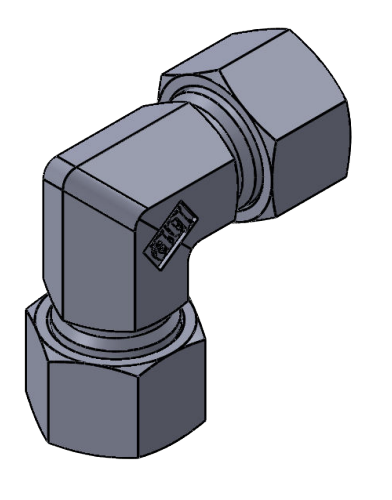

12S Equal Elbow.
Ferrule Lock Technology. 24° Flareless Fitting.
Technical Information.
12S Equal Elbow.
Maximum Operating
Pressure :
Application:
Connection Type:
Connection 4 size:
700 Bars of Dynamic Pressure [ 10,000 PSI Dynamic Pressure ] 70 MPa Dynamic Pressure.
Hydraulic Oil fluid power
Flareless
Flareless Bite Type
Material of Construction:
Connection Tube Diameter:
Brand:
Steel [ SAE 1018 ], Stainless Steel 304 / 316. Zinc Coated for CS.
12 mm OD
Threading Size :
M20 x 1.5 [thread pitch] - nut & body

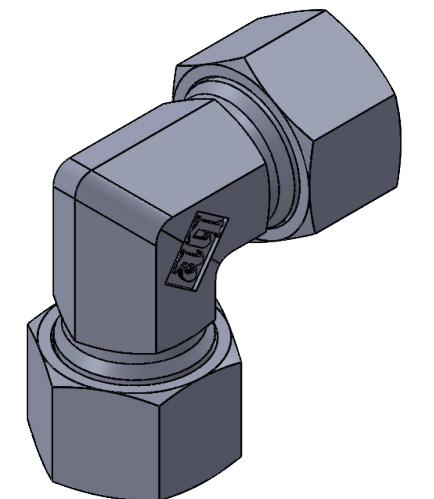

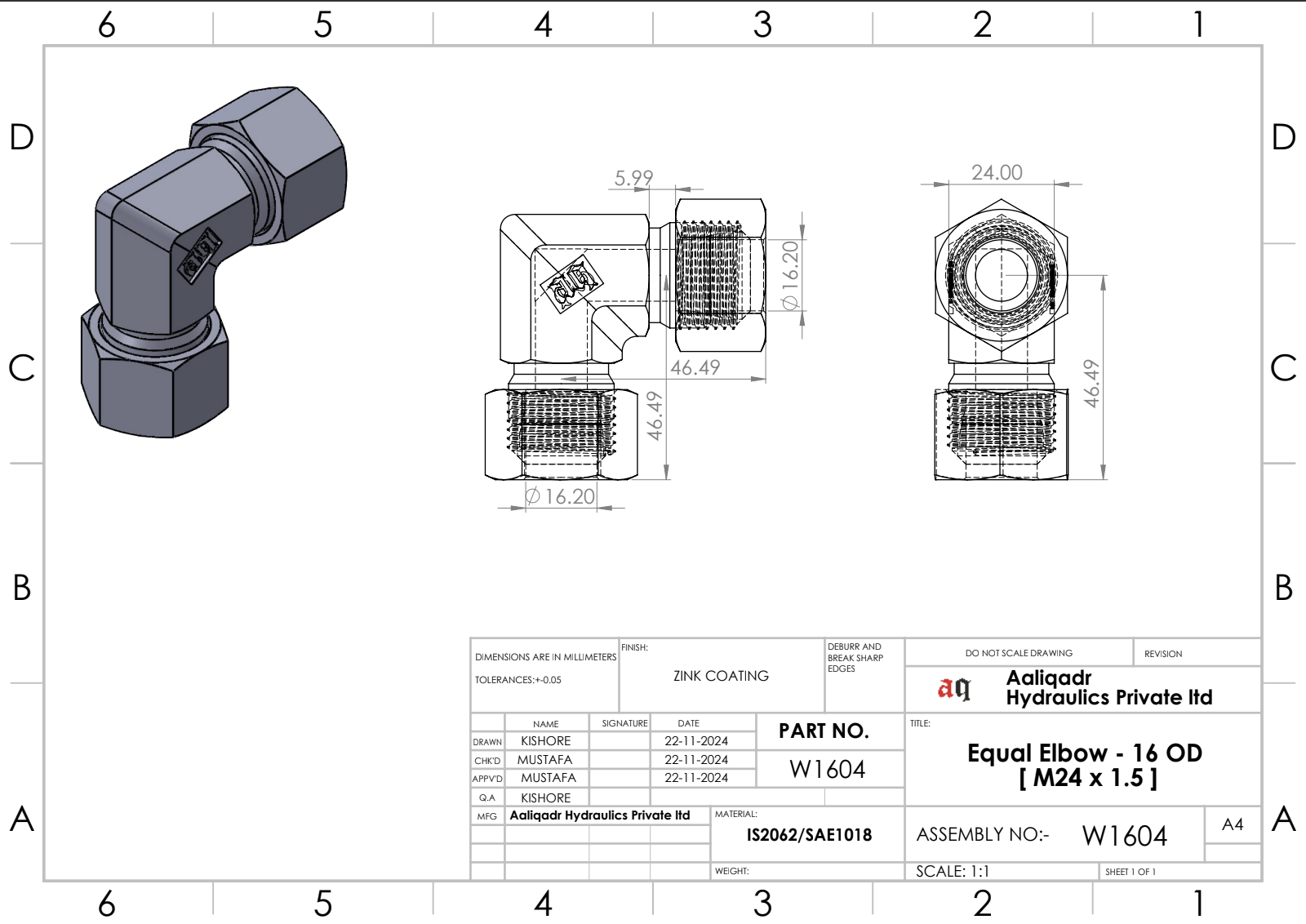

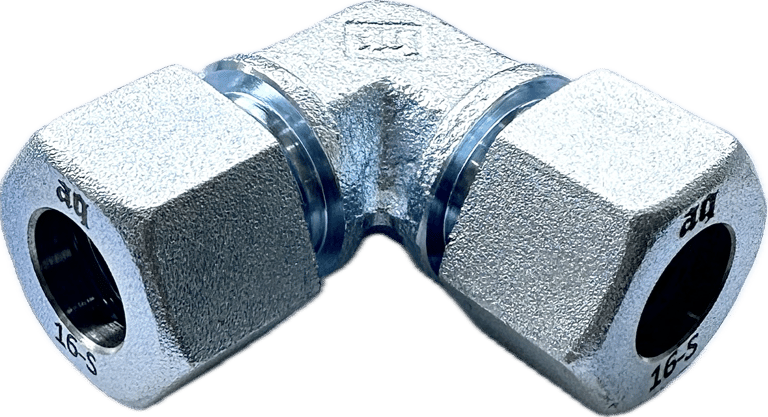

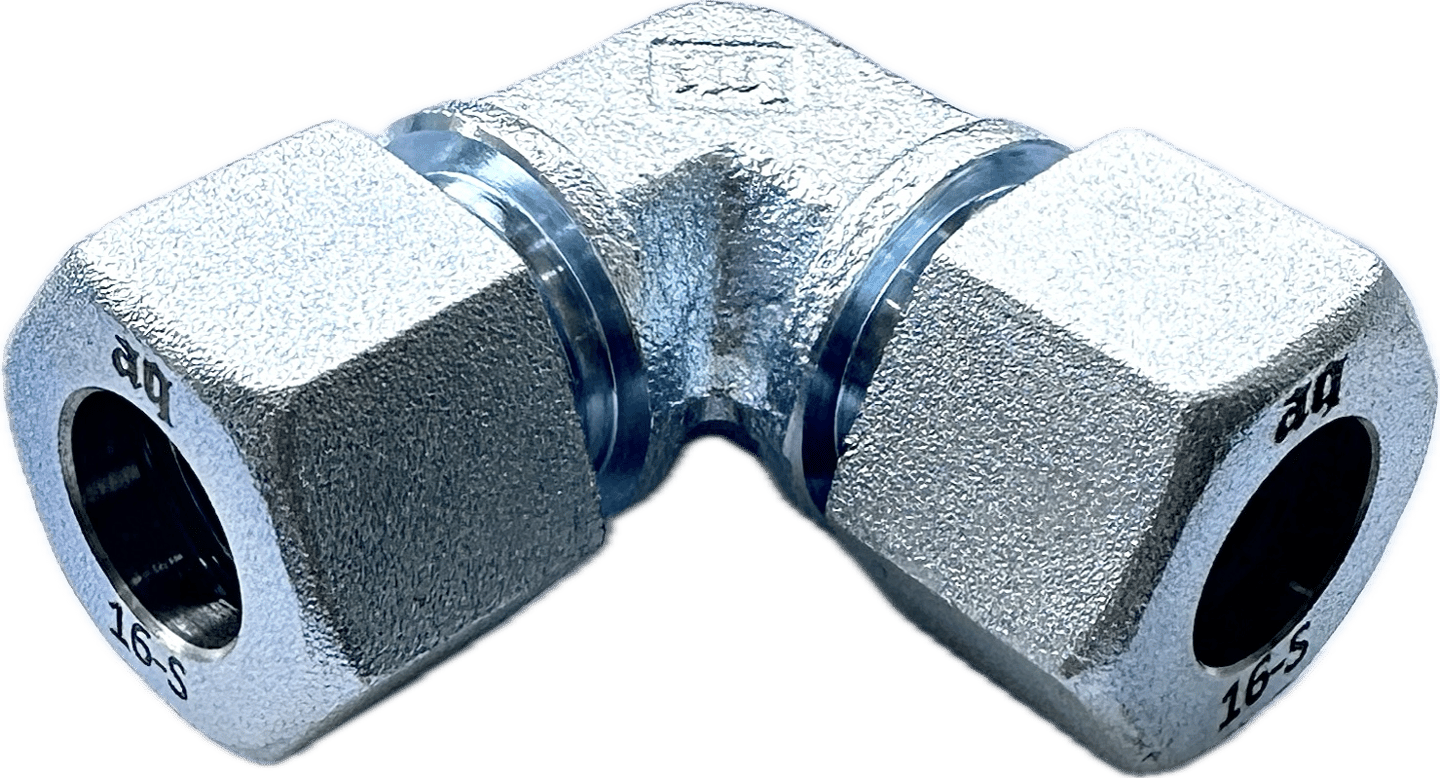

16S Equal Elbow.
Ferrule Lock Technology. 24° Flareless Fitting.
Technical Information.
16S Equal Elbow.
Maximum Operating
Pressure :
Application:
Connection Type:
Connection 4 size:
350 Bars of Dynamic Pressure [ 5,000 PSI Dynamic Pressure ] 35 MPa Dynamic Pressure.
Hydraulic Oil fluid power
Flareless
Flareless Bite Type
Material of Construction:
Connection Tube Diameter:
Brand:
Steel [ SAE 1018 ], Stainless Steel 304 / 316. Zinc Coated for CS.
16 mm OD
Threading Size :
M24 x 1.5 [thread pitch] - nut & body

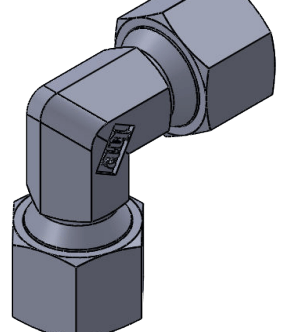

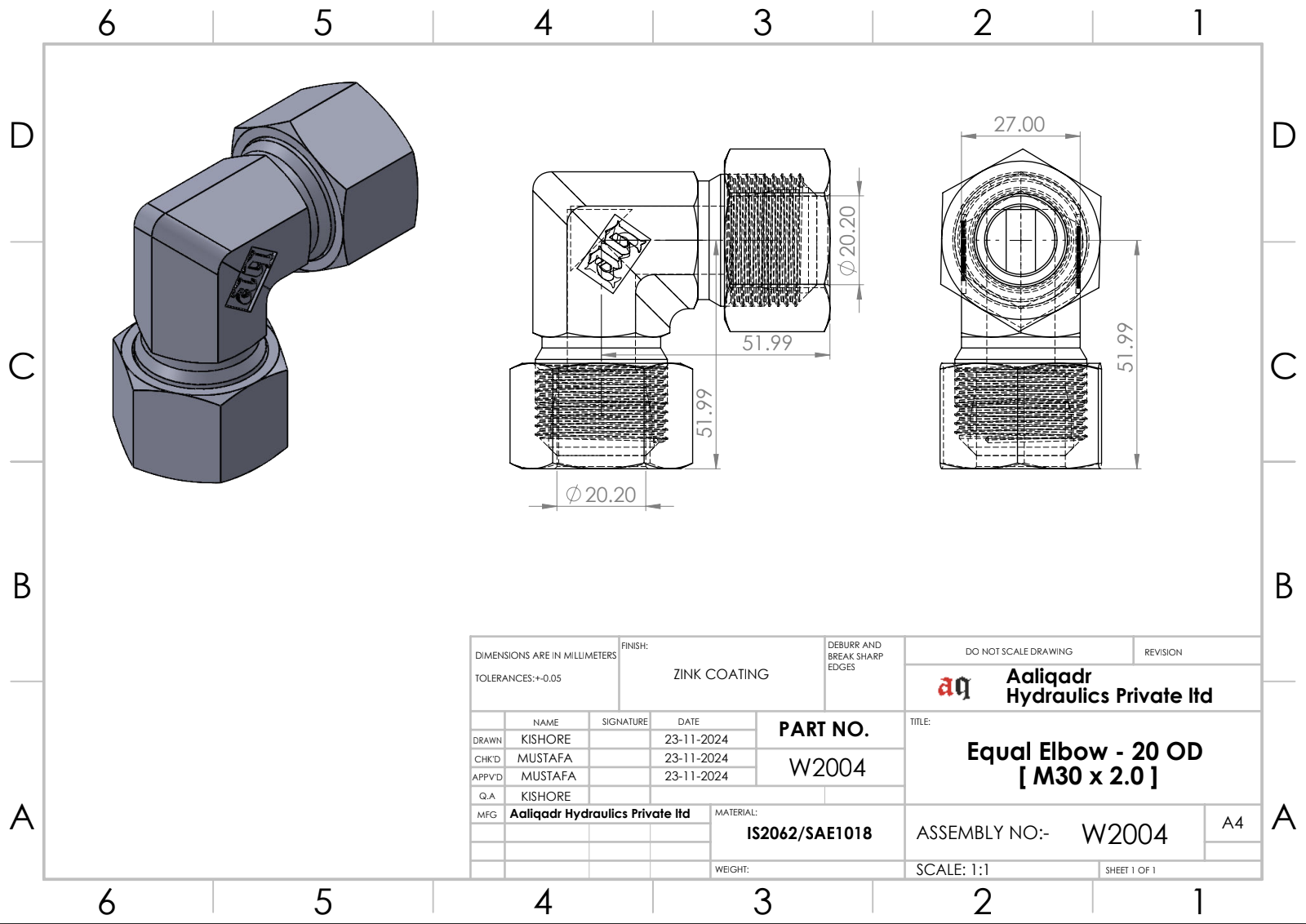

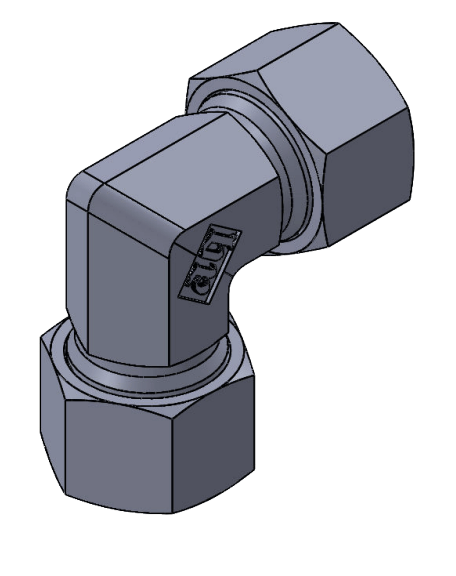

20S Equal Elbow.
Ferrule Lock Technology. 24° Flareless Fitting.
Technical Information.
20S Equal Elbow.
Maximum Operating
Pressure :
Application:
Connection Type:
Connection 4 size:
350 Bars of Dynamic Pressure [ 5,000 PSI Dynamic Pressure ] 28 MPa Dynamic Pressure.
Hydraulic Oil fluid power
Flareless
Flareless Bite Type
Material of Construction:
Connection Tube Diameter:
Brand:
Steel [ SAE 1018 ], Stainless Steel 304 / 316. Zinc Coated for CS.
20 mm OD
Threading Size :
M30 x 2.0 [thread pitch] - nut & body

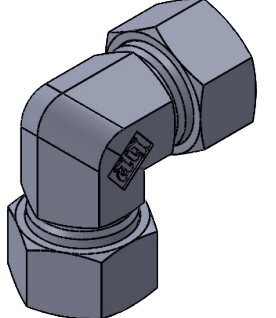

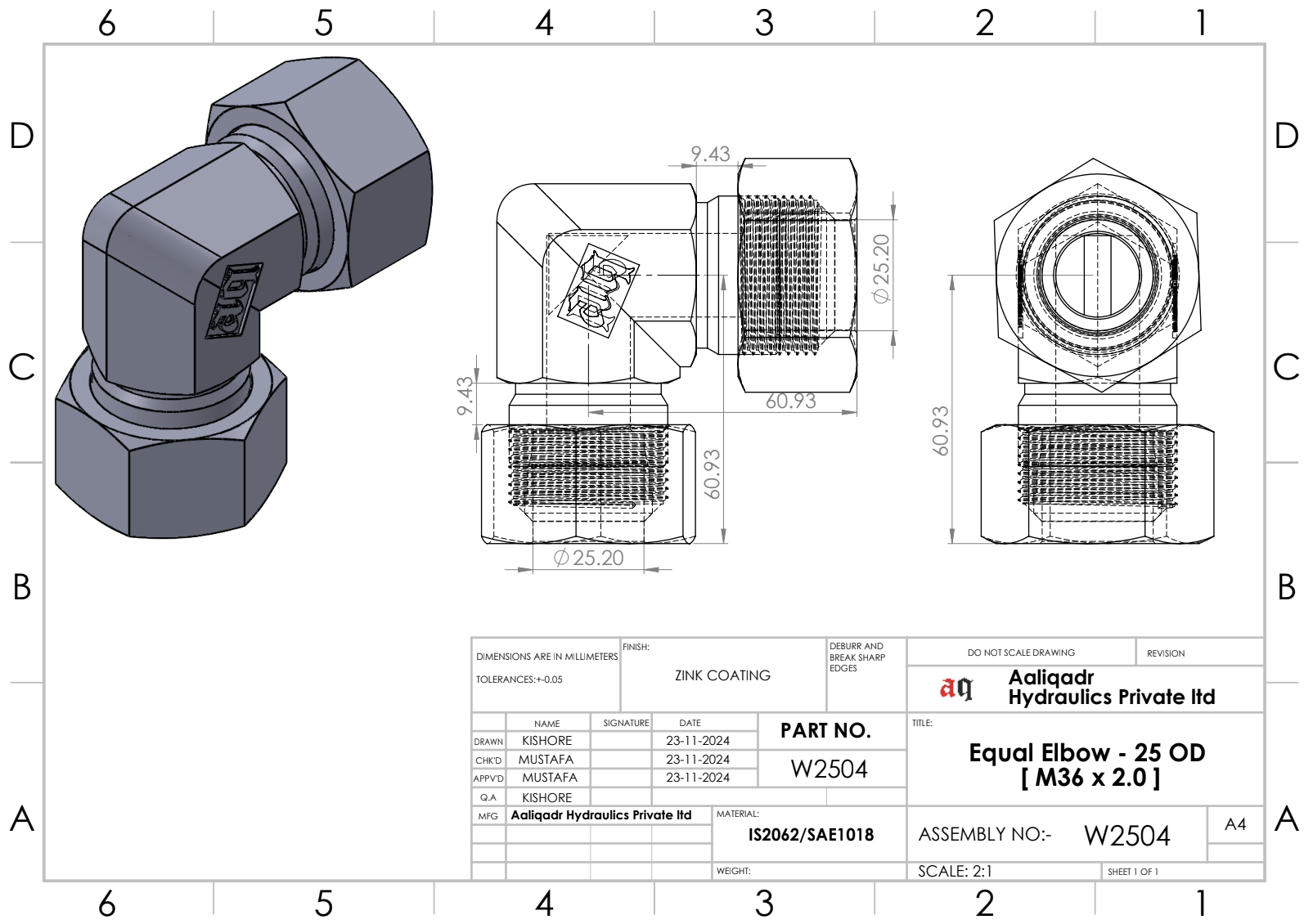

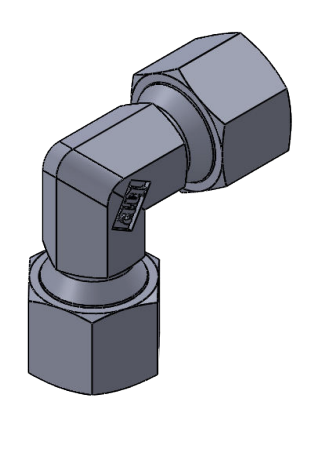

25S Equal Elbow.
Ferrule Lock Technology. 24° Flareless Fitting.
Technical Information.
25S Equal Elbow.
Maximum Operating
Pressure :
Application:
Connection Type:
Connection 4 size:
350 Bars of Dynamic Pressure [ 5,000 PSI Dynamic Pressure ] 35 MPa Dynamic Pressure.
Hydraulic Oil fluid power
Flareless
Flareless Bite Type
Material of Construction:
Connection Tube Diameter:
Brand:
Steel [ SAE 1018 ], Stainless Steel 304 / 316. Zinc Coated for CS.
25 mm OD
Threading Size :
M36 x 2.0 [thread pitch] - nut & body

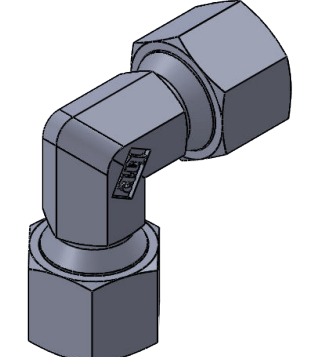

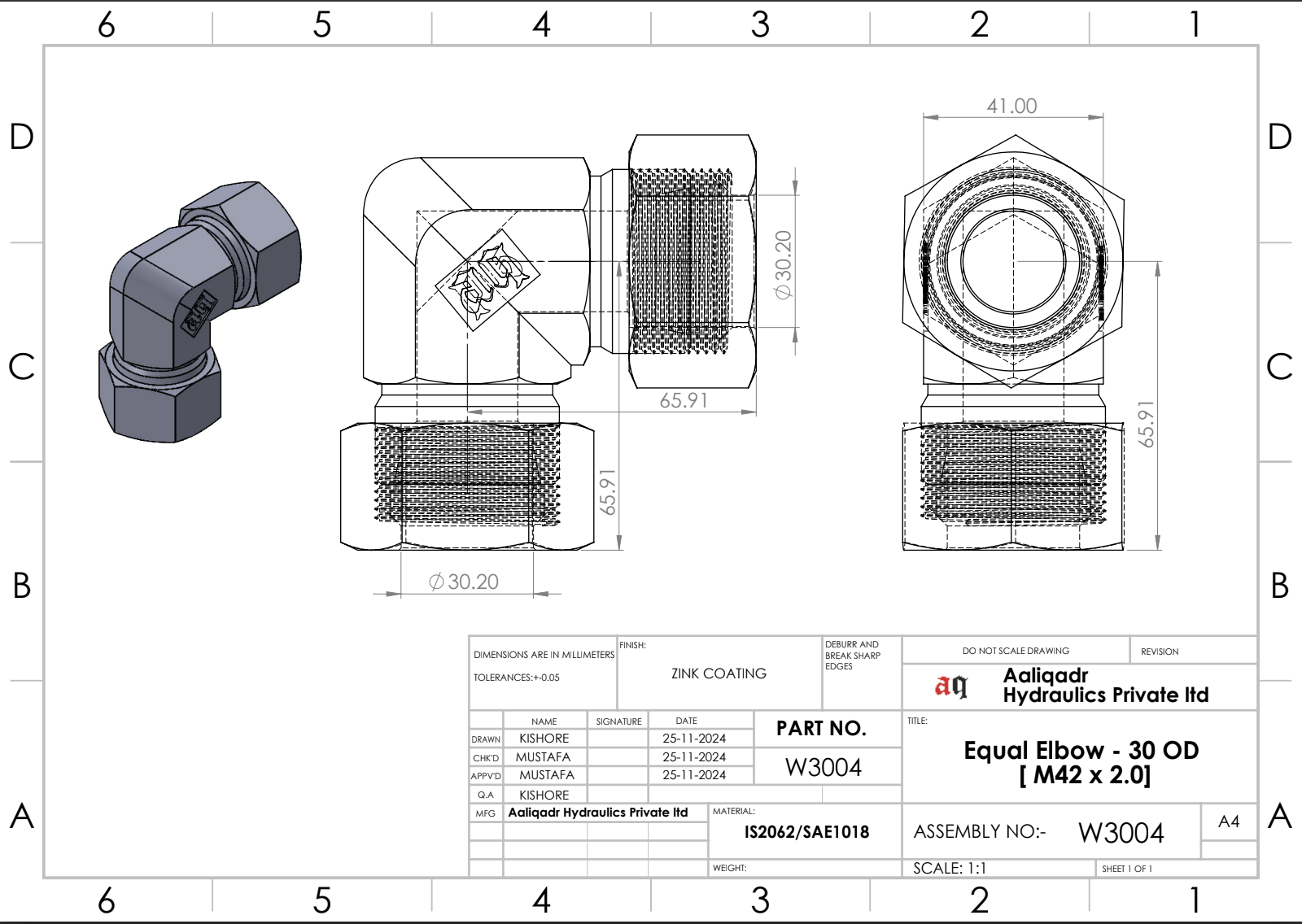

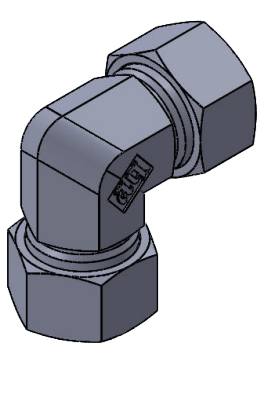

30S Equal Elbow.
Ferrule Lock Technology. 24° Flareless Fitting.
Technical Information.
30S Equal Elbow.
Maximum Operating
Pressure :
Application:
Connection Type:
Connection 4 size:
280 Bars of Dynamic Pressure [ 4,100 PSI Dynamic Pressure ] 28 MPa Dynamic Pressure.
Hydraulic Oil fluid power
Flareless
Flareless Bite Type
Material of Construction:
Connection Tube Diameter:
Brand:
Steel [ SAE 1018 ], Stainless Steel 304 / 316. Zinc Coated for CS.
30 mm OD
Threading Size :
M42 x 2.0 [thread pitch] - nut & body
38S Equal Elbow.
Ferrule Lock Technology. 24° Flareless Fitting.
Technical Information.
38S Equal Elbow.
Maximum Operating
Pressure :
Application:
Connection Type:
Connection 4 size:
280 Bars of Dynamic Pressure [ 4,100 PSI Dynamic Pressure ] 28 MPa Dynamic Pressure.
Hydraulic Oil fluid power
Flareless
Flareless Bite Type
Material of Construction:
Connection Tube Diameter:
Brand:
Steel [ SAE 1018 ], Stainless Steel 304 / 316. Zinc Coated for CS.
38 mm OD
Threading Size :
M52 x 2.0 [thread pitch] - nut & body
